Swift-XRT Survey of Fermi Unassociated Sources

These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.
Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

4FGL J2323.1+2040

Field

Detected Excesses

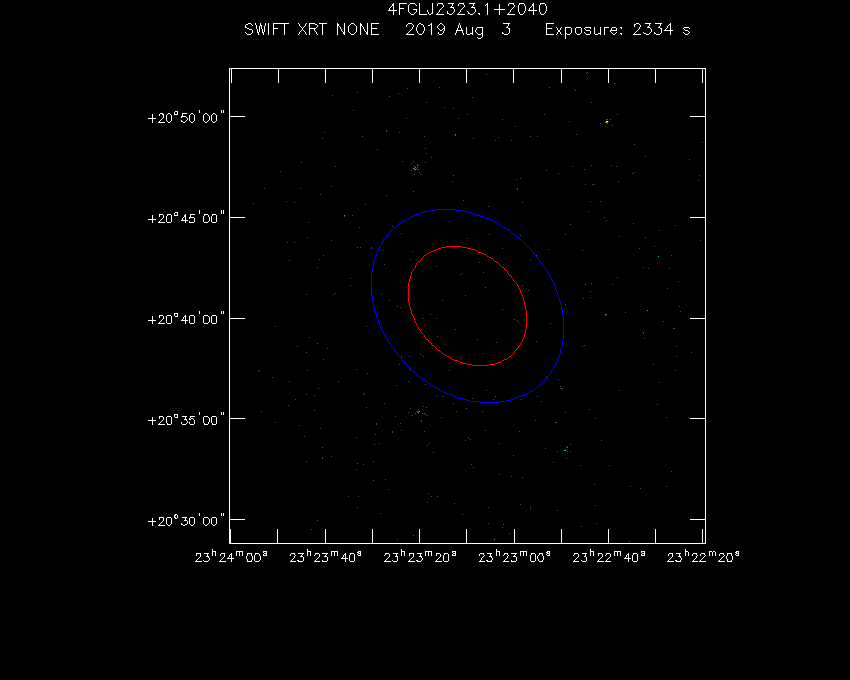

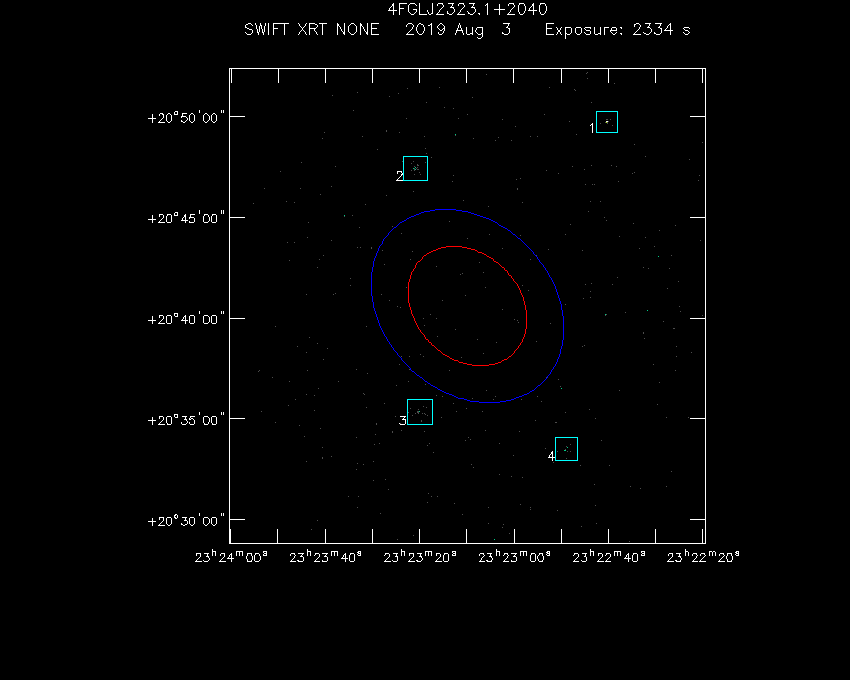

Swift-XRT image of the field for 4FGL J2323.1+2040 Swift-XRT detections in the field for 4FGL J2323.1+2040

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 23 22 40.25 +20 49 44.32 5.31 (2.3 ± 0.4) x 10-2 34 5.578 5.566
2 23 23 20.82 +20 47 26.41 5.20 (1.5 ± 0.3) x 10-2 34 5.559 5.250
3 23 23 19.93 +20 35 20.90 5.35 (1.4 ± 0.3) x 10-2 30 4.845 4.611
4 23 22 48.86 +20 33 30.55 5.89 (1.1 ± 0.2) x 10-2 22 4.465 4.345

X-Ray and Gamma Ray Catalogs

More Catalogs

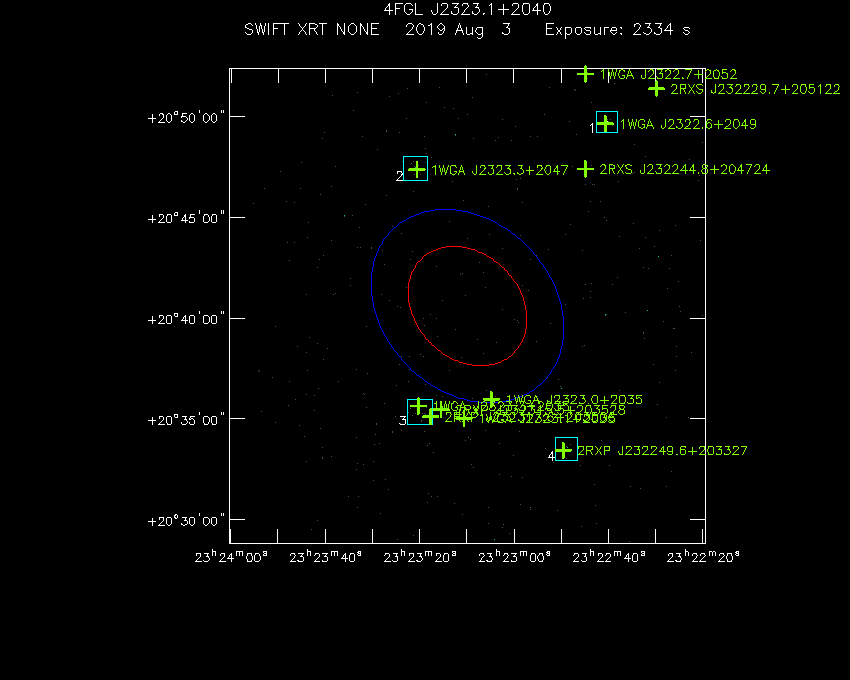

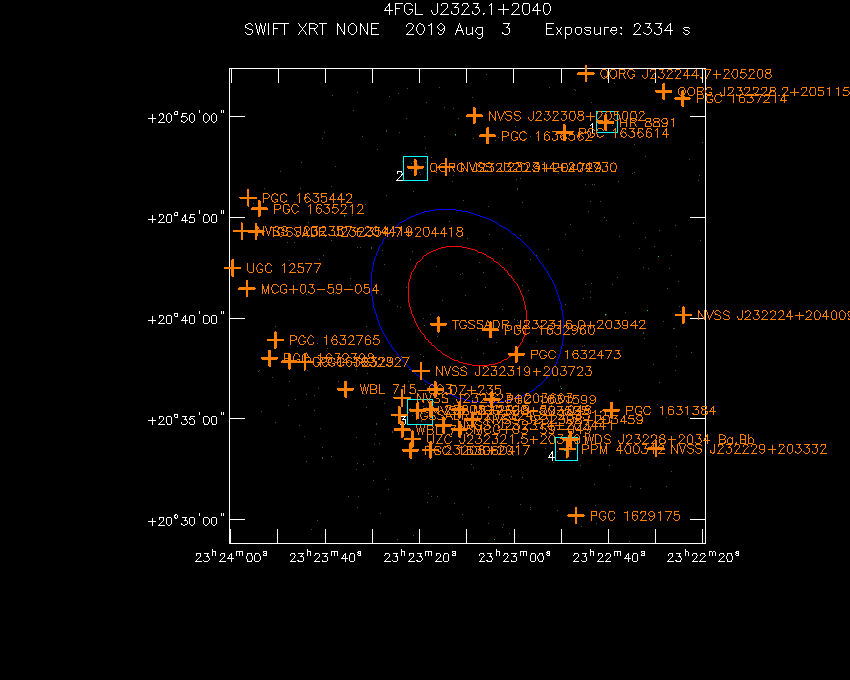

Swift-XRT image with known X-ray and gamma ray sources for 4FGL J2323.1+2040 Swift-XRT image with known radio, optical and UV sources for 4FGL J2323.1+2040

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 1WGA J2323.0+2035 23 23 04.80 +20 35 58.92 4.78 ROSAT
2RXP J232305.9+203552 23 23 05.88 +20 35 52.08 4.83 ROSAT
2 2RXP J232315.5+203528 23 23 15.46 +20 35 27.96 5.30 ROSAT
3 1WGA J2323.3+2035 23 23 20.30 +20 35 38.76 5.53 ROSAT
4 1WGA J2323.1+2035 23 23 10.61 +20 35 02.04 5.58 ROSAT
1RXS J232320.5+203533 23 23 20.50 +20 35 33.36 5.63 ROSAT
2RXS J232320.5+203531 23 23 20.54 +20 35 31.56 5.66 ROSAT
2RXS J232320.5+203531 23 23 20.54 +20 35 31.56 5.66 ROSAT
5 2RXP J232317.6+203506 23 23 17.64 +20 35 07.08 5.78 ROSAT
1WGA J2323.3+2035 23 23 19.61 +20 35 15.72 5.81 ROSAT
2RXP J232321.9+203521 23 23 21.91 +20 35 21.84 5.95 ROSAT
6 1WGA J2323.3+2047 23 23 20.59 +20 47 21.84 7.21 ROSAT
2RXP J232320.9+204723 23 23 20.86 +20 47 24.00 7.26 ROSAT
2RXP J232321.3+204723 23 23 21.26 +20 47 24.00 7.30 ROSAT
1WGA J2323.3+2047 23 23 20.59 +20 47 28.32 7.31 ROSAT
7 2RXP J232249.6+203327 23 22 49.56 +20 33 27.00 8.59 ROSAT
8 2RXS J232244.8+204724 23 22 44.83 +20 47 24.36 8.97 ROSAT
2RXS J232244.8+204724 23 22 44.83 +20 47 24.36 8.97 ROSAT
1WGA J2322.8+2033 23 22 48.10 +20 33 05.76 9.07 ROSAT
9 1WGA J2322.6+2049 23 22 40.61 +20 49 38.64 11.33 ROSAT
2RXP J232240.7+204942 23 22 40.66 +20 49 42.24 11.37 ROSAT
10 1WGA J2322.7+2052 23 22 44.81 +20 52 06.96 12.91 ROSAT
2RXP J232244.8+205210 23 22 44.76 +20 52 10.20 12.96 ROSAT
2RXP J232245.2+205216 23 22 45.17 +20 52 15.96 13.01 ROSAT
1WGA J2322.7+2052 23 22 44.11 +20 52 24.96 13.26 ROSAT
11 2RXS J232229.7+205122 23 22 29.74 +20 51 23.04 14.28 ROSAT
2RXS J232229.7+205122 23 22 29.74 +20 51 23.04 14.28 ROSAT
1WGA J2322.4+2051 23 22 28.20 +20 51 14.76 14.43 ROSAT
2RXP J232228.3+205118 23 22 28.27 +20 51 18.00 14.46 ROSAT
2RXP J232228.3+205118 23 22 28.27 +20 51 18.00 14.46 ROSAT
1WGA J2322.4+2051 23 22 27.79 +20 51 25.56 14.62 ROSAT

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 PGC 1632960 23 23 04.99 +20 39 25.92 1.64 PGC2003
2 TGSSADR J232316.0+203942 23 23 16.01 +20 39 42.12 1.70 GMRTAS150M
3 PGC 1632473 23 22 59.50 +20 38 12.84 3.41 PGC2003
4 NVSS J232319+203723 23 23 19.70 +20 37 23.16 3.96 NVSS
5 OZ+235 23 23 16.70 +20 36 28.08 4.43 DIXON
6 PGC 1631599 23 23 04.70 +20 35 58.92 4.78 PGC2003
QORG J232304.6+203558 23 23 04.61 +20 35 57.84 4.80 QORGCAT
7 MCG+03-59-048 23 23 11.52 +20 35 27.60 5.16 MCG
8 23208+2019 23 23 17.66 +20 35 28.68 5.45 ZCAT
[HVG99b] 23208+2019 23 23 17.66 +20 35 28.68 5.45 CFA2S
WBL 715-002 23 23 17.66 +20 35 28.68 5.45 WBLGALAXY
MCG+03-59-050 23 23 17.52 +20 35 27.60 5.45 MCG
GC2320+20 23 23 19.30 +20 35 30.12 5.55 DIXON
TGSSADR J232321.5+203544 23 23 21.50 +20 35 44.16 5.59 GMRTAS150M
9 NVSS J232323+203603 23 23 23.71 +20 36 02.88 5.59 NVSS
10 NVSS J232308+203459 23 23 08.81 +20 34 59.16 5.63 NVSS
QORG J232319.5+203526 23 23 19.49 +20 35 26.16 5.64 QORGCAT
VLSSr J232319.8+203522 23 23 19.90 +20 35 21.84 5.74 VLSSR
11 NVSS J232320+203525 23 23 20.40 +20 35 26.16 5.74 NVSS
PGC 71284 23 23 20.30 +20 35 24.00 5.75 PGC2003
UZC J232320.3+203524 23 23 20.30 +20 35 24.00 5.75 UZC
CRATES J232319+203512 23 23 20.30 +20 35 22.92 5.76 CRATES
PKS 2320+203 23 23 19.80 +20 35 18.96 5.77 DIXON
TXS 2320+203 23 23 20.40 +20 35 24.00 5.77 TEXAS
PKS J2323+2035 23 23 19.70 +20 35 18.96 5.77 PKSCAT90
QORG J232320.2+203522 23 23 20.21 +20 35 21.84 5.77 QORGCAT
GB6 J2323+2035 23 23 19.70 +20 35 12.12 5.88 GB6
2320+2018 23 23 19.80 +20 35 09.96 5.91 NORTH6CM
2320+2018 23 23 19.80 +20 35 09.96 5.91 NORTH20CM
QORG J232322.0+203525 23 23 22.01 +20 35 25.08 5.92 QORGCAT
PGC 71293 23 23 25.39 +20 35 52.08 5.97 PGC2003
TGSSADR J232314.6+203443 23 23 14.71 +20 34 42.96 5.99 GMRTAS150M
12 NVSS J232314+203441 23 23 14.90 +20 34 41.88 6.03 NVSS
13 MCG+03-59-049 23 23 11.52 +20 34 30.00 6.12 MCG
MITG J2323+2034 23 23 20.40 +20 34 58.08 6.16 MITGB6CM
14 TGSSADR J232324.2+203512 23 23 24.31 +20 35 12.12 6.37 GMRTAS150M
15 WBL 715 23 23 23.69 +20 34 28.56 6.93 WBL
TGSSADR J232314.6+204727 23 23 14.59 +20 47 26.88 6.94 GMRTAS150M
16 NVSS J232314+204730 23 23 14.40 +20 47 30.12 6.98 NVSS
17 UZC J232321.5+203401 23 23 21.50 +20 34 00.84 7.13 UZC
PGC 71283 23 23 21.50 +20 33 56.88 7.19 PGC2003
18 WBL 715-003 23 23 35.69 +20 36 28.80 7.32 WBLGALAXY
19 QORG J232320.9+204729 23 23 20.90 +20 47 29.04 7.34 QORGCAT
20 23208+2017 23 23 17.66 +20 33 28.44 7.36 ZCAT
[HVG99b] 23208+2017 23 23 17.66 +20 33 28.44 7.36 CFA2S
WBL 715-001 23 23 17.66 +20 33 28.44 7.36 WBLGALAXY
PGC 71306 23 23 37.30 +20 36 32.04 7.60 PGC2003
21 PGC 1630604 23 23 21.91 +20 33 27.00 7.69 PGC2003
22 WDS J23228+2034 Ba,Bb 23 22 48.00 +20 34 00.12 8.36 WDS
WDS J23228+2034 AB 23 22 48.00 +20 34 00.12 8.36 WDS
WDS J23228+2034 AC 23 22 48.00 +20 34 00.12 8.36 WDS
23 PGC 1636562 23 23 05.59 +20 49 03.00 8.50 PGC2003
24 PGC 1632327 23 23 44.30 +20 37 50.16 8.52 PGC2003
BD+19 5093 23 22 48.67 +20 33 32.04 8.64 ACRS
SAO 91222 23 22 48.67 +20 33 32.04 8.64 SAO
HD 220334 23 22 48.67 +20 33 31.68 8.64 HIC
25 PPM 400312 23 22 48.70 +20 33 30.96 8.65 PPM
HIP 115417 23 22 48.48 +20 33 32.40 8.66 HIPPARCOS
+19:5093A 23 22 47.52 +20 33 33.84 8.77 NLTT
+19:5093B 23 22 47.52 +20 33 33.84 8.77 NLTT
26 PGC 1631384 23 22 39.31 +20 35 26.16 8.83 PGC2003
27 PGC 1632329 23 23 47.59 +20 37 50.88 9.25 PGC2003
28 NVSS J232308+205002 23 23 08.40 +20 50 03.12 9.45 NVSS
29 PGC 1632765 23 23 50.59 +20 38 54.96 9.68 PGC2003
30 PGC 1636614 23 22 49.30 +20 49 12.00 9.85 PGC2003
31 PGC 1632398 23 23 51.79 +20 38 00.96 10.15 PGC2003
32 NVSS J232224+204009 23 22 24.10 +20 40 09.12 10.71 NVSS
33 MCG+03-59-054 23 23 56.64 +20 41 27.60 10.97 MCG
34 TGSSADR J232354.7+204418 23 23 54.70 +20 44 17.88 11.13 GMRTAS150M
35 PGC 1635212 23 23 54.00 +20 45 25.92 11.39 PGC2003
36 HR 8891 23 22 40.51 +20 49 42.96 11.40 BSC5P
SAO 91220 23 22 40.51 +20 49 42.96 11.40 SAO
QORG J232240.5+204943 23 22 40.51 +20 49 42.96 11.41 QORGCAT
PPM 115423 23 22 40.51 +20 49 43.32 11.41 PPM
HD 220318 23 22 40.51 +20 49 43.32 11.41 HIC
HIP 115407 23 22 40.51 +20 49 43.68 11.41 HIPPARCOS
HD 220318 23 22 40.75 +20 49 54.48 11.52 BATTEN
37 PGC 1629175 23 22 46.90 +20 30 12.96 11.70 PGC2003
38 NVSS J232229+203332 23 22 29.90 +20 33 32.04 11.72 NVSS
QORG J232229.8+203331 23 22 29.81 +20 33 30.96 11.75 QORGCAT
39 NVSS J232357+204419 23 23 57.70 +20 44 18.96 11.78 NVSS
40 UGC 12577 23 23 59.66 +20 42 29.16 11.80 UGC
Unknown 23 24 00.00 +20 41 60.00 11.81 RC3
TGSSADR J232358.0+204420 23 23 58.01 +20 44 21.12 11.87 GMRTAS150M
41 PGC 1635442 23 23 56.40 +20 45 57.96 12.13 PGC2003
42 QORG J232244.7+205208 23 22 44.71 +20 52 08.04 12.94 QORGCAT
43 QORG J232228.2+205115 23 22 28.20 +20 51 15.12 14.43 QORGCAT
44 PGC 1637214 23 22 24.19 +20 50 53.88 14.83 PGC2003
