Swift-XRT Survey of Fermi Unassociated Sources

These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.
Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

4FGL J2317.8+6140

Field

Detected Excesses

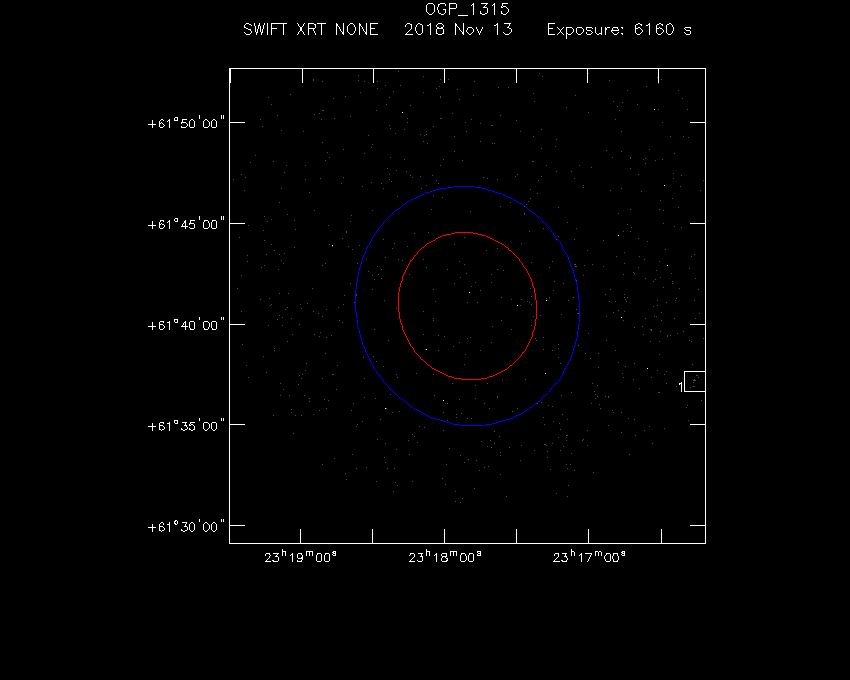

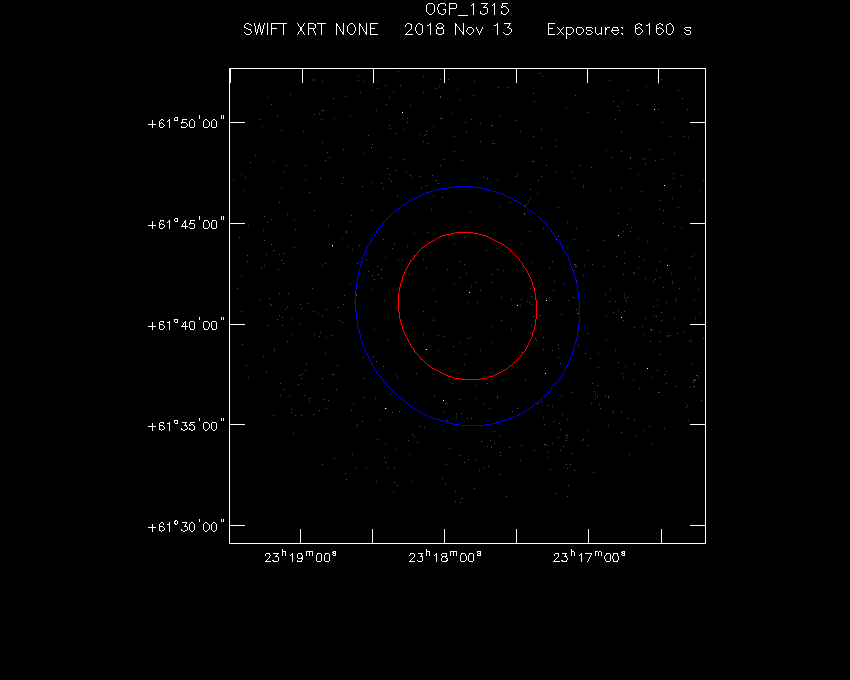

Swift-XRT image of the field for 4FGL J2317.8+6140 Swift-XRT detections in the field for 4FGL J2317.8+6140

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 23 16 15.52 +61 37 10.07 6.04 (3.1 ± 0.8) x 10-3 18 3.761 3.911

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 23 17 04.96 +61 42 48.40 6.41 (1.3 ± 0.6) x 10-3 13 2.573 2.130
2 23 16 46.64 +61 41 12.13 6.31 (1.2 ± 0.6) x 10-3 13 2.323 2.015

X-Ray and Gamma Ray Catalogs

More Catalogs

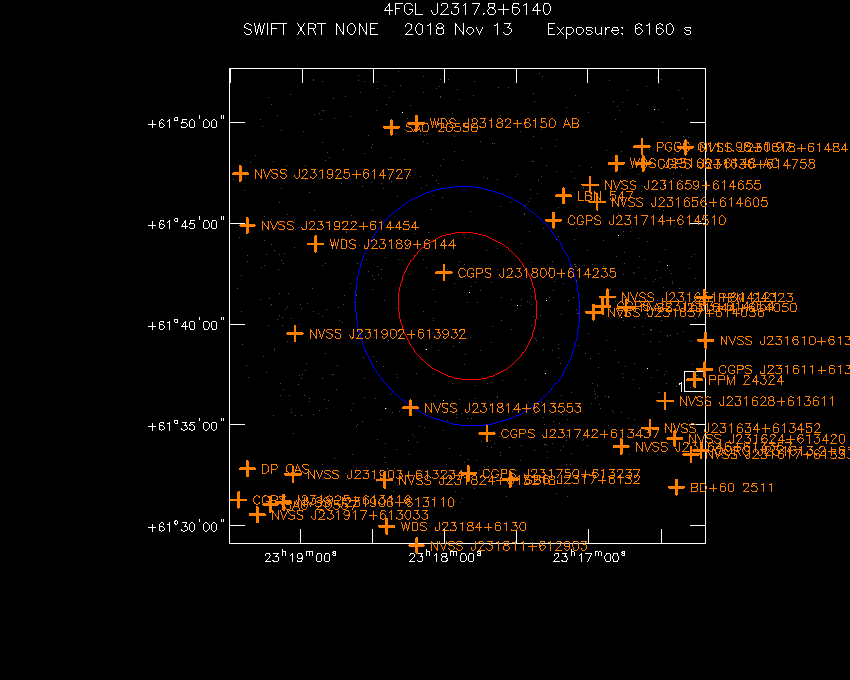

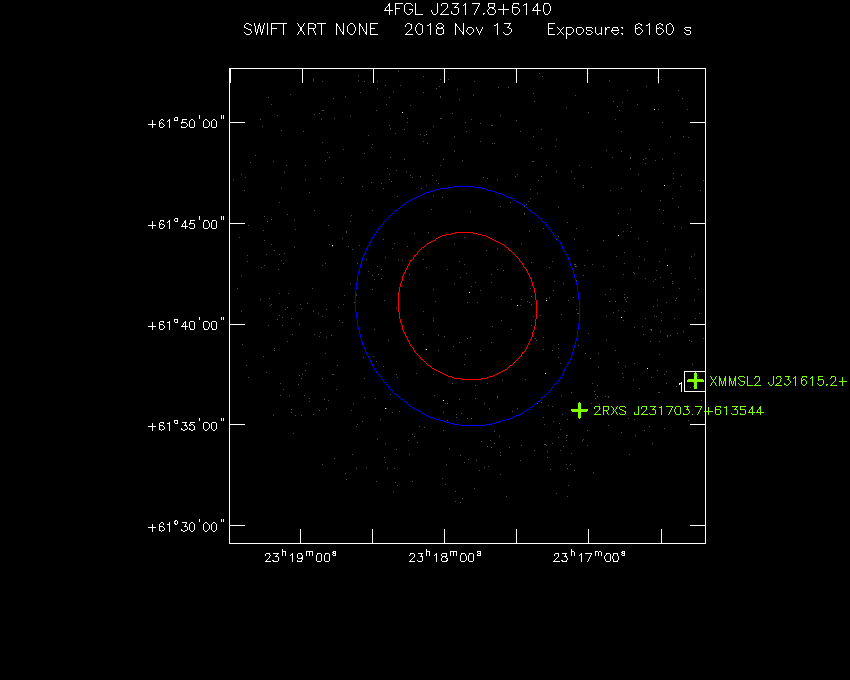

Swift-XRT image with known X-ray and gamma ray sources for 4FGL J2317.8+6140 Swift-XRT image with known radio, optical and UV sources for 4FGL J2317.8+6140

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 2RXS J231703.7+613544 23 17 03.77 +61 35 44.88 7.59 ROSAT
2 XMMSL2 J231615.2+613712 23 16 15.29 +61 37 11.64 11.90 XMM-NEWTON
2RXP J231612.2+613709 23 16 12.14 +61 37 09.48 12.27 ROSAT

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 CGPS J231800+614235 23 18 00.31 +61 42 34.92 2.02 CGPSNGPCAT
2 NVSS J231814+613553 23 18 14.21 +61 35 53.16 5.78 NVSS
3 CGPS J231714+614510 23 17 14.40 +61 45 11.16 6.03 CGPSNGPCAT
4 NVSS J231657+614036 23 16 57.79 +61 40 36.84 6.26 NVSS
5 CGPS J231742+613437 23 17 42.31 +61 34 36.84 6.38 CGPSNGPCAT
6 CGPS J231653+614054 23 16 53.90 +61 40 54.84 6.71 CGPSNGPCAT
7 NVSS J231651+614121 23 16 51.79 +61 41 21.84 6.97 NVSS
8 LBN 547 23 17 10.20 +61 46 23.88 7.25 LBN
LDN 1232 23 17 10.15 +61 46 23.88 7.26 LDN
CGPS J231646+614056 23 16 46.49 +61 40 55.92 7.59 CGPSNGPCAT
9 NVSS J231644+614050 23 16 44.11 +61 40 50.88 7.88 NVSS
10 WDS J23189+6144 23 18 54.00 +61 43 59.88 8.13 WDS
CGPS J231655+614550 23 16 55.70 +61 45 51.12 8.13 CGPSNGPCAT
11 NVSS J231656+614605 23 16 56.11 +61 46 05.16 8.25 NVSS
WN 2314.7+6129 23 16 55.80 +61 46 05.88 8.28 WENSS
12 CGPS J231750+613237 23 17 50.11 +61 32 38.04 8.30 CGPSNGPCAT
CGPS J231701+614700 23 17 01.20 +61 47 00.96 8.43 CGPSNGPCAT
13 NVSS J231659+614655 23 16 58.99 +61 46 55.92 8.55 NVSS
14 NVSS J231902+613932 23 19 02.50 +61 39 33.12 8.65 NVSS
15 GB6 J2317+6132 23 17 32.59 +61 32 20.04 8.86 GB6
16 WDS J23182+6150 AB 23 18 12.00 +61 49 59.88 9.42 WDS
WDS J23182+6150 AB,C 23 18 12.00 +61 49 59.88 9.42 WDS
17 NVSS J231824+613218 23 18 24.91 +61 32 17.88 9.55 NVSS
18 SAO 20550 23 18 22.42 +61 49 47.28 9.63 SAO
PPM 24356 23 18 22.73 +61 49 47.64 9.65 PPM
BD+61 2419 23 18 22.75 +61 49 48.00 9.65 ACRS
19 WDS J23168+6148 AC 23 16 48.00 +61 47 60.00 10.23 WDS
WDS J23168+6148 AB 23 16 48.00 +61 47 60.00 10.23 WDS
SAO 20532 23 16 47.09 +61 47 57.12 10.28 HIC
BD+61 2414 23 16 47.04 +61 47 57.12 10.28 ACRS
PPM 24330 23 16 47.06 +61 47 57.48 10.28 PPM
HIP 114929 23 16 47.09 +61 47 57.84 10.28 HIPPARCOS
SAO 20532 23 16 46.70 +61 47 57.84 10.31 SAO
20 NVSS J231646+613357 23 16 46.39 +61 33 56.88 10.33 NVSS
21 NVSS J231628+613611 23 16 28.01 +61 36 11.88 10.87 NVSS
22 NVSS J231634+613452 23 16 34.39 +61 34 51.96 10.88 NVSS
23 CGPS J231636+614758 23 16 36.70 +61 47 58.92 11.23 CGPSNGPCAT
24 NVSS J231922+614454 23 19 22.70 +61 44 53.88 11.63 NVSS
25 WDS J23184+6130 23 18 24.00 +61 30 00.00 11.64 WDS
26 PGCC G111.98+0.97 23 16 37.20 +61 48 48.96 11.72 PLANCKGCC
27 PPM 24323 23 16 11.40 +61 41 19.68 11.75 PPM
BD+60 2509 23 16 11.38 +61 41 20.04 11.76 ACRS
SAO 20526 23 16 11.33 +61 41 18.96 11.76 SAO
28 PPM 24324 23 16 15.65 +61 37 14.88 11.84 PPM
BD+60 2510 23 16 15.62 +61 37 14.16 11.85 ACRS
SAO 20527 23 16 15.48 +61 37 16.68 11.86 SAO
CGPS J231611+613912 23 16 11.21 +61 39 11.88 11.90 CGPSNGPCAT
29 NVSS J231610+613912 23 16 10.90 +61 39 11.88 11.94 NVSS
30 NVSS J231903+613234 23 19 03.10 +61 32 34.08 12.02 NVSS
QORG J231903.6+613233 23 19 03.60 +61 32 33.00 12.08 QORGCAT
QORG J231613.2+613714 23 16 13.20 +61 37 14.16 12.13 QORGCAT
31 NVSS J231811+612903 23 18 11.59 +61 29 03.12 12.14 NVSS
32 CGPS J231611+613744 23 16 11.40 +61 37 45.12 12.18 CGPSNGPCAT
33 NVSS J231624+613420 23 16 24.10 +61 34 19.92 12.20 NVSS
34 NVSS J231925+614727 23 19 25.80 +61 47 27.96 13.04 NVSS
35 NVSS J231617+613333 23 16 17.30 +61 33 33.12 13.31 NVSS
36 NVSS J231906+613110 23 19 06.91 +61 31 10.92 13.34 NVSS
37 NVSS J231618+614846 23 16 18.91 +61 48 46.08 13.37 NVSS
38 DP CAS 23 19 22.10 +61 32 49.92 13.57 WOODEBCAT
39 QORG J231613.2+613344 23 16 13.20 +61 33 43.92 13.62 QORGCAT
40 BD+60 2511 23 16 23.47 +61 31 54.84 13.72 ACRS
PPM 24327 23 16 23.52 +61 31 54.48 13.72 PPM
SAO 20529 23 16 23.47 +61 31 54.84 13.72 SAO
41 SAO 20557 23 19 12.48 +61 31 03.72 13.88 SAO
WDS J23192+6131 AC 23 19 12.00 +61 31 00.12 13.88 WDS
WDS J23192+6131 AE 23 19 12.00 +61 31 00.12 13.88 WDS
WDS J23192+6131 AB 23 19 12.00 +61 31 00.12 13.88 WDS
WDS J23192+6131 AD 23 19 12.00 +61 31 00.12 13.88 WDS
BD+60 2519 23 19 12.50 +61 31 03.36 13.88 ACRS
HIP 115131 23 19 12.50 +61 31 03.36 13.88 HIPPARCOS
SAO 20557 23 19 12.55 +61 31 03.00 13.89 HIC
PPM 24364 23 19 12.58 +61 31 03.00 13.89 PPM
42 NVSS J231917+613033 23 19 17.90 +61 30 33.12 14.69 NVSS
43 CGPS J231925+613116 23 19 25.61 +61 31 17.04 14.87 CGPSNGPCAT
