Swift-XRT Survey of Fermi Unassociated Sources

These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.
Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

4FGL J1817.2-3035

Field

Detected Excesses

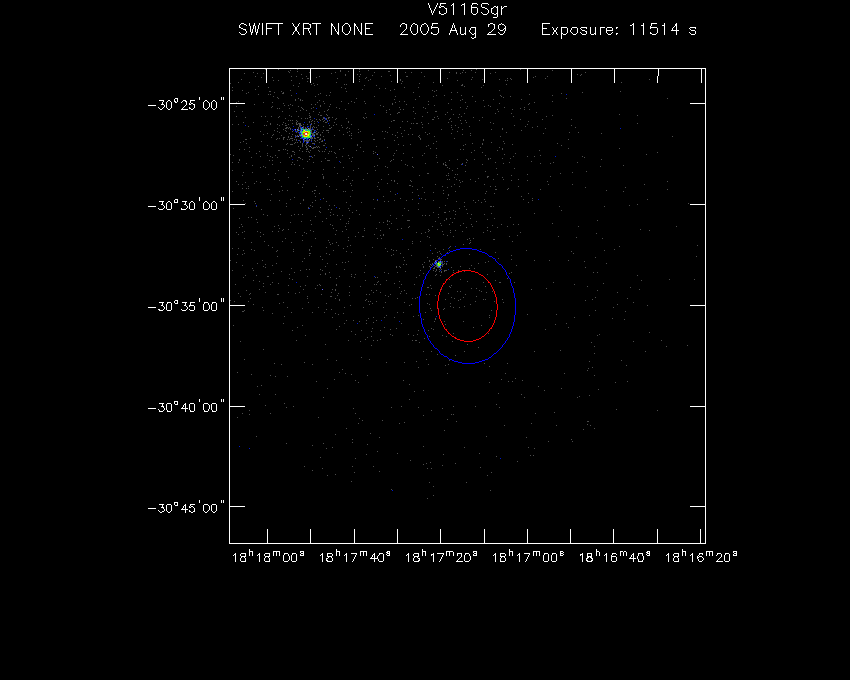

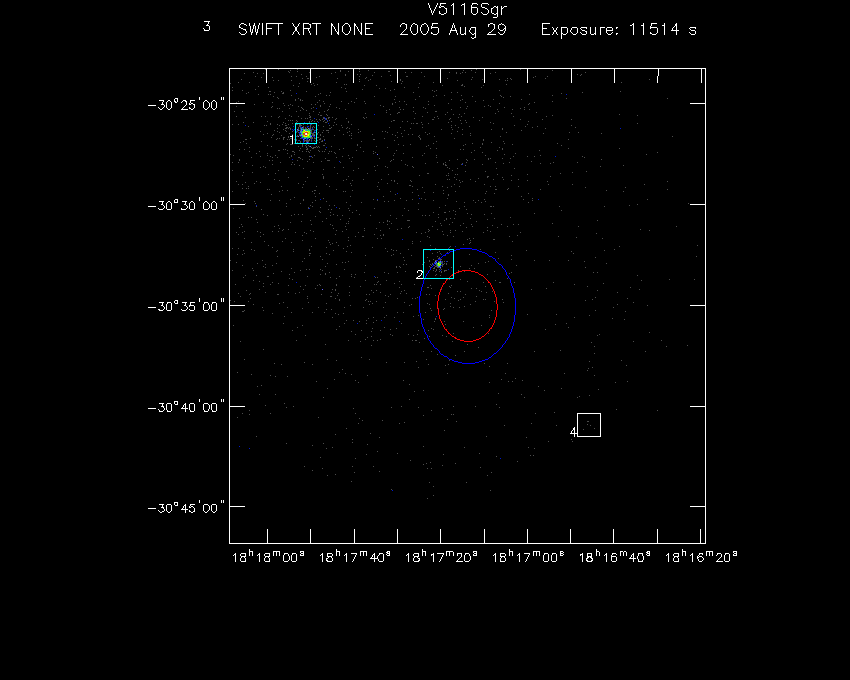

Swift-XRT image of the field for 4FGL J1817.2-3035 Swift-XRT detections in the field for 4FGL J1817.2-3035

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 18 17 50.96 -30 26 30.16 3.54 (2.33 ± 0.05) x 10-1 2343 50.760 45.810
2 18 17 20.41 -30 32 58.21 3.74 (3.2 ± 0.2) x 10-2 352 17.160 17.010
3 18 18 10.92 -30 20 58.79 4.03 (1.07 ± 0.11) x 10-2 114 9.825 9.656
4 18 16 45.86 -30 40 57.06 6.78 (1.2 ± 0.4) x 10-3 13 2.676 3.058

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 18 17 33.70 -30 22 35.26 4.86 (1.5 ± 0.5) x 10-3 22 2.709 2.933
2 18 18 09.13 -30 27 15.18 4.59 (1.3 ± 0.5) x 10-3 27 3.087 2.882
3 18 17 20.39 -30 32 57.40 3.74 (1.5 ± 0.6) x 10-3 350 4.290 2.712
4 18 18 20.78 -30 32 27.43 4.86 (10 ± 4) x 10-4 17 2.600 2.508
5 18 17 19.70 -30 23 05.78 4.76 (10 ± 4) x 10-4 18 2.621 2.341
6 18 17 20.41 -30 32 58.24 3.74 (9 ± 10) x 10-4 348 2.922 0.897
7 18 17 50.96 -30 26 30.06 3.54 (10 ± 17) x 10-4 2343 6.333 0.569
8 18 17 50.96 -30 26 30.16 3.54 N/A 2331 4.049 N/A

X-Ray and Gamma Ray Catalogs

More Catalogs

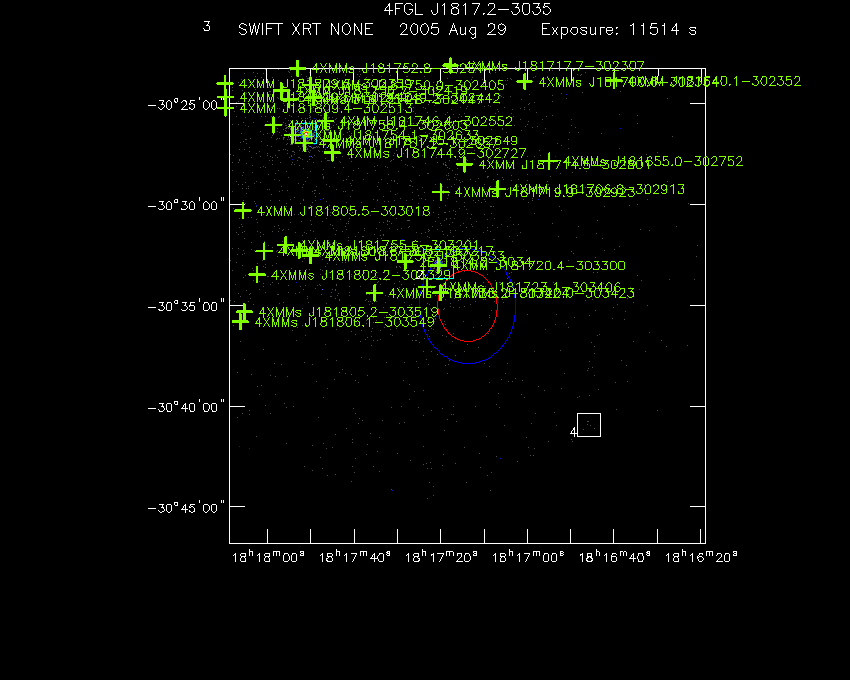

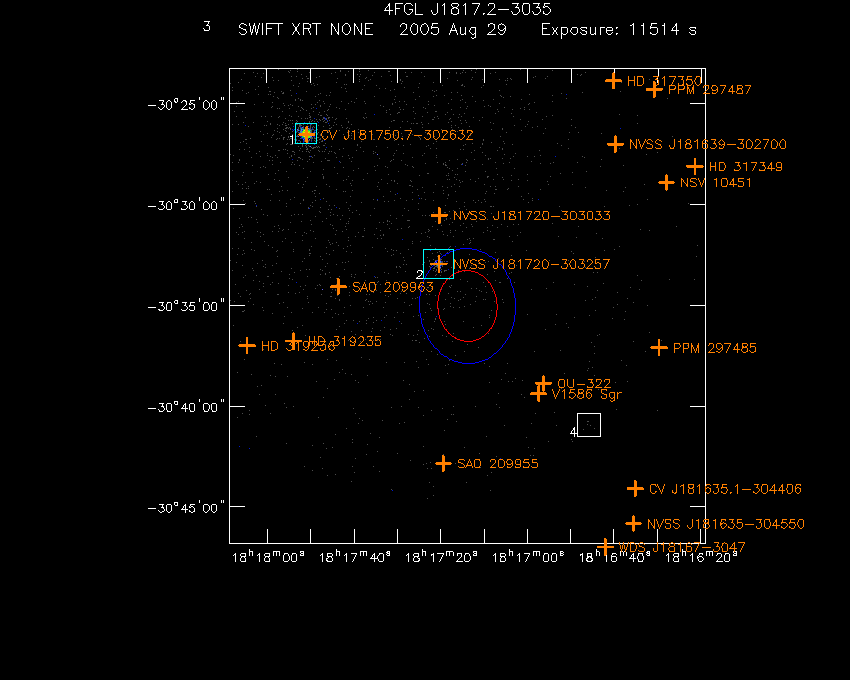

Swift-XRT image with known X-ray and gamma ray sources for 4FGL J1817.2-3035 Swift-XRT image with known radio, optical and UV sources for 4FGL J1817.2-3035

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 4XMMs J181720.0-303423 18 17 20.04 -30 34 23.52 1.49 XMM-NEWTON
2 4XMMs J181723.1-303406 18 17 23.16 -30 34 06.24 2.22 XMM-NEWTON
3 4XMM J181720.4-303300 18 17 20.54 -30 33 02.16 2.48 XMM-NEWTON
4XMMs J181720.5-303300 18 17 20.50 -30 33 01.08 2.49 XMM-NEWTON
4XMM J181720.4-303300 18 17 20.40 -30 32 58.20 2.52 XMM-NEWTON
4 2E 1814.2-3034 18 17 28.15 -30 32 50.64 3.79 EINSTEIN
5 4XMMs J181735.2-303424 18 17 35.21 -30 34 23.88 4.65 XMM-NEWTON
6 4XMMs J181719.9-302923 18 17 19.94 -30 29 24.00 5.81 XMM-NEWTON
7 4XMM J181706.8-302913 18 17 06.84 -30 29 14.64 6.00 XMM-NEWTON
4XMMs J181706.8-302913 18 17 06.84 -30 29 13.20 6.02 XMM-NEWTON
4XMM J181706.8-302913 18 17 06.79 -30 29 12.12 6.05 XMM-NEWTON
8 4XMM J181714.5-302801 18 17 14.52 -30 28 01.56 7.03 XMM-NEWTON
4XMMs J181714.7-302759 18 17 14.74 -30 27 59.76 7.06 XMM-NEWTON
9 4XMMs J181750.0-303233 18 17 50.02 -30 32 33.00 8.18 XMM-NEWTON
4XMM J181750.0-303234 18 17 50.04 -30 32 34.44 8.18 XMM-NEWTON
10 4XMMs J181655.0-302752 18 16 55.03 -30 27 51.84 8.25 XMM-NEWTON
4XMM J181751.6-303213 18 17 51.62 -30 32 13.20 8.62 XMM-NEWTON
11 4XMMs J181752.5-303217 18 17 52.54 -30 32 17.88 8.78 XMM-NEWTON
12 4XMMs J181755.6-303201 18 17 55.68 -30 32 00.96 9.51 XMM-NEWTON
13 4XMMs J181744.9-302727 18 17 44.93 -30 27 27.00 10.13 XMM-NEWTON
14 4XMMs J181800.6-303219 18 18 00.67 -30 32 18.96 10.45 XMM-NEWTON
15 4XMMs J181802.2-303329 18 18 02.28 -30 33 29.16 10.54 XMM-NEWTON
16 4XMM J181745.1-302649 18 17 45.19 -30 26 49.92 10.64 XMM-NEWTON
17 4XMMs J181805.2-303519 18 18 05.23 -30 35 19.32 11.07 XMM-NEWTON
4XMM J181805.2-303520 18 18 05.26 -30 35 21.84 11.07 XMM-NEWTON
4XMM J181805.2-303520 18 18 05.26 -30 35 20.04 11.07 XMM-NEWTON
18 4XMMs J181806.1-303549 18 18 06.19 -30 35 49.20 11.29 XMM-NEWTON
19 4XMMs J181751.2-302657 18 17 51.29 -30 26 57.84 11.42 XMM-NEWTON
4XMM J181751.2-302657 18 17 51.24 -30 26 57.12 11.43 XMM-NEWTON
20 4XMMs J181700.6-302354 18 17 00.67 -30 23 54.96 11.49 XMM-NEWTON
21 4XMM J181746.4-302552 18 17 46.44 -30 25 51.96 11.56 XMM-NEWTON
4XMM J181750.5-302632 18 17 50.45 -30 26 34.44 11.58 XMM-NEWTON
4XMM J181750.5-302632 18 17 50.76 -30 26 29.76 11.68 XMM-NEWTON
4XMMs J181750.7-302629 18 17 50.76 -30 26 29.76 11.69 XMM-NEWTON
22 4XMMs J181717.7-302307 18 17 17.71 -30 23 07.44 11.96 XMM-NEWTON
23 4XMM J181805.5-303018 18 18 05.52 -30 30 19.08 12.10 XMM-NEWTON
24 4XMM J181754.1-302633 18 17 54.14 -30 26 34.08 12.14 XMM-NEWTON
25 4XMM J181749.2-302442 18 17 49.22 -30 24 42.84 12.85 XMM-NEWTON
26 4XMMs J181758.4-302603 18 17 58.44 -30 26 03.48 13.16 XMM-NEWTON
27 4XMM J181640.1-302352 18 16 40.13 -30 23 52.44 13.33 XMM-NEWTON
28 4XMMs J181750.0-302405 18 17 49.99 -30 24 05.40 13.45 XMM-NEWTON
29 4XMMs J181754.8-302447 18 17 54.86 -30 24 47.52 13.54 XMM-NEWTON
30 4XMM J181756.7-302419 18 17 56.66 -30 24 20.88 14.14 XMM-NEWTON
4XMM J181756.7-302419 18 17 56.86 -30 24 16.56 14.21 XMM-NEWTON
31 4XMMs J181752.8-302314 18 17 52.85 -30 23 15.00 14.49 XMM-NEWTON
4XMM J181753.1-302316 18 17 52.75 -30 23 13.56 14.50 XMM-NEWTON
4XMM J181753.1-302316 18 17 53.26 -30 23 17.16 14.51 XMM-NEWTON
32 4XMM J181809.4-302513 18 18 09.48 -30 25 13.44 15.50 XMM-NEWTON
4XMMs J181809.2-302459 18 18 09.29 -30 24 59.76 15.62 XMM-NEWTON
33 4XMM J181809.5-302440 18 18 09.55 -30 24 40.32 15.87 XMM-NEWTON
4XMMs J181809.5-302437 18 18 09.55 -30 24 37.80 15.90 XMM-NEWTON
34 4XMM J181809.5-302359 18 18 09.58 -30 23 60.00 16.32 XMM-NEWTON

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 NVSS J181720-303257 18 17 20.40 -30 32 57.84 2.52 NVSS
2 NVSS J181720-303033 18 17 20.30 -30 30 33.12 4.71 NVSS
3 OU-322 18 16 56.30 -30 38 53.16 5.38 DIXON
4 V1586 Sgr 18 16 57.41 -30 39 23.76 5.60 GCVS
5 SAO 209963 18 17 43.56 -30 34 05.16 6.47 SAO
CD-3015500 18 17 43.80 -30 34 04.80 6.53 ACRS
PPM 297514 18 17 43.82 -30 34 04.44 6.53 PPM
6 SAO 209955 18 17 19.37 -30 42 51.48 7.89 SAO
CD-3015492 18 17 19.46 -30 42 52.92 7.93 ACRS
PPM 297501 18 17 19.49 -30 42 53.28 7.93 PPM
WDS J18173-3043 18 17 18.00 -30 43 00.12 8.00 WDS
7 HD 319235 18 17 53.86 -30 36 47.16 8.79 HDEC
8 PPM 297485 18 16 29.64 -30 37 06.96 9.73 PPM
CD-3015478 18 16 29.59 -30 37 06.96 9.74 ACRS
SAO 209940 18 16 29.42 -30 37 06.24 9.77 SAO
9 NVSS J181639-302700 18 16 39.79 -30 27 01.08 10.88 NVSS
10 HD 319236 18 18 04.61 -30 37 00.84 11.10 HDEC
11 NSV 10451 18 16 28.01 -30 28 54.84 11.62 GCVSNSVARS
12 CV J181750.7-302632 18 17 50.78 -30 26 32.28 11.66 CVCAT
V5116 Sgr 18 17 50.81 -30 26 31.92 11.66 RITTERCV
V5116 Sgr 18 17 50.76 -30 26 31.20 11.67 GCVS
13 CV J181635.1-304406 18 16 35.11 -30 44 06.00 12.30 CVCAT
14 HD 317349 18 16 21.48 -30 28 06.96 13.24 HDEC
15 HD 317350 18 16 40.22 -30 23 52.44 13.32 HDEC
16 NVSS J181635-304550 18 16 35.50 -30 45 50.04 13.57 NVSS
TGSSADR J181635.5-304550 18 16 35.50 -30 45 50.04 13.57 GMRTAS150M
MGPS J181635-304551 18 16 35.40 -30 45 51.84 13.61 MGPS2
17 WDS J18167-3047 18 16 42.00 -30 46 59.88 13.77 WDS
18 PPM 297487 18 16 30.86 -30 24 18.00 14.19 PPM
CD-3015479 18 16 30.86 -30 24 17.64 14.19 ACRS
SAO 209941 18 16 30.77 -30 24 16.56 14.22 SAO
