Swift-XRT Survey of Fermi Unassociated Sources

These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.
Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

4FGL J1758.8-2326

Field

Detected Excesses

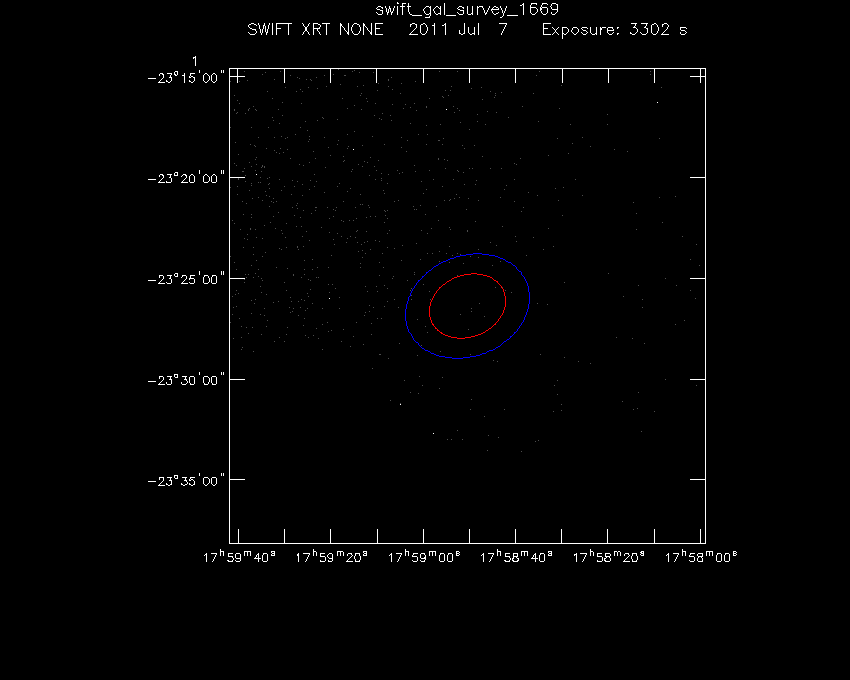

Swift-XRT image of the field for 4FGL J1758.8-2326 Swift-XRT detections in the field for 4FGL J1758.8-2326

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 17 59 46.61 -23 14 02.22 4.37 (7 ± 2) x 10-3 33 4.461 3.312

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 17 59 48.29 -23 17 08.42 4.80 (4 ± 2) x 10-3 16 2.625 2.608
2 17 59 50.75 -23 13 35.03 4.67 (3.0 ± 1.4) x 10-3 17 2.797 2.101

X-Ray and Gamma Ray Catalogs

More Catalogs

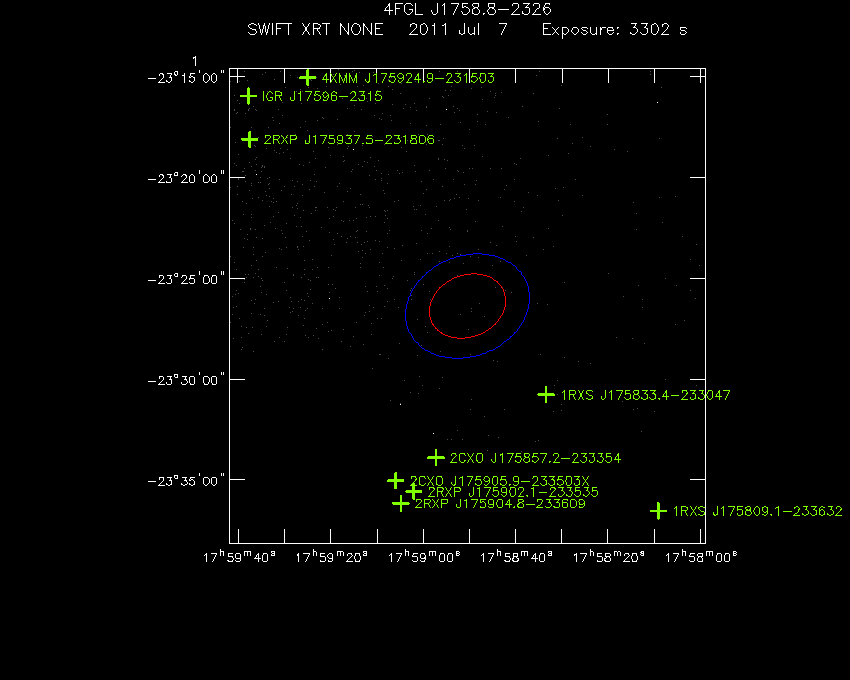

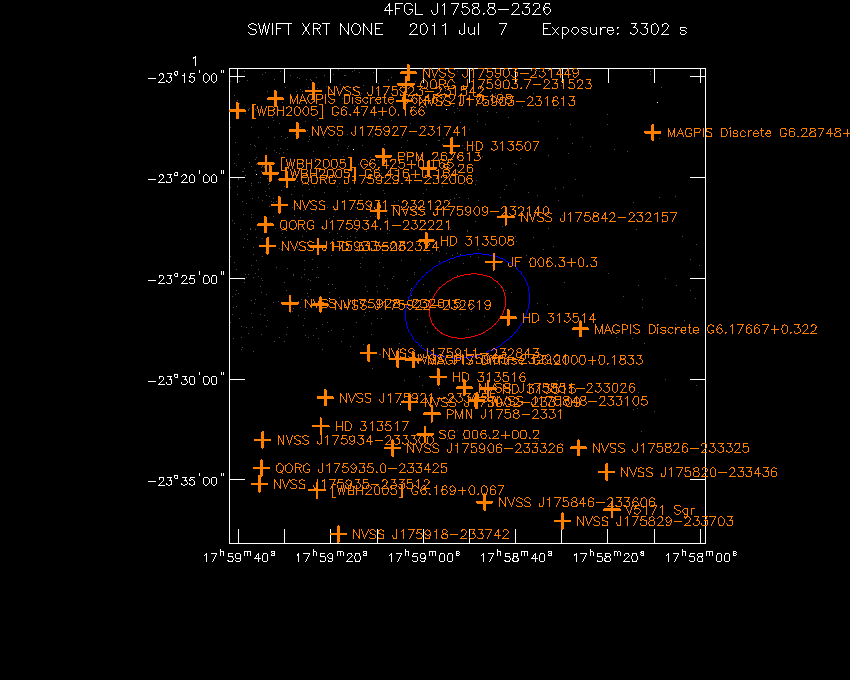

Swift-XRT image with known X-ray and gamma ray sources for 4FGL J1758.8-2326 Swift-XRT image with known radio, optical and UV sources for 4FGL J1758.8-2326

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 1RXS J175833.4-233047 17 58 33.41 -23 30 47.16 5.88 ROSAT
2 2CXO J175857.2-233354 17 58 57.24 -23 33 54.36 7.68 CHANDRA
X175857.54-233357.9 17 58 57.55 -23 33 57.96 7.75 CHANDRA
3 2CXO J175905.9-233503X 17 59 05.93 -23 35 03.12 9.37 CHANDRA
4 2RXP J175902.1-233535 17 59 02.04 -23 35 35.16 9.57 ROSAT
5 2RXP J175904.8-233609 17 59 04.82 -23 36 10.08 10.32 ROSAT
6 2RXP J175937.5-231806 17 59 37.44 -23 18 06.84 13.60 ROSAT
7 4XMM J175924.9-231503 17 59 24.91 -23 15 03.24 13.83 XMM-NEWTON
8 1RXS J175809.1-233632 17 58 09.10 -23 36 32.40 13.89 ROSAT
9 IGR J17596-2315 17 59 37.70 -23 15 57.96 15.05 INTEGRAL

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 HD 313514 17 58 41.62 -23 26 57.84 2.10 HDEC
2 JF 006.3+0.3 17 58 44.71 -23 24 11.88 2.55 DIXON
3 MAGPIS Diffuse G6.2000+0.1833 17 59 02.11 -23 29 03.12 3.78 MAGPIS
4 HD 313516 17 58 56.76 -23 29 54.24 3.80 HDEC
5 HD 313508 17 58 59.30 -23 23 08.16 3.84 HDEC
6 NVSS J175851-233026 17 58 51.10 -23 30 25.92 4.05 NVSS
7 HD 313515 17 58 45.96 -23 30 29.52 4.23 HDEC
8 NVSS J175905-232901 17 59 05.50 -23 29 00.96 4.34 NVSS
9 NVSS J175848-233105 17 58 48.41 -23 31 05.16 4.73 NVSS
10 NVSS J175842-232157 17 58 42.10 -23 21 57.96 4.82 NVSS
11 NVSS J175911-232843 17 59 11.81 -23 28 42.96 5.43 NVSS
12 NVSS J175902-233109 17 59 02.90 -23 31 09.12 5.56 NVSS
13 PMN J1758-2331 17 58 58.10 -23 31 44.04 5.63 PMN
14 MAGPIS Discrete G6.17667+0.322 17 58 25.99 -23 27 30.96 5.71 MAGPIS
15 NVSS J175909-232140 17 59 09.60 -23 21 39.96 6.46 NVSS
16 SG 006.2+00.2 17 58 59.59 -23 32 44.88 6.70 DIXON
17 S 26 17 58 58.80 -23 19 33.60 7.09 HIIREGION
18 NVSS J175922-232619 17 59 22.20 -23 26 18.96 7.29 NVSS
19 NVSS J175906-233326 17 59 06.60 -23 33 25.92 7.96 NVSS
20 HD 313506 17 59 22.73 -23 23 25.44 7.98 HDEC
21 HD 313507 17 58 53.81 -23 18 26.64 7.98 HDEC
22 NVSS J175921-233055 17 59 21.19 -23 30 56.16 8.39 NVSS
23 PPM 267613 17 59 08.59 -23 18 57.96 8.51 PPM
CD-2313721 17 59 08.59 -23 18 57.60 8.52 ACRS
SAO 186044 17 59 08.64 -23 18 56.88 8.53 SAO
24 NVSS J175928-232615 17 59 28.80 -23 26 15.00 8.80 NVSS
QORG J175929.0-232645 17 59 28.99 -23 26 44.88 8.86 QORGCAT
[WBH2005] G6.093+0.271 17 58 26.71 -23 33 24.84 8.89 WBHGP20CM
[WBH2005] G6.093+0.271 17 58 26.71 -23 33 24.84 8.89 WBHGP6CM
MAGPIS Discrete G6.09262+0.270 17 58 26.71 -23 33 25.92 8.90 MAGPIS
TGSSADR J175826.7-233327 17 58 26.71 -23 33 28.08 8.92 GMRTAS150M
25 NVSS J175826-233325 17 58 26.40 -23 33 24.84 8.93 NVSS
26 HD 313517 17 59 22.13 -23 32 20.40 9.40 HDEC
27 NVSS J175846-233606 17 58 46.70 -23 36 06.84 9.76 NVSS
28 NVSS J175933-232324 17 59 33.60 -23 23 24.00 10.35 NVSS
29 NVSS J175931-232122 17 59 31.10 -23 21 21.96 10.59 NVSS
30 NVSS J175903-231613 17 59 04.01 -23 16 13.08 10.63 NVSS
31 NVSS J175820-233436 17 58 20.30 -23 34 36.84 10.74 NVSS
32 QORG J175934.1-232221 17 59 34.10 -23 22 21.00 10.80 QORGCAT
33 QORG J175929.4-232006 17 59 29.40 -23 20 06.00 10.93 QORGCAT
34 QORG J175903.7-231523 17 59 03.70 -23 15 23.04 11.42 QORGCAT
35 NVSS J175829-233703 17 58 29.90 -23 37 03.00 11.65 NVSS
QORG J175933.0-232001 17 59 33.00 -23 20 00.96 11.66 QORGCAT
36 [WBH2005] G6.416+0.164 17 59 33.00 -23 19 48.00 11.79 WBHGP6CM
37 [WBH2005] G6.169+0.067 17 59 22.99 -23 35 30.84 11.80 WBHGP6CM
MAGPIS Discrete G6.16979+0.066 17 59 22.99 -23 35 30.84 11.80 MAGPIS
38 NVSS J175903-231449 17 59 03.19 -23 14 48.84 11.93 NVSS
39 NVSS J175927-231741 17 59 27.19 -23 17 40.92 12.13 NVSS
40 NVSS J175934-233300 17 59 34.70 -23 33 01.08 12.13 NVSS
41 [WBH2005] G6.425+0.165 17 59 33.91 -23 19 18.84 12.24 WBHGP6CM
42 V5171 Sgr 17 58 19.13 -23 36 29.16 12.39 GCVS
43 MAGPIS Discrete G6.28748+0.454 17 58 10.39 -23 17 45.96 12.60 MAGPIS
44 QORG J175935.0-233425 17 59 34.99 -23 34 24.96 13.00 QORGCAT
45 NVSS J175918-233742 17 59 18.41 -23 37 41.88 13.01 NVSS
46 NVSS J175923-231542 17 59 23.71 -23 15 42.84 13.13 NVSS
47 NVSS J175935-233512 17 59 35.50 -23 35 12.12 13.58 NVSS
NVSS J175934-233526 17 59 34.80 -23 35 26.16 13.62 NVSS
48 MAGPIS Discrete G6.46721+0.198 17 59 31.90 -23 16 05.88 14.01 MAGPIS
MAGPIS Discrete G6.47168+0.197 17 59 32.59 -23 15 52.92 14.28 MAGPIS
49 [WBH2005] G6.474+0.166 17 59 40.10 -23 16 41.88 14.96 WBHGP6CM
