Swift-XRT Survey of Fermi Unassociated Sources

These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.
Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

4FGL J1747.9-3224

Field

Detected Excesses

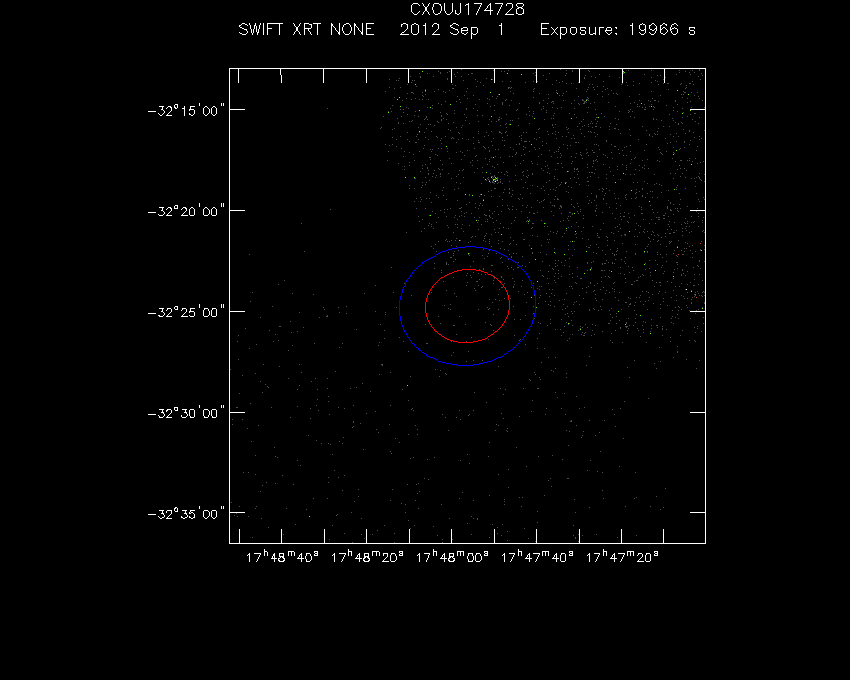

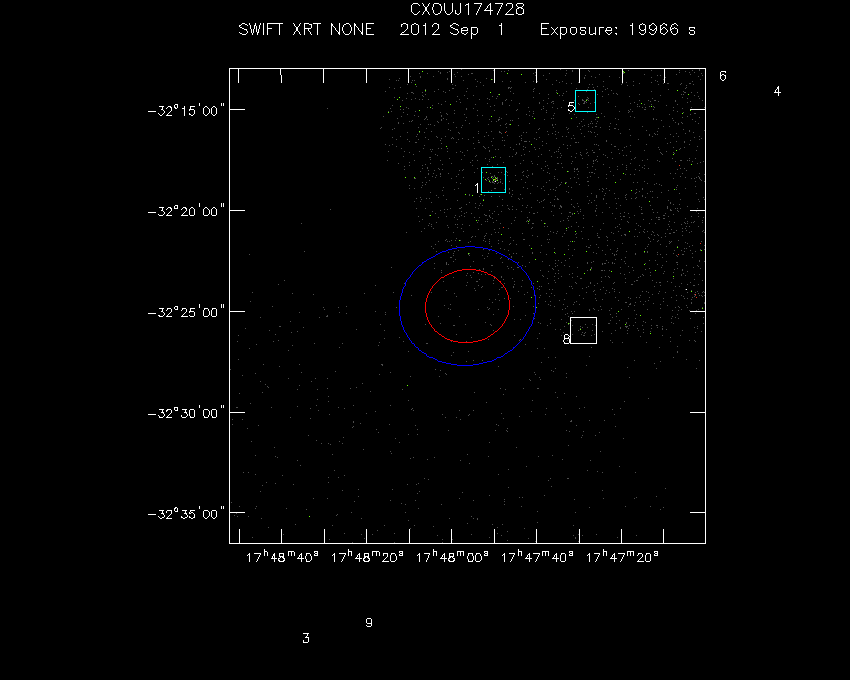

Swift-XRT image of the field for 4FGL J1747.9-3224 Swift-XRT detections in the field for 4FGL J1747.9-3224

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 17 47 50.16 -32 18 29.93 4.02 (4.3 ± 0.6) x 10-3 108 8.141 7.213
2 17 47 28.29 -32 06 10.27 4.26 (2.4 ± 0.4) x 10-3 51 5.404 5.527
3 17 48 31.41 -32 41 02.15 5.49 (1.3 ± 0.3) x 10-3 24 4.584 4.534
4 17 46 40.71 -32 13 53.91 4.11 (1.6 ± 0.4) x 10-3 42 4.609 4.192
5 17 47 28.58 -32 14 35.00 4.41 (1.5 ± 0.4) x 10-3 35 3.560 4.167
6 17 46 53.43 -32 13 07.05 4.19 (1.5 ± 0.4) x 10-3 43 4.176 4.118
7 17 47 37.06 -32 07 04.45 4.37 (1.5 ± 0.4) x 10-3 29 3.424 4.015
8 17 47 28.97 -32 25 58.59 4.76 (1.6 ± 0.4) x 10-3 37 4.110 3.853
9 17 48 16.31 -32 40 13.64 5.59 (9 ± 3) x 10-4 18 3.504 3.368

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 17 46 54.03 -32 05 40.47 4.60 (8 ± 3) x 10-4 18 2.867 2.961
2 17 47 03.10 -32 24 15.57 4.17 (1.0 ± 0.4) x 10-3 47 3.821 2.895
3 17 47 18.49 -32 25 40.95 4.42 (9 ± 3) x 10-4 39 2.871 2.778
4 17 47 47.41 -32 23 21.53 4.69 (8 ± 3) x 10-4 46 2.634 2.462
5 17 47 52.04 -32 20 15.97 4.33 (8 ± 3) x 10-4 46 3.172 2.387
6 17 46 53.44 -32 13 07.22 4.19 (6 ± 3) x 10-4 43 2.670 2.310
7 17 47 02.75 -32 24 17.41 4.16 (6 ± 3) x 10-4 50 2.820 2.108
8 17 46 57.71 -32 24 45.20 4.23 (5 ± 3) x 10-4 34 3.163 1.907

X-Ray and Gamma Ray Catalogs

More Catalogs
Swift-XRT image with known X-ray and gamma ray sources for 4FGL J1747.9-3224 Swift-XRT image with known radio, optical and UV sources for 4FGL J1747.9-3224

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 4XMM J174751.6-322157 17 47 51.65 -32 21 57.24 2.97 XMM-NEWTON
2 4XMMs J174815.6-322602 17 48 15.62 -32 26 02.04 4.28 XMM-NEWTON
4XMM J174815.6-322601 17 48 15.65 -32 26 01.68 4.28 XMM-NEWTON
3 4XMMs J174751.3-322023 17 47 51.31 -32 20 23.64 4.49 XMM-NEWTON
4XMM J174751.3-322023 17 47 51.36 -32 20 23.28 4.49 XMM-NEWTON
4 4XMM J174813.1-322147 17 48 13.13 -32 21 47.52 4.63 XMM-NEWTON
4XMMs J174813.1-322147 17 48 13.15 -32 21 47.16 4.64 XMM-NEWTON
5 4XMM J174741.1-322120 17 47 41.18 -32 21 20.16 4.68 XMM-NEWTON
4XMMs J174741.2-322118 17 47 41.28 -32 21 18.72 4.68 XMM-NEWTON
6 4XMMs J174740.2-322810 17 47 40.20 -32 28 10.20 4.81 XMM-NEWTON
7 4XMM J174817.0-322130 17 48 17.02 -32 21 30.60 5.45 XMM-NEWTON
8 4XMMs J174729.9-322603 17 47 29.90 -32 26 03.84 5.72 XMM-NEWTON
4XMM J174729.8-322603 17 47 29.88 -32 26 03.12 5.72 XMM-NEWTON
9 4XMM J174753.3-321904 17 47 53.35 -32 19 04.08 5.72 XMM-NEWTON
4XMMs J174753.4-321903 17 47 53.40 -32 19 03.36 5.73 XMM-NEWTON
10 4XMMs J174750.1-321835 17 47 50.11 -32 18 35.64 6.30 XMM-NEWTON
4XMM J174750.0-321835 17 47 50.09 -32 18 35.64 6.30 XMM-NEWTON
11 4XMMs J174810.0-321840 17 48 10.03 -32 18 40.32 6.74 XMM-NEWTON
12 4XMMs J174813.8-321801 17 48 13.82 -32 18 01.80 7.68 XMM-NEWTON
13 4XMM J174754.3-321644 17 47 54.38 -32 16 44.76 8.02 XMM-NEWTON
4XMMs J174754.4-321644 17 47 54.46 -32 16 44.04 8.03 XMM-NEWTON
4XMMs J174753.3-321629 17 47 53.35 -32 16 29.28 8.29 XMM-NEWTON
14 4XMMs J174801.1-321629 17 48 01.20 -32 16 29.28 8.33 XMM-NEWTON
4XMM J174801.1-321629 17 48 01.13 -32 16 29.28 8.34 XMM-NEWTON
15 4XMM J174807.1-321623 17 48 07.15 -32 16 23.88 8.67 XMM-NEWTON
4XMMs J174807.1-321623 17 48 07.15 -32 16 23.16 8.68 XMM-NEWTON
16 4XMMs J174747.5-321609 17 47 47.59 -32 16 09.12 8.80 XMM-NEWTON
4XMM J174747.5-321608 17 47 47.59 -32 16 08.76 8.80 XMM-NEWTON
17 4XMM J174722.3-321933 17 47 22.39 -32 19 33.24 8.85 XMM-NEWTON
4XMMs J174722.3-321933 17 47 22.32 -32 19 33.24 8.86 XMM-NEWTON
18 4XMMs J174801.2-321542 17 48 01.27 -32 15 42.48 9.11 XMM-NEWTON
4XMM J174801.2-321541 17 48 01.25 -32 15 41.04 9.13 XMM-NEWTON
19 4XMMs J174816.9-321642 17 48 16.97 -32 16 42.60 9.16 XMM-NEWTON
4XMM J174816.9-321640 17 48 16.99 -32 16 40.44 9.19 XMM-NEWTON
20 X174726.28-321746.0 17 47 26.28 -32 17 45.96 9.43 CHANDRA
2CXO J174726.4-321743 17 47 26.45 -32 17 43.80 9.44 CHANDRA
X174726.10-321745.6 17 47 26.11 -32 17 45.60 9.47 CHANDRA
4XMM J174726.2-321743 17 47 26.28 -32 17 43.08 9.47 XMM-NEWTON
4XMMs J174726.3-321743 17 47 26.30 -32 17 43.08 9.47 XMM-NEWTON
21 4XMM J174731.5-321621 17 47 31.54 -32 16 21.72 9.89 XMM-NEWTON
4XMMs J174731.4-321621 17 47 31.49 -32 16 21.72 9.90 XMM-NEWTON
22 4XMM J174721.1-321810 17 47 21.19 -32 18 10.44 9.91 XMM-NEWTON
4XMMs J174721.0-321811 17 47 21.07 -32 18 11.16 9.92 XMM-NEWTON
23 4XMM J174711.9-322115 17 47 11.98 -32 21 15.48 9.99 XMM-NEWTON
4XMMs J174711.9-322115 17 47 11.95 -32 21 15.12 9.99 XMM-NEWTON
24 4XMM J174726.7-321653 17 47 26.71 -32 16 53.76 10.04 XMM-NEWTON
25 4XMM J174805.1-321452 17 48 05.14 -32 14 53.16 10.05 XMM-NEWTON
4XMMs J174805.1-321452 17 48 05.16 -32 14 52.80 10.05 XMM-NEWTON
26 4XMMs J174715.4-321910 17 47 15.46 -32 19 10.92 10.27 XMM-NEWTON
4XMM J174715.4-321909 17 47 15.43 -32 19 09.84 10.28 XMM-NEWTON
27 4XMM J174743.5-321446 17 47 43.54 -32 14 45.96 10.34 XMM-NEWTON
4XMMs J174743.5-321445 17 47 43.58 -32 14 45.60 10.35 XMM-NEWTON
28 4XMMs J174714.8-321840 17 47 14.86 -32 18 41.04 10.65 XMM-NEWTON
4XMM J174714.8-321840 17 47 14.83 -32 18 41.04 10.65 XMM-NEWTON
29 4XMM J174718.6-321739 17 47 18.67 -32 17 39.12 10.66 XMM-NEWTON
4XMMs J174718.6-321737 17 47 18.67 -32 17 37.68 10.67 XMM-NEWTON
4XMM J174726.1-321555 17 47 26.14 -32 15 55.44 10.89 XMM-NEWTON
4XMMs J174726.1-321555 17 47 26.14 -32 15 55.44 10.89 XMM-NEWTON
30 2CXO J174725.4-321556 17 47 25.39 -32 15 56.16 10.97 CHANDRA
31 4XMMs J174746.2-321358 17 47 46.30 -32 13 58.80 10.98 XMM-NEWTON
4XMM J174746.2-321358 17 47 46.27 -32 13 58.44 10.99 XMM-NEWTON
32 4XMMs J174826.3-321530 17 48 26.33 -32 15 30.60 11.22 XMM-NEWTON
4XMM J174725.6-321533 17 47 25.63 -32 15 33.48 11.25 XMM-NEWTON
4XMM J174826.3-321528 17 48 26.35 -32 15 28.44 11.25 XMM-NEWTON
33 4XMM J174705.2-322122 17 47 05.26 -32 21 21.96 11.29 XMM-NEWTON
4XMMs J174705.0-322123 17 47 05.09 -32 21 23.40 11.32 XMM-NEWTON
34 4XMM J174738.9-321348 17 47 38.93 -32 13 48.36 11.55 XMM-NEWTON
4XMMs J174738.9-321347 17 47 38.93 -32 13 48.00 11.56 XMM-NEWTON
35 CXOGSG J174728.9-321442 17 47 28.92 -32 14 42.00 11.60 CHANDRA
4XMMs J174728.9-321441 17 47 28.97 -32 14 41.64 11.60 XMM-NEWTON
2CXO J174728.9-321441 17 47 28.94 -32 14 41.64 11.60 CHANDRA
4XMM J174728.9-321441 17 47 28.97 -32 14 41.64 11.60 XMM-NEWTON
CXOGBS J174728.9-321441 17 47 28.94 -32 14 41.28 11.61 CHANDRA
X174728.91-321441.3 17 47 28.92 -32 14 41.28 11.61 CHANDRA
X174727.93-321445.9 17 47 27.94 -32 14 45.96 11.65 CHANDRA
X174728.03-321443.2 17 47 28.03 -32 14 43.08 11.68 CHANDRA
36 4XMM J174708.8-321835 17 47 08.90 -32 18 35.28 11.76 XMM-NEWTON
4XMMs J174708.8-321835 17 47 08.88 -32 18 34.92 11.76 XMM-NEWTON
37 4XMM J174714.5-321632 17 47 14.54 -32 16 32.88 12.05 XMM-NEWTON
38 4XMM J174701.2-321928 17 47 01.30 -32 19 27.84 12.76 XMM-NEWTON
4XMMs J174701.2-321926 17 47 01.20 -32 19 26.76 12.79 XMM-NEWTON
4XMM J174708.2-321506 17 47 08.28 -32 15 06.84 13.99 XMM-NEWTON
4XMMs J174708.2-321506 17 47 08.28 -32 15 06.48 14.00 XMM-NEWTON
4XMM J174708.2-321506 17 47 08.26 -32 15 06.48 14.00 XMM-NEWTON
39 2CXO J174708.0-321507 17 47 08.09 -32 15 07.20 14.02 CHANDRA
40 X174704.91-321437.8 17 47 04.92 -32 14 37.68 14.84 CHANDRA
2CXO J174704.9-321436 17 47 04.97 -32 14 36.60 14.85 CHANDRA
X174704.86-321437.2 17 47 04.87 -32 14 37.32 14.86 CHANDRA
4XMMs J174704.9-321435 17 47 04.92 -32 14 35.52 14.87 XMM-NEWTON
4XMM J174704.8-321435 17 47 04.87 -32 14 35.16 14.88 XMM-NEWTON
41 X174700.22-321424.5 17 47 00.22 -32 14 24.36 15.73 CHANDRA
4XMM J174700.1-321422 17 47 00.19 -32 14 22.92 15.75 XMM-NEWTON
4XMMs J174700.1-321422 17 47 00.19 -32 14 22.92 15.75 XMM-NEWTON
2CXO J174700.0-321423 17 47 00.07 -32 14 24.00 15.76 CHANDRA
4XMM J174700.1-321422 17 47 00.10 -32 14 23.28 15.76 XMM-NEWTON
2CXO J174701.1-321358 17 47 01.18 -32 13 58.80 15.86 CHANDRA
4XMMs J174700.9-321359 17 47 00.91 -32 13 59.52 15.90 XMM-NEWTON
4XMM J174700.8-321358 17 47 00.89 -32 13 58.80 15.91 XMM-NEWTON
42 4XMMs J174659.7-321332 17 46 59.74 -32 13 32.52 16.39 XMM-NEWTON

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 NVSS J174816-322511 17 48 16.70 -32 25 10.92 4.33 NVSS
2 HD 318339 17 47 55.37 -32 19 18.84 5.45 HDEC
3 HD 318342 17 47 41.81 -32 29 36.24 5.73 HDEC
TGSSADR J174738.2-321925 17 47 38.21 -32 19 24.96 6.56 GMRTAS150M
4 NVSS J174738-321921 17 47 38.11 -32 19 22.08 6.62 NVSS
MGPS J174738-321918 17 47 37.99 -32 19 18.84 6.67 MGPS2
5 NVSS J174814-321803 17 48 14.40 -32 18 02.88 7.72 NVSS
6 HD 318340 17 47 30.58 -32 19 06.24 7.84 HDEC
7 HD 318429 17 48 36.72 -32 26 48.84 8.78 HDEC
8 HD 318343 17 47 09.65 -32 25 39.00 9.88 HDEC
9 NVSS J174720-323106 17 47 20.21 -32 31 05.88 9.91 NVSS
10 NVSS J174728-321546 17 47 28.51 -32 15 46.08 10.74 NVSS
11 HD 318337 17 47 46.30 -32 13 58.80 10.98 HDEC
12 HD 318341 17 47 11.88 -32 18 56.88 11.03 HDEC
13 HD 318430 17 48 39.36 -32 31 17.04 11.19 HDEC
14 HD 318338 17 47 52.34 -32 13 17.40 11.50 HDEC
15 NVSS J174705-321739 17 47 06.00 -32 17 39.84 12.77 NVSS
MGPS J174705-321735 17 47 05.90 -32 17 35.16 12.83 MGPS2
16 HD 318336 17 47 00.50 -32 14 02.76 15.92 HDEC
WDS J17470-3214 17 47 00.00 -32 13 59.88 16.03 WDS
