Swift-XRT Survey of Fermi Unassociated Sources

These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.
Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

4FGL J1653.0+3640

Field

Detected Excesses

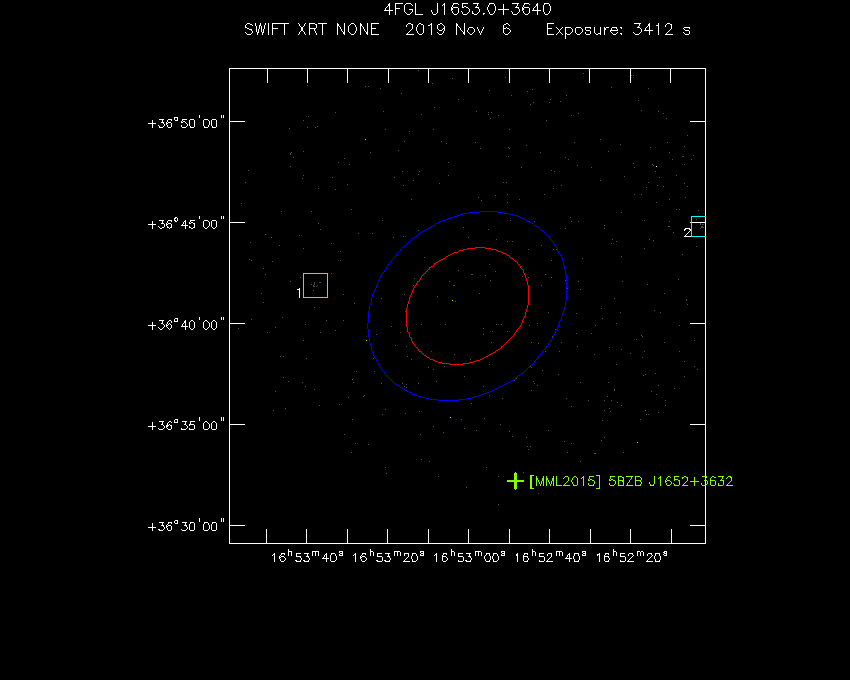

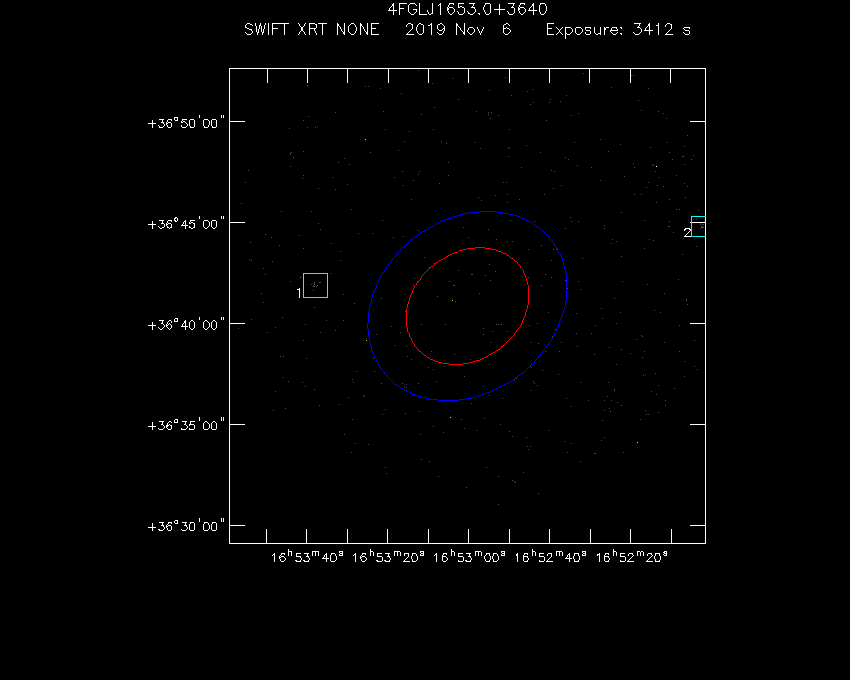

Swift-XRT image of the field for 4FGL J1653.0+3640 Swift-XRT detections in the field for 4FGL J1653.0+3640

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 16 53 37.98 +36 41 54.78 6.04 (6 ± 2) x 10-3 20 4.217 4.138
2 16 52 02.35 +36 44 47.46 5.64 (6 ± 2) x 10-3 20 4.107 4.037

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 16 52 13.89 +36 47 47.53 7.27 (2.6 ± 1.1) x 10-3 8 2.538 2.311

X-Ray and Gamma Ray Catalogs

More Catalogs

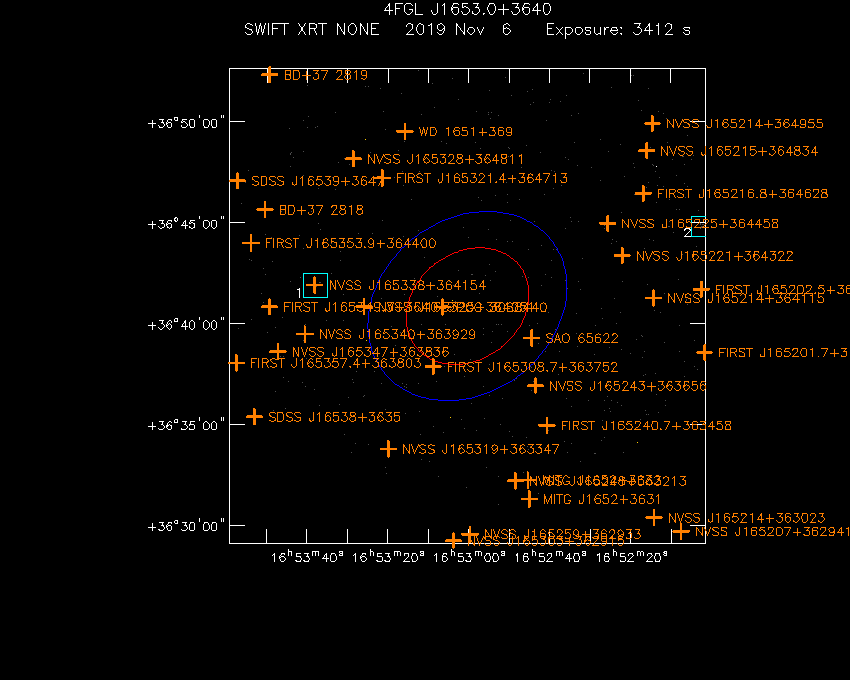

Swift-XRT image with known X-ray and gamma ray sources for 4FGL J1653.0+3640 Swift-XRT image with known radio, optical and UV sources for 4FGL J1653.0+3640

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 [MML2015] 5BZB J1652+3632 16 52 48.46 +36 32 12.48 9.00

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 PGC 3088440 16 53 06.50 +36 40 50.16 1.24 PGC2003
2 FIRST J165308.7+363752 16 53 08.81 +36 37 53.04 3.45 FIRST
3 SAO 65622 16 52 44.42 +36 39 18.00 3.56 SAO
HIP 82572 16 52 44.28 +36 39 19.08 3.58 HIPPARCOS
BD+36 2793 16 52 44.23 +36 39 20.16 3.58 ACRS
PPM 79732 16 52 44.26 +36 39 19.08 3.59 PPM
SAO 65622 16 52 44.26 +36 39 18.72 3.59 HIC
4 NVSS J165325+364051 16 53 25.90 +36 40 50.88 5.12 NVSS
FIRST J165243.4+363700 16 52 43.51 +36 37 00.84 5.14 FIRST
QORG J165243.4+363700 16 52 43.39 +36 37 00.12 5.16 QORGCAT
5 NVSS J165243+363656 16 52 43.51 +36 36 56.16 5.19 NVSS
QORG J165326.4+364051 16 53 26.40 +36 40 50.88 5.23 QORGCAT
6 FIRST J165240.7+363458 16 52 40.70 +36 34 58.08 7.10 FIRST
WN 1651.8+3646 16 53 37.61 +36 42 00.00 7.55 WENSS
QORG J165338.0+364154 16 53 37.99 +36 41 53.88 7.62 QORGCAT
7 FIRST J165321.4+364713 16 53 21.41 +36 47 13.92 7.63 FIRST
FIRST J165338.0+364154 16 53 38.11 +36 41 54.96 7.64 FIRST
8 NVSS J165338+364154 16 53 38.11 +36 41 54.96 7.64 NVSS
FIRST J165222.1+364321 16 52 22.10 +36 43 21.00 8.05 FIRST
FIRST J165319.4+363347 16 53 19.39 +36 33 47.16 8.07 FIRST
9 NVSS J165225+364458 16 52 25.61 +36 44 58.92 8.09 NVSS
10 NVSS J165221+364322 16 52 22.01 +36 43 23.16 8.09 NVSS
11 NVSS J165319+363347 16 53 19.90 +36 33 47.88 8.10 NVSS
FIRST J165320.4+363350 16 53 20.40 +36 33 50.04 8.12 FIRST
QORG J165225.1+364453 16 52 25.10 +36 44 53.16 8.12 QORGCAT
FIRST J165225.1+364453 16 52 25.10 +36 44 53.88 8.12 FIRST
FIRST J165340.5+363930 16 53 40.51 +36 39 30.96 8.17 FIRST
12 NVSS J165340+363929 16 53 40.51 +36 39 29.16 8.17 NVSS
FIRST J165220.8+364321 16 52 20.81 +36 43 21.00 8.30 FIRST
FIRST J165248.9+363223 16 52 48.91 +36 32 22.92 8.80 FIRST
TGSSADR J165248.6+363214 16 52 48.60 +36 32 15.00 8.96 GMRTAS150M
13 NVSS J165248+363213 16 52 48.50 +36 32 12.84 8.98 NVSS
[MML2015] 5BZB J1652+3632 16 52 48.41 +36 32 12.84 9.00 ROMABZCAT
FIRST J165248.4+363212 16 52 48.41 +36 32 12.84 9.00 FIRST
WN 1651.0+3637 16 52 48.79 +36 32 11.04 9.00 WENSS
QORG J165248.4+363212 16 52 48.41 +36 32 12.12 9.01 QORGCAT
SDSS J16528+3632 16 52 48.41 +36 32 12.12 9.01 VERONCAT
FIRST J165214.8+364109 16 52 14.81 +36 41 08.88 9.13 FIRST
14 MITG J1652+3632 16 52 45.41 +36 32 15.00 9.14 MITGB6CM
WN 1651.7+3652 16 53 28.20 +36 48 07.92 9.15 WENSS
TGSSADR J165328.3+364808 16 53 28.39 +36 48 09.00 9.18 GMRTAS150M
15 WD 1651+369 16 53 15.84 +36 49 32.88 9.20 MCKSION
FIRST J165328.3+364811 16 53 28.30 +36 48 11.88 9.21 FIRST
16 NVSS J165328+364811 16 53 28.61 +36 48 11.16 9.24 NVSS
17 NVSS J165214+364115 16 52 14.30 +36 41 16.08 9.25 NVSS
1651+3636 16 52 49.10 +36 31 54.12 9.27 NORTH6CM
GB6 J1652+3631 16 52 48.79 +36 31 49.08 9.36 GB6
18 NVSS J165347+363836 16 53 47.21 +36 38 36.96 9.66 NVSS
19 FIRST J165349.3+364049 16 53 49.30 +36 40 50.16 9.82 FIRST
20 MITG J1652+3631 16 52 45.10 +36 31 18.84 10.04 MITGB6CM
21 FIRST J165216.8+364628 16 52 16.80 +36 46 27.84 10.35 FIRST
22 BD+37 2818 16 53 50.50 +36 45 39.60 11.13 ACRS
PPM 79750 16 53 50.54 +36 45 39.60 11.14 PPM
SAO 65638 16 53 50.59 +36 45 39.60 11.15 SAO
QORG J165353.9+364400 16 53 53.90 +36 43 59.88 11.18 QORGCAT
23 FIRST J165353.9+364400 16 53 53.90 +36 43 59.88 11.19 FIRST
QORG J165259.4+362936 16 52 59.40 +36 29 35.88 11.29 QORGCAT
24 NVSS J165259+362933 16 52 59.71 +36 29 34.08 11.32 NVSS
FIRST J165259.3+362933 16 52 59.40 +36 29 34.08 11.32 FIRST
25 FIRST J165202.5+364142 16 52 02.50 +36 41 42.00 11.62 FIRST
26 NVSS J165303+362915 16 53 03.79 +36 29 15.00 11.65 NVSS
FIRST J165303.7+362911 16 53 03.70 +36 29 11.04 11.72 FIRST
27 NVSS J165215+364834 16 52 15.91 +36 48 34.92 11.77 NVSS
FIRST J165215.8+364834 16 52 15.91 +36 48 34.92 11.77 FIRST
28 FIRST J165357.4+363803 16 53 57.50 +36 38 03.12 11.80 FIRST
29 SDSS J16538+3635 16 53 52.99 +36 35 22.92 11.91 VERONCAT
30 FIRST J165201.7+363833 16 52 01.70 +36 38 34.08 11.98 FIRST
31 NVSS J165214+364955 16 52 14.50 +36 49 55.92 12.88 NVSS
FIRST J165215.0+365009 16 52 15.10 +36 50 08.88 12.97 FIRST
32 SDSS J16539+3647 16 53 57.29 +36 47 04.92 12.99 VERONCAT
7C 165028.1+363525 16 52 14.59 +36 30 29.16 13.87 UC7C151MHZ
TGSSADR J165214.3+363024 16 52 14.30 +36 30 24.84 13.96 GMRTAS150M
WN 1650.4+3635 16 52 14.30 +36 30 24.12 13.98 WENSS
33 NVSS J165214+363023 16 52 14.30 +36 30 23.04 13.98 NVSS
FIRST J165214.2+363023 16 52 14.30 +36 30 24.12 13.98 FIRST
QORG J165214.2+363022 16 52 14.21 +36 30 21.96 14.01 QORGCAT
34 BD+37 2819 16 53 49.34 +36 52 20.64 15.09 ACRS
PPM 79749 16 53 49.34 +36 52 21.00 15.09 PPM
SAO 65636 16 53 49.46 +36 52 21.00 15.11 SAO
35 NVSS J165207+362941 16 52 07.61 +36 29 42.00 15.41 NVSS
