Swift-XRT Survey of Fermi Unassociated Sources


These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.


Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

3FGL J1748.0+2701

Field

Detected Excesses

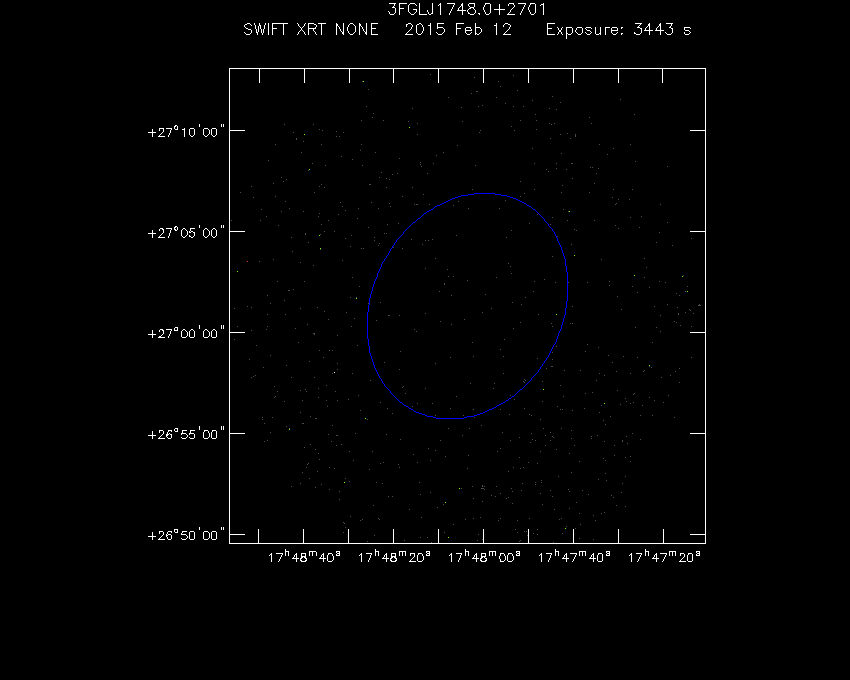

Swift-XRT image of the field for 3FGL J1748.0+2701 Swift-XRT detections in the field for 3FGL J1748.0+2701


No detected excesses found.

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 17 48 00.40 +26 52 16.85 6.41 (3.2 ± 1.2) x 10-3 14 2.835 2.760
2 17 48 33.23 +26 58 03.22 6.52 (2.8 ± 1.1) x 10-3 11 2.603 2.508
3 17 47 14.77 +27 02 10.37 6.12 (2.8 ± 1.2) x 10-3 9 2.288 2.285
4 17 47 17.20 +27 00 27.71 6.31 (2.5 ± 1.1) x 10-3 10 2.278 2.267

X-Ray and Gamma Ray Catalogs

More Catalogs

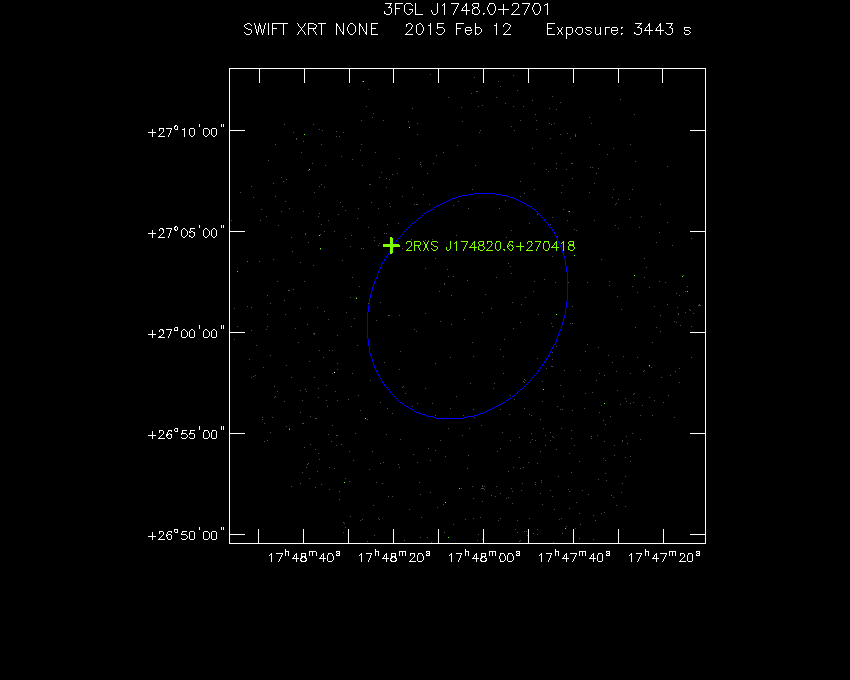

Swift-XRT image with known X-ray and gamma ray sources for 3FGL J1748.0+2701 Swift-XRT image with known radio, optical and UV sources for 3FGL J1748.0+2701

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 2RXS J174820.6+270418 17 48 20.59 +27 04 18.84 4.83 ROSAT
2RXS J174820.6+270418 17 48 20.59 +27 04 18.84 4.83 ROSAT
1RXS J174822.0+270408 17 48 21.98 +27 04 08.40 4.97 ROSAT

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 NVSS J174753+270443 17 47 53.71 +27 04 44.04 4.06 NVSS
2 1746+2704 17 48 18.50 +27 04 00.12 4.26 NORTH6CM
3 NVSS J174816+270433 17 48 16.70 +27 04 33.96 4.37 NVSS
GB6 J1748+2704 17 48 17.30 +27 04 27.84 4.38 GB6
TGSSADR J174804.6+265654 17 48 04.70 +26 56 54.96 4.41 GMRTAS150M
4 NVSS J174805+265637 17 48 05.50 +26 56 38.04 4.71 NVSS
TGSSADR J174805.9+265629 17 48 06.00 +26 56 30.12 4.85 GMRTAS150M
VLSSr J174805.2+265625 17 48 05.21 +26 56 26.16 4.91 VLSSR
5 NVSS J174827+270247 17 48 27.19 +27 02 48.12 5.45 NVSS
GB6 J1747+2707 17 47 43.90 +27 07 23.16 7.48 GB6
6 NVSS J174744+270742 17 47 44.40 +27 07 42.96 7.69 NVSS
TGSSADR J174744.3+270742 17 47 44.40 +27 07 42.96 7.69 GMRTAS150M
7 NVSS J174824+270856 17 48 24.19 +27 08 56.04 8.89 NVSS
8 NVSS J174822+265252 17 48 22.70 +26 52 53.04 9.46 NVSS
9 NVSS J174849+270500 17 48 49.70 +27 04 59.88 10.91 NVSS
10 NVSS J174726+271107 17 47 26.11 +27 11 07.08 12.87 NVSS
