Swift-XRT Survey of Fermi Unassociated Sources

These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.
Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

3FGL J1736.5-2839

Field

Detected Excesses

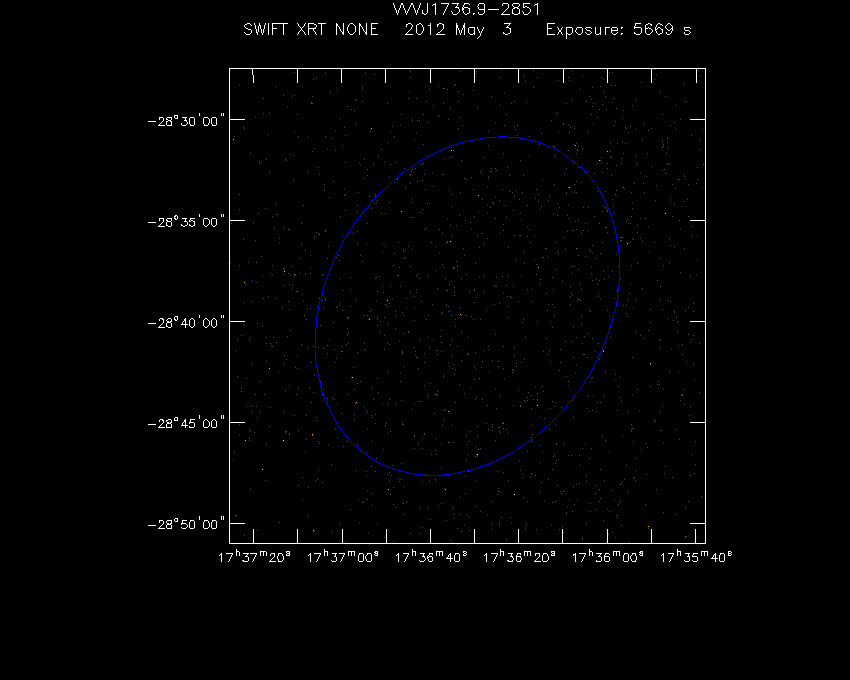

Swift-XRT image of the field for 3FGL J1736.5-2839 Swift-XRT detections in the field for 3FGL J1736.5-2839


No detected excesses found.

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 17 35 46.89 -28 31 15.64 5.59 (2.1 ± 0.8) x 10-3 16 2.625 2.768
2 17 37 12.30 -28 37 35.35 5.70 (1.7 ± 0.7) x 10-3 14 2.706 2.364

X-Ray and Gamma Ray Catalogs

More Catalogs

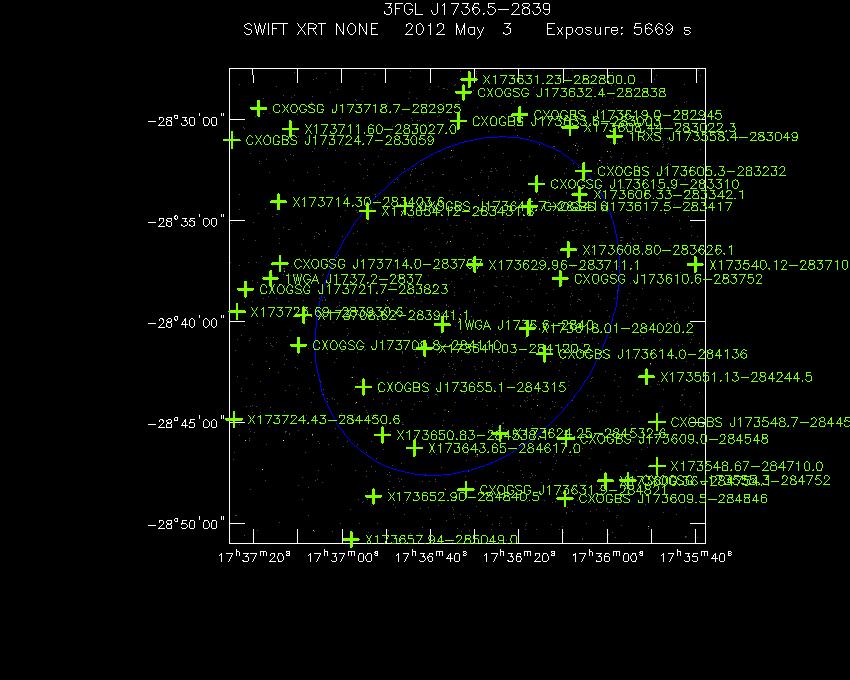

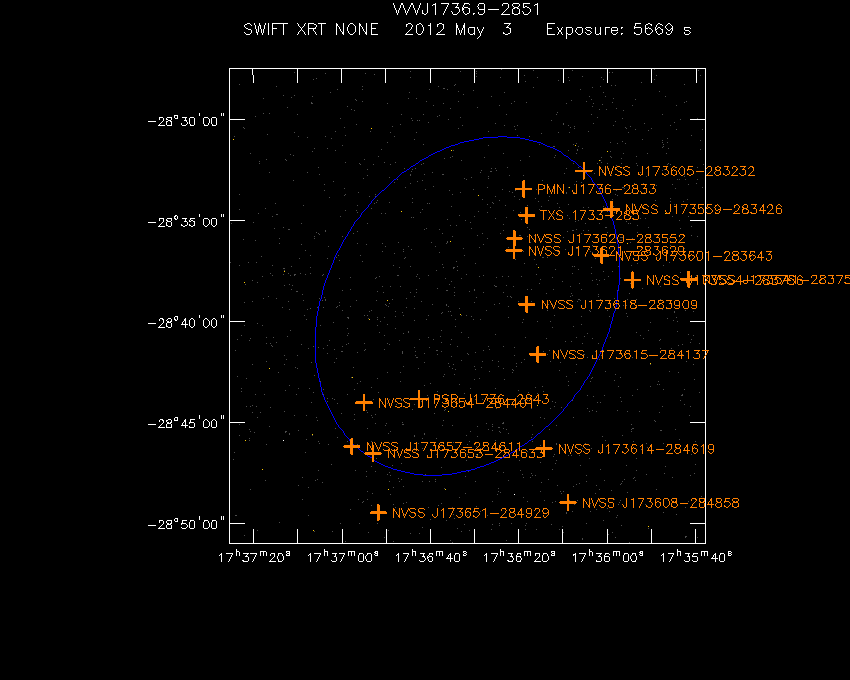

Swift-XRT image with known X-ray and gamma ray sources for 3FGL J1736.5-2839 Swift-XRT image with known radio, optical and UV sources for 3FGL J1736.5-2839

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 1WGA J1736.6-2840 17 36 37.30 -28 40 09.84 1.55 ROSAT
2 X173629.96-283711.1 17 36 29.95 -28 37 11.28 2.09 CHANDRA
CXOGBS J173629.9-283710 17 36 29.95 -28 37 10.92 2.09 CHANDRA
CXOGSG J173629.9-283709 17 36 29.93 -28 37 09.12 2.12 CHANDRA
3 X173641.03-284120.2 17 36 41.30 -28 41 20.04 2.94 CHANDRA
4 X173618.01-284020.2 17 36 18.10 -28 40 20.28 3.18 CHANDRA
CXOGBS J173617.2-284006 17 36 17.23 -28 40 06.60 3.27 CHANDRA
CXOGSG J173617.1-284042 17 36 17.16 -28 40 42.24 3.49 CHANDRA
CXOGBS J173617.1-284042 17 36 17.16 -28 40 42.24 3.49 CHANDRA
X173617.15-284042.3 17 36 17.16 -28 40 42.24 3.49 CHANDRA
5 CXOGBS J173614.0-284136 17 36 14.11 -28 41 36.60 4.53 CHANDRA
6 CXOGSG J173610.6-283752 17 36 10.63 -28 37 52.32 4.80 CHANDRA
CXOGBS J173610.6-283752 17 36 10.61 -28 37 51.96 4.81 CHANDRA
X173610.60-283752.1 17 36 10.61 -28 37 51.96 4.81 CHANDRA
7 X173608.80-283626.1 17 36 08.81 -28 36 26.28 5.74 CHANDRA
CXOGSG J173608.7-283626 17 36 08.78 -28 36 25.92 5.74 CHANDRA
8 CXOGBS J173617.5-283417 17 36 17.57 -28 34 17.76 5.83 CHANDRA
X173617.57-283417.6 17 36 17.57 -28 34 17.76 5.83 CHANDRA
CXOGSG J173617.5-283417 17 36 17.59 -28 34 17.40 5.83 CHANDRA
9 CXOGBS J173645.7-283416 17 36 45.74 -28 34 16.68 5.85 CHANDRA
10 X173624.25-284532.6 17 36 24.24 -28 45 32.76 6.51 CHANDRA
CXOGBS J173624.2-284532 17 36 24.26 -28 45 32.76 6.51 CHANDRA
CXOGSG J173624.2-284532 17 36 24.22 -28 45 32.76 6.51 CHANDRA
11 CXOGBS J173655.1-284315 17 36 55.13 -28 43 15.60 6.54 CHANDRA
X173655.13-284315.5 17 36 55.13 -28 43 15.60 6.54 CHANDRA
12 X173654.12-283431.8 17 36 54.12 -28 34 31.80 6.83 CHANDRA
13 CXOGSG J173615.9-283310 17 36 15.96 -28 33 10.80 6.96 CHANDRA
X173615.91-283310.0 17 36 15.91 -28 33 10.08 6.98 CHANDRA
CXOGBS J173615.9-283309 17 36 15.91 -28 33 10.08 6.98 CHANDRA
14 X173643.65-284617.0 17 36 43.66 -28 46 17.04 7.52 CHANDRA
CXOGSG J173643.6-284617 17 36 43.66 -28 46 17.04 7.53 CHANDRA
15 X173650.83-284538.1 17 36 50.83 -28 45 38.16 7.66 CHANDRA
CXOGBS J173650.8-284538 17 36 50.83 -28 45 38.16 7.66 CHANDRA
CXOGSG J173650.8-284538 17 36 50.83 -28 45 38.16 7.66 CHANDRA
16 X173606.33-283342.1 17 36 06.34 -28 33 42.12 7.84 CHANDRA
17 X173708.62-283941.1 17 37 08.62 -28 39 41.04 8.13 CHANDRA
CXOGBS J173708.6-283941 17 37 08.62 -28 39 41.04 8.13 CHANDRA
CXOGSG J173708.6-283940 17 37 08.62 -28 39 41.04 8.13 CHANDRA
18 CXOGBS J173609.0-284548 17 36 09.31 -28 45 48.96 8.23 CHANDRA
X173609.02-284548.9 17 36 09.19 -28 45 48.96 8.23 CHANDRA
CXOGSG J173609.0-284549 17 36 09.10 -28 45 49.32 8.24 CHANDRA
19 CXOGSG J173709.8-284110 17 37 09.82 -28 41 10.68 8.60 CHANDRA
CXOGBS J173709.8-284110 17 37 09.82 -28 41 10.68 8.60 CHANDRA
X173709.81-284110.6 17 37 09.82 -28 41 10.68 8.60 CHANDRA
20 CXOGBS J173605.3-283232 17 36 05.35 -28 32 32.28 8.84 CHANDRA
X173605.36-283232.2 17 36 05.35 -28 32 32.28 8.84 CHANDRA
CXOGSG J173605.3-283232 17 36 05.35 -28 32 32.28 8.84 CHANDRA
21 CXOGSG J173631.9-284821 17 36 31.97 -28 48 21.24 9.11 CHANDRA
22 CXOGBS J173633.6-283003 17 36 33.67 -28 30 03.96 9.19 CHANDRA
23 CXOGSG J173714.0-283707 17 37 13.99 -28 37 08.04 9.54 CHANDRA
24 X173551.13-284244.5 17 35 51.12 -28 42 44.64 9.54 CHANDRA
CXOGBS J173551.1-284244 17 35 51.12 -28 42 44.64 9.54 CHANDRA
CXOGSG J173551.1-284244 17 35 51.12 -28 42 44.64 9.55 CHANDRA
X173714.05-283707.5 17 37 14.50 -28 37 07.68 9.55 CHANDRA
25 1WGA J1737.2-2837 17 37 16.10 -28 37 51.96 9.86 ROSAT
26 CXOGBS J173619.0-282945 17 36 19.80 -28 29 45.24 9.88 CHANDRA
27 X173608.44-283022.3 17 36 08.45 -28 30 22.32 10.22 CHANDRA
28 X173652.90-284840.5 17 36 52.90 -28 48 40.68 10.53 CHANDRA
X173652.83-284841.5 17 36 52.82 -28 48 41.40 10.53 CHANDRA
CXOGBS J173652.8-284841 17 36 52.82 -28 48 41.76 10.54 CHANDRA
CXOGSG J173652.8-284841 17 36 52.82 -28 48 41.76 10.54 CHANDRA
29 CXOGSG J173632.4-282838 17 36 32.50 -28 28 38.64 10.60 CHANDRA
X173632.50-282838.8 17 36 32.50 -28 28 38.64 10.60 CHANDRA
1BMW 173653.5-284845 17 36 53.54 -28 48 45.00 10.66 ROSAT
30 CXOGBS J173609.5-284846 17 36 09.53 -28 48 46.80 10.70 CHANDRA
31 X173714.30-283403.6 17 37 14.30 -28 34 03.72 10.71 CHANDRA
32 CXOGBS J173548.7-284458 17 35 48.72 -28 44 58.92 11.02 CHANDRA
33 X173600.36-284754.1 17 36 00.36 -28 47 54.24 11.04 CHANDRA
34 CXOGSG J173721.7-283823 17 37 21.79 -28 38 23.64 11.04 CHANDRA
CXOGBS J173721.8-283823 17 37 21.82 -28 38 24.00 11.05 CHANDRA
X173721.81-283823.9 17 37 21.82 -28 38 24.00 11.05 CHANDRA
35 1RXS J173558.4-283049 17 35 58.39 -28 30 48.96 11.14 ROSAT
36 X173631.23-282800.0 17 36 31.22 -28 28 00.12 11.24 CHANDRA
CXOGBS J173631.2-282800 17 36 31.22 -28 28 00.12 11.24 CHANDRA
CXOGSG J173631.2-282759 17 36 31.27 -28 27 59.76 11.24 CHANDRA
37 X173723.69-283930.6 17 37 23.69 -28 39 30.60 11.43 CHANDRA
CXOGSG J173723.7-283929 17 37 23.74 -28 39 29.88 11.44 CHANDRA
CXOGBS J173723.7-283929 17 37 23.78 -28 39 29.16 11.45 CHANDRA
38 X173540.12-283710.1 17 35 40.13 -28 37 10.20 11.49 CHANDRA
CXOGSG J173540.0-283710 17 35 40.20 -28 37 10.56 11.51 CHANDRA
39 CXOGSG J173555.3-284752 17 35 55.30 -28 47 52.44 11.74 CHANDRA
X173555.22-284752.3 17 35 55.22 -28 47 52.44 11.75 CHANDRA
X173555.06-284755.4 17 35 55.61 -28 47 55.32 11.81 CHANDRA
CXOGBS J173555.0-284755 17 35 55.61 -28 47 55.32 11.81 CHANDRA
40 X173548.67-284710.0 17 35 48.67 -28 47 09.96 12.31 CHANDRA
CXOGBS J173548.6-284710 17 35 48.67 -28 47 10.68 12.31 CHANDRA
41 X173711.60-283027.0 17 37 11.59 -28 30 27.00 12.42 CHANDRA
42 X173724.43-284450.6 17 37 24.43 -28 44 50.64 12.87 CHANDRA
CXOGSG J173724.4-284450 17 37 24.48 -28 44 50.28 12.87 CHANDRA
43 X173657.94-285049.0 17 36 57.94 -28 50 48.84 12.94 CHANDRA
44 CXOGSG J173718.7-282925 17 37 18.72 -28 29 25.44 14.26 CHANDRA
X173718.76-282925.6 17 37 18.77 -28 29 25.44 14.26 CHANDRA
CXOGBS J173718.7-282925 17 37 18.77 -28 29 25.44 14.26 CHANDRA
45 CXOGBS J173724.7-283059 17 37 24.79 -28 30 59.76 14.29 CHANDRA

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 NVSS J173618-283909 17 36 18.19 -28 39 09.00 2.95 NVSS
2 NVSS J173621-283629 17 36 21.10 -28 36 29.16 3.59 NVSS
GCPS 359.212+1.901 17 36 21.41 -28 35 53.16 4.04 GCPS
3 NVSS J173620-283552 17 36 21.00 -28 35 53.16 4.10 NVSS
TGSSADR J173620.9-283551 17 36 21.00 -28 35 52.08 4.10 GMRTAS150M
MGPS J173620-283552 17 36 20.90 -28 35 52.08 4.11 MGPS2
4 NVSS J173615-284137 17 36 15.70 -28 41 38.04 4.24 NVSS
5 PSR J1736-2843 17 36 42.60 -28 43 50.88 5.20 ATNFPULSAR
PSR J1736-2843 17 36 42.60 -28 43 50.88 5.20 PMPULSAR
6 TXS 1733-285 17 36 18.19 -28 34 44.04 5.38 TEXAS
7 PMN J1736-2833 17 36 18.91 -28 33 25.92 6.44 PMN
8 NVSS J173654-284401 17 36 55.01 -28 44 02.04 7.01 NVSS
9 NVSS J173601-283643 17 36 01.30 -28 36 43.92 7.10 NVSS
MGPS J173614-284617 17 36 14.50 -28 46 17.04 7.99 MGPS2
TGSSADR J173614.6-284619 17 36 14.71 -28 46 18.84 7.99 GMRTAS150M
10 NVSS J173614-284619 17 36 14.30 -28 46 18.84 8.04 NVSS
11 NVSS J173554-283756 17 35 54.31 -28 37 57.00 8.30 NVSS
MGPS J173553-283744 17 35 54.00 -28 37 44.04 8.39 MGPS2
12 NVSS J173559-283426 17 35 59.11 -28 34 26.04 8.59 NVSS
13 NVSS J173653-284633 17 36 52.99 -28 46 32.88 8.69 NVSS
GCPS 359.229+1.979 17 36 05.81 -28 32 30.12 8.81 GCPS
TGSSADR J173605.2-283233 17 36 05.21 -28 32 33.00 8.84 GMRTAS150M
14 NVSS J173605-283232 17 36 05.30 -28 32 31.92 8.85 NVSS
MGPS J173605-283232 17 36 05.21 -28 32 33.00 8.86 MGPS2
MGPS J173558-283409 17 35 58.20 -28 34 09.12 8.92 MGPS2
15 NVSS J173657-284611 17 36 57.79 -28 46 12.00 9.02 NVSS
TGSSADR J173609.0-284855 17 36 09.10 -28 48 56.16 10.87 GMRTAS150M
16 NVSS J173608-284858 17 36 08.81 -28 48 59.04 10.95 NVSS
MGPS J173609-284904 17 36 09.31 -28 49 05.16 10.98 MGPS2
17 NVSS J173541-283753 17 35 41.59 -28 37 54.12 11.05 NVSS
18 NVSS J173651-284929 17 36 51.79 -28 49 28.92 11.16 NVSS
