Swift-XRT Survey of Fermi Unassociated Sources


These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.


Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

3FGL J1709.9+4624

Field

Detected Excesses

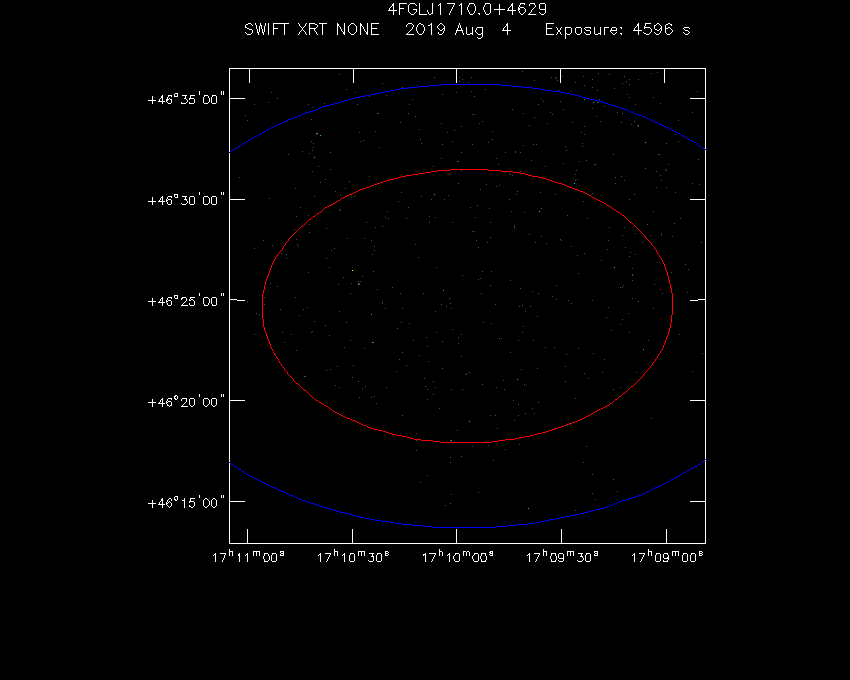

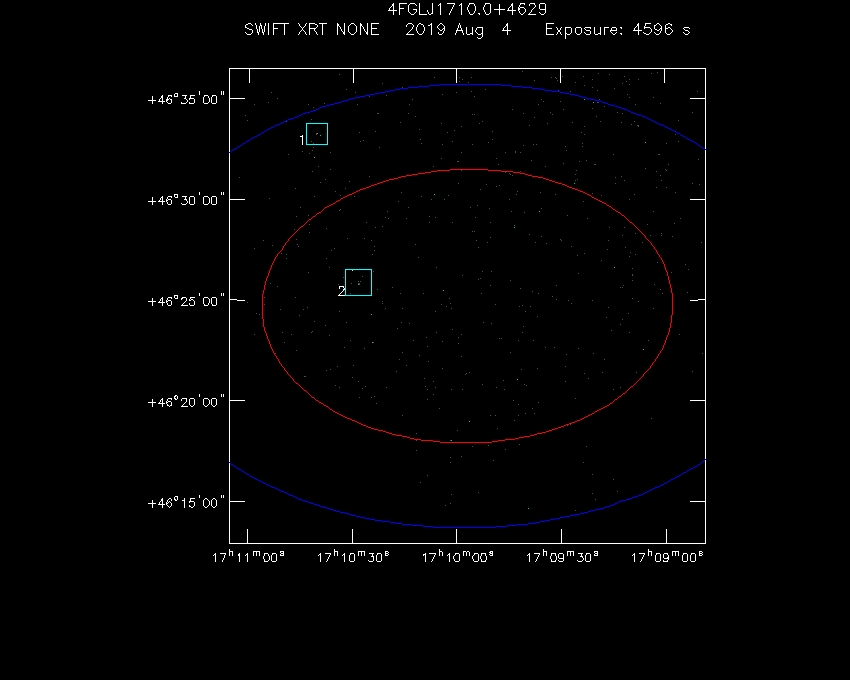

Swift-XRT image of the field for 3FGL J1709.9+4624 Swift-XRT detections in the field for 3FGL J1709.9+4624

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 17 10 40.44 +46 33 18.51 5.59 (7 ± 2) x 10-3 24 4.529 4.431
2 17 10 28.24 +46 25 55.33 5.76 (4.8 ± 1.2) x 10-3 24 4.105 4.062

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 17 09 30.84 +46 36 05.16 6.31 (1.9 ± 0.8) x 10-3 8 2.449 2.249
2 17 09 20.27 +46 37 13.87 5.64 (1.6 ± 0.8) x 10-3 12 2.637 1.896

X-Ray and Gamma Ray Catalogs

More Catalogs

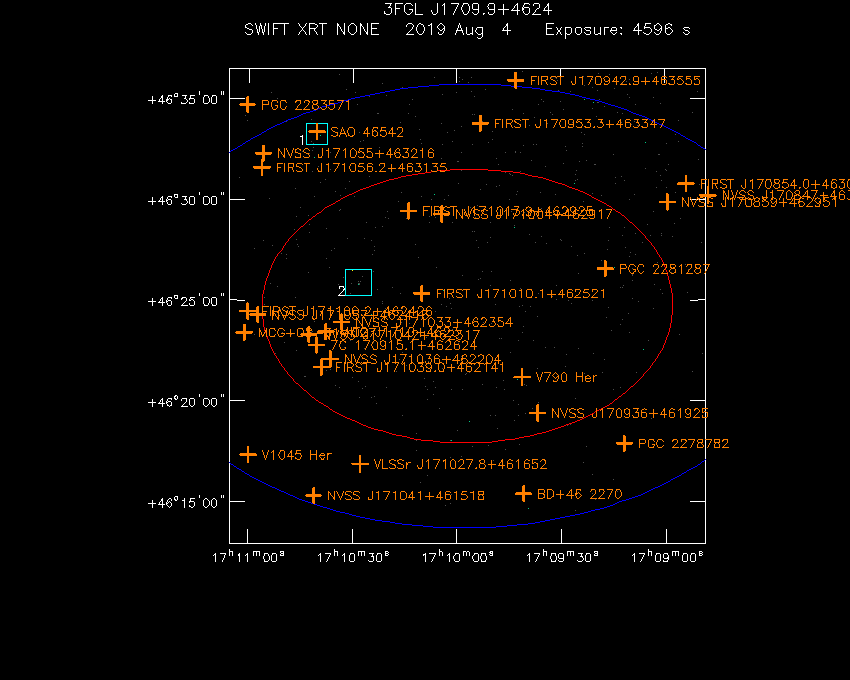

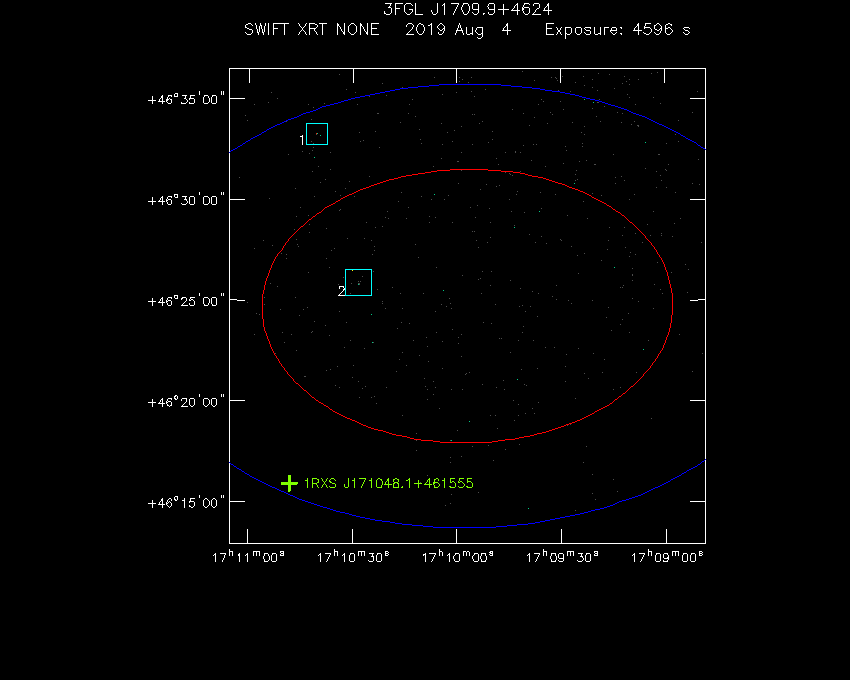

Swift-XRT image with known X-ray and gamma ray sources for 3FGL J1709.9+4624 Swift-XRT image with known radio, optical and UV sources for 3FGL J1709.9+4624

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 1RXS J171048.1+461555 17 10 48.10 +46 15 55.44 12.46 ROSAT
2RXS J171048.1+461553 17 10 48.19 +46 15 54.00 12.49 ROSAT
2RXS J171048.1+461553 17 10 48.19 +46 15 54.00 12.49 ROSAT

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 FIRST J171010.1+462521 17 10 10.10 +46 25 21.00 2.36 FIRST
2 V790 Her 17 09 41.28 +46 21 11.88 4.44 GCVS
3 NVSS J171004+462917 17 10 04.39 +46 29 17.16 4.74 NVSS
FIRST J171004.2+462918 17 10 04.30 +46 29 17.88 4.76 FIRST
QORG J171004.2+462919 17 10 04.20 +46 29 18.96 4.76 QORGCAT
4 FIRST J171013.9+462925 17 10 13.90 +46 29 26.16 5.54 FIRST
5 NVSS J171033+462354 17 10 33.19 +46 23 54.96 6.29 NVSS
QORG J170936.0+461933 17 09 36.00 +46 19 32.88 6.31 QORGCAT
FIRST J170935.9+461931 17 09 36.00 +46 19 32.16 6.33 FIRST
6 NVSS J170936+461925 17 09 36.79 +46 19 24.96 6.33 NVSS
FIRST J170937.3+461914 17 09 37.30 +46 19 14.16 6.45 FIRST
7 PGC 2281287 17 09 17.30 +46 26 34.08 7.08 PGC2003
8 MITG J1710+4623 17 10 37.70 +46 23 26.16 7.14 MITGB6CM
QORG J171035.9+462205 17 10 35.90 +46 22 05.16 7.21 QORGCAT
PGC 2279973 17 10 35.90 +46 22 04.08 7.22 PGC2003
9 NVSS J171036+462204 17 10 36.41 +46 22 05.16 7.29 NVSS
1709+4626 17 10 38.30 +46 23 07.08 7.30 NORTH20CM
1709+4626 17 10 38.30 +46 23 07.08 7.30 NORTH6CM
WN 1709.5+4627A 17 10 38.21 +46 23 02.04 7.30 WENSS
GB6 J1710+4623 17 10 38.81 +46 23 04.92 7.39 GB6
10 7C 170915.1+462624 17 10 40.39 +46 22 46.92 7.73 UC7C151MHZ
11 FIRST J171039.0+462141 17 10 39.00 +46 21 41.04 7.86 FIRST
12 NVSS J171042+462317 17 10 42.60 +46 23 17.88 7.99 NVSS
13 FIRST J170953.3+463347 17 09 53.30 +46 33 47.16 9.09 FIRST
14 VLSSr J171027.8+461652 17 10 27.79 +46 16 53.04 9.48 VLSSR
15 BD+46 2270 17 09 40.85 +46 15 24.84 9.72 ACRS
PPM 55966 17 09 40.87 +46 15 24.12 9.72 PPM
SAO 46527 17 09 40.92 +46 15 22.32 9.75 SAO
WN 1709.5+4627B 17 10 55.70 +46 24 05.04 10.14 WENSS
FIRST J171056.7+462414 17 10 56.71 +46 24 14.04 10.31 FIRST
WN 1709.5+4627 17 10 56.81 +46 24 19.08 10.32 WENSS
16 PGC 2278782 17 09 11.90 +46 17 53.88 10.34 PGC2003
17 NVSS J171057+462416 17 10 57.31 +46 24 16.92 10.41 NVSS
PGC 59762 17 10 58.30 +46 24 20.88 10.58 PGC2003
FIRST J171058.4+462420 17 10 58.39 +46 24 20.88 10.60 FIRST
QORG J171058.4+462421 17 10 58.39 +46 24 20.88 10.60 QORGCAT
18 FIRST J171100.2+462426 17 11 00.19 +46 24 27.00 10.91 FIRST
19 MCG+08-31-027 17 11 01.20 +46 23 24.00 11.15 MCG
20 NVSS J170859+462951 17 08 59.40 +46 29 52.08 11.16 NVSS
21 SAO 46542 17 10 40.34 +46 33 21.24 11.41 SAO
BD+46 2273 17 10 40.32 +46 33 21.60 11.42 ACRS
PPM 55981 17 10 40.34 +46 33 21.60 11.42 PPM
HD 155656 17 10 40.34 +46 33 21.60 11.42 HIC
HIP 84031 17 10 40.32 +46 33 22.32 11.43 HIPPARCOS
22 FIRST J170942.9+463555 17 09 43.01 +46 35 54.96 11.45 FIRST
SAO 46518 17 08 54.94 +46 30 20.16 12.07 SAO
PPM 55957 17 08 54.84 +46 30 19.44 12.08 PPM
HIP 83907 17 08 54.84 +46 30 19.44 12.08 HIPPARCOS
HD 155370 17 08 54.84 +46 30 19.80 12.08 HIC
BD+46 2267 17 08 54.82 +46 30 19.80 12.09 ACRS
WN 1709.2+4618 17 10 40.99 +46 15 18.00 12.10 WENSS
23 NVSS J171041+461518 17 10 41.11 +46 15 19.08 12.10 NVSS
FIRST J171041.1+461515 17 10 41.11 +46 15 15.84 12.15 FIRST
TGSSADR J171041.3+461517 17 10 41.30 +46 15 16.92 12.15 GMRTAS150M
24 FIRST J171056.2+463135 17 10 56.21 +46 31 35.04 12.30 FIRST
25 FIRST J170854.0+463045 17 08 54.00 +46 30 46.08 12.41 FIRST
QORG J170853.9+463046 17 08 53.90 +46 30 46.08 12.43 QORGCAT
WN 1709.5+4635 17 10 55.61 +46 32 15.00 12.60 WENSS
26 NVSS J171055+463216 17 10 55.80 +46 32 17.16 12.64 NVSS
FIRST J171055.6+463220 17 10 55.61 +46 32 20.04 12.65 FIRST
TGSSADR J171055.8+463218 17 10 55.80 +46 32 17.88 12.65 GMRTAS150M
27 NVSS J170847+463011 17 08 47.69 +46 30 11.88 13.12 NVSS
28 V1045 Her 17 10 59.95 +46 17 20.04 13.14 GCVS
29 PGC 2283571 17 11 00.41 +46 34 41.88 14.79 PGC2003
