Swift-XRT Survey of Fermi Unassociated Sources


These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.


Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

3FGL J1316.2-6446

Field

Detected Excesses

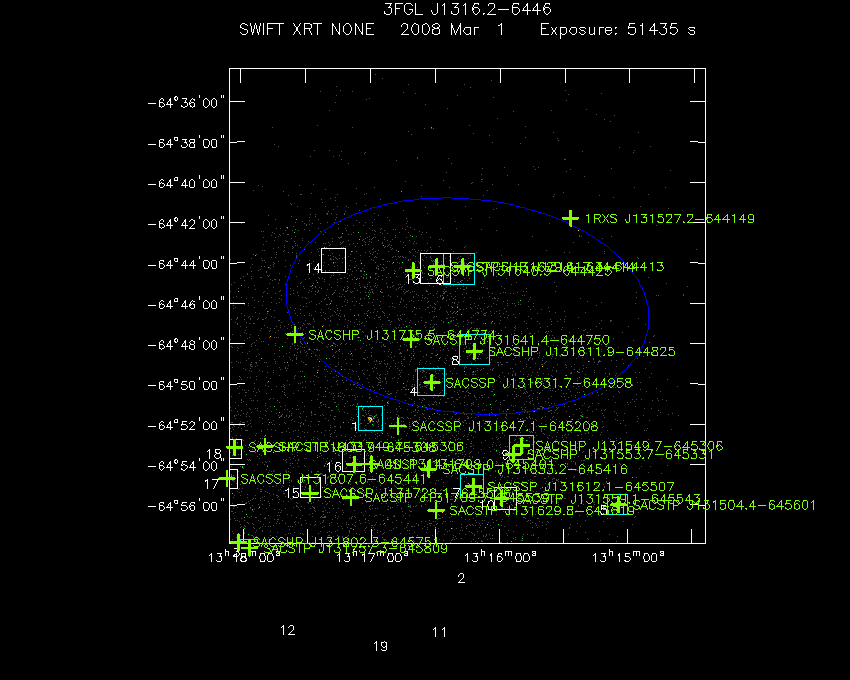

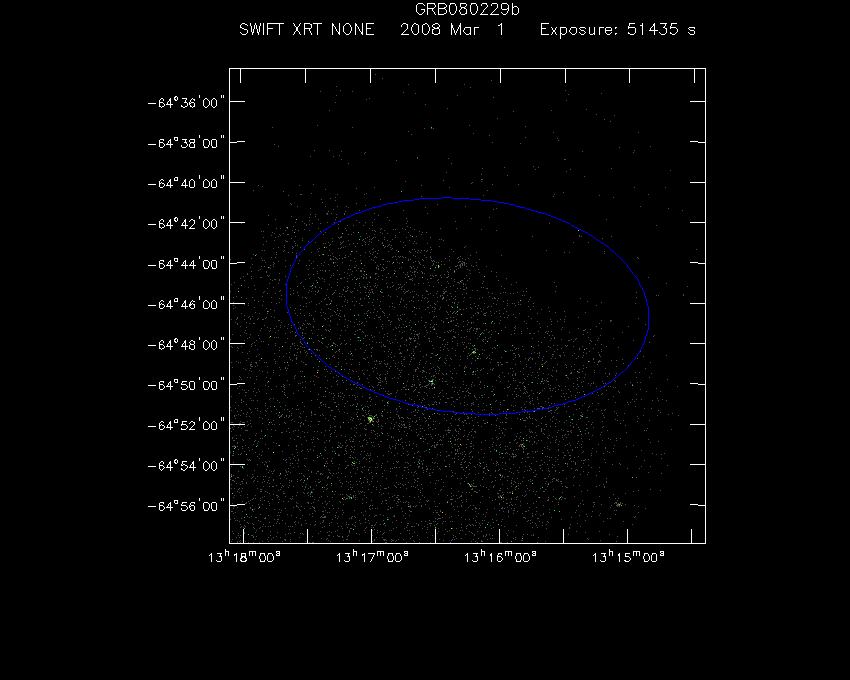

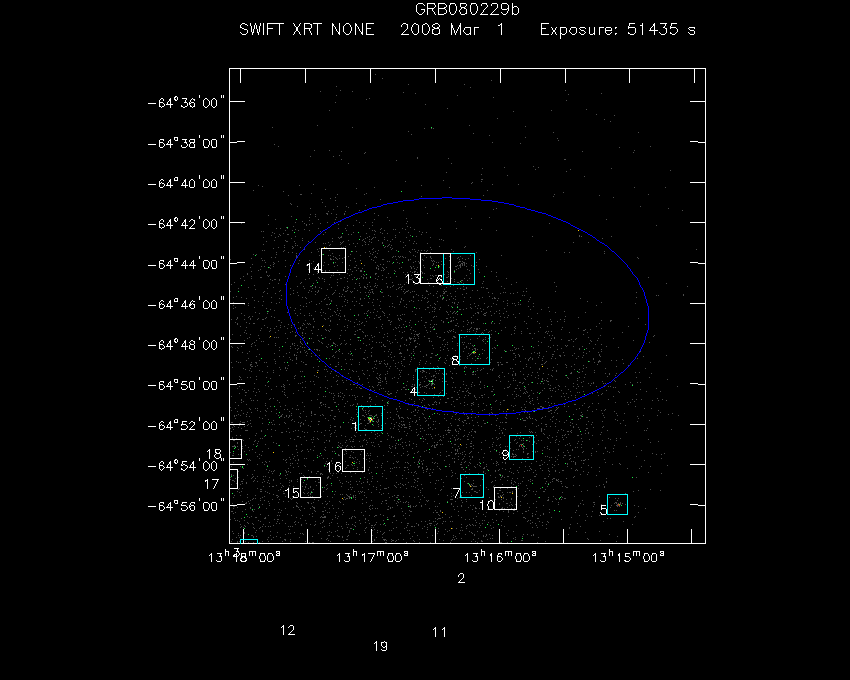

Swift-XRT image of the field for 3FGL J1316.2-6446 Swift-XRT detections in the field for 3FGL J1316.2-6446

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 13 17 00.22 -64 51 45.63 3.83 (2.6 ± 0.3) x 10-3 170 9.295 8.959
2 13 16 11.46 -64 59 25.03 3.90 (1.8 ± 0.2) x 10-3 110 7.635 7.690
3 13 17 57.53 -64 58 08.83 3.91 (1.4 ± 0.2) x 10-3 92 7.446 6.815
4 13 16 32.08 -64 49 56.54 3.89 (1.5 ± 0.2) x 10-3 141 6.738 6.366
5 13 15 04.67 -64 56 00.13 4.52 (1.0 ± 0.2) x 10-3 48 4.972 5.786
6 13 16 19.10 -64 44 20.73 4.05 (1.2 ± 0.2) x 10-3 110 5.688 5.467
7 13 16 13.01 -64 55 06.59 4.02 (9 ± 2) x 10-4 78 4.649 4.689
8 13 16 11.85 -64 48 20.71 3.94 (1.0 ± 0.2) x 10-3 120 4.829 4.668
9 13 15 49.74 -64 53 10.20 3.97 (8 ± 2) x 10-4 100 5.049 4.451
10 13 15 57.13 -64 55 43.65 3.98 (6 ± 2) x 10-4 84 3.443 3.843
11 13 16 20.08 -65 02 07.76 3.98 (6 ± 2) x 10-4 55 4.210 3.761
12 13 17 32.00 -65 02 02.07 4.56 (5.0 ± 1.4) x 10-4 30 3.210 3.659
13 13 16 29.92 -64 44 18.72 3.99 (6 ± 2) x 10-4 109 4.723 3.507
14 13 17 16.83 -64 43 42.25 4.04 (6 ± 2) x 10-4 69 3.828 3.305
15 13 17 28.68 -64 55 10.01 3.98 (5 ± 2) x 10-4 62 3.718 3.303
16 13 17 08.59 -64 53 48.53 3.96 (6 ± 2) x 10-4 64 3.498 3.297
17 13 18 06.88 -64 54 42.98 4.03 (5 ± 2) x 10-4 51 3.369 3.232
18 13 18 05.34 -64 53 12.45 4.02 (4.7 ± 1.4) x 10-4 52 3.284 3.225
19 13 16 48.12 -65 02 49.81 4.08 (4.0 ± 1.3) x 10-4 40 3.081 3.029

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 13 17 10.41 -64 55 37.88 4.03 (4.2 ± 1.4) x 10-4 55 3.078 2.951
2 13 17 01.12 -64 45 11.53 3.94 (5 ± 2) x 10-4 104 3.077 2.936
3 13 16 35.41 -64 54 12.14 4.02 (4 ± 2) x 10-4 75 2.886 2.806
4 13 16 45.11 -64 59 49.19 4.07 (3.7 ± 1.3) x 10-4 40 2.863 2.758
5 13 15 36.61 -64 54 51.65 4.01 (3.9 ± 1.4) x 10-4 58 3.034 2.749
6 13 17 02.55 -65 01 21.64 4.17 (2.5 ± 1.1) x 10-4 36 2.960 2.245
7 13 17 57.53 -64 58 08.82 3.91 (3 ± 2) x 10-4 92 3.066 2.145
8 13 16 40.05 -64 44 18.90 3.96 (1.9 ± 1.3) x 10-4 98 3.459 1.472

X-Ray and Gamma Ray Catalogs

More Catalogs

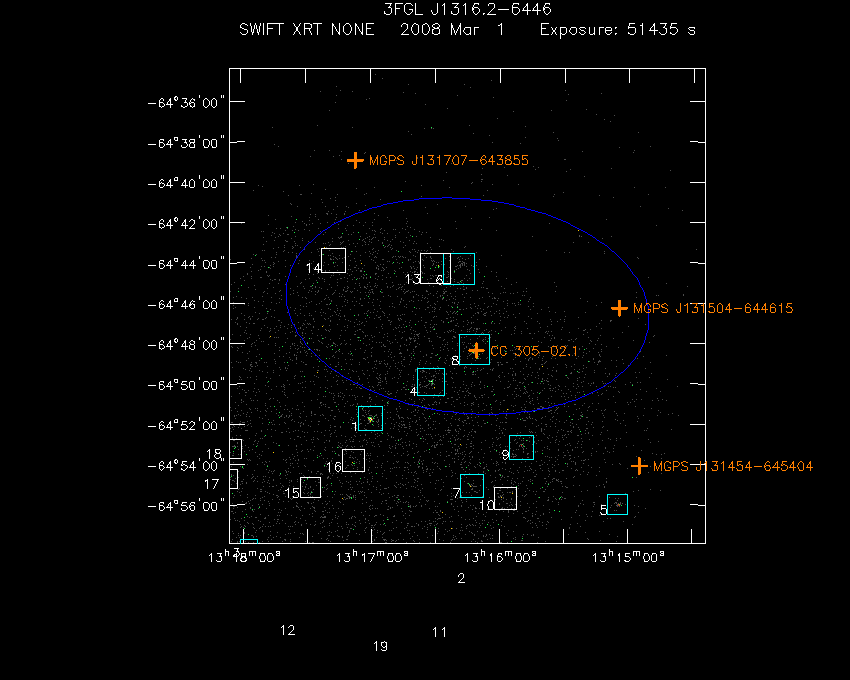

Swift-XRT image with known X-ray and gamma ray sources for 3FGL J1316.2-6446 Swift-XRT image with known radio, optical and UV sources for 3FGL J1316.2-6446

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 SACSHP J131617.3-644413 13 16 17.33 -64 44 12.48 1.98 SWIFT
SACSTP J131617.6-644410 13 16 17.59 -64 44 09.96 2.03 SWIFT
SACSSP J131617.5-644408 13 16 17.50 -64 44 07.80 2.06 SWIFT
2 SACSHP J131611.9-644825 13 16 11.95 -64 48 25.20 2.27 SWIFT
SACSTP J131611.8-644828 13 16 11.81 -64 48 28.08 2.32 SWIFT
SACSSP J131611.7-644828 13 16 11.69 -64 48 28.08 2.32 SWIFT
3 SACSTP J131629.4-644414 13 16 29.38 -64 44 13.56 2.47 SWIFT
SACSHP J131629.0-644412 13 16 29.21 -64 44 11.76 2.47 SWIFT
4 SACSTP J131640.3-644425 13 16 40.32 -64 44 24.72 3.22 SWIFT
5 SACSTP J131641.4-644750 13 16 41.45 -64 47 49.92 3.26 SWIFT
SACSSP J131640.4-644420 13 16 40.37 -64 44 20.40 3.26 SWIFT
SACSHP J131641.7-644751 13 16 41.69 -64 47 51.36 3.29 SWIFT
6 SACSSP J131631.7-644958 13 16 31.70 -64 49 58.08 4.18 SWIFT
SACSHP J131631.7-644958 13 16 31.73 -64 49 58.08 4.18 SWIFT
SACSTP J131631.8-644958 13 16 31.75 -64 49 58.08 4.19 SWIFT
7 1RXS J131527.2-644149 13 15 27.19 -64 41 48.84 6.72 ROSAT
2RXS J131527.3-644147 13 15 27.29 -64 41 47.76 6.72 ROSAT
8 SACSSP J131647.1-645208 13 16 47.59 -64 52 07.68 6.85 SWIFT
9 SACSHP J131549.7-645306 13 15 49.70 -64 53 06.36 7.44 SWIFT
SACSSP J131549.7-645307 13 15 49.68 -64 53 07.44 7.46 SWIFT
SACSTP J131549.8-645308 13 15 49.78 -64 53 07.80 7.46 SWIFT
10 SACSHP J131553.7-645331 13 15 53.69 -64 53 31.20 7.69 SWIFT
11 SACSTP J131633.2-645416 13 16 33.24 -64 54 15.84 8.31 SWIFT
SACSHP J131632.9-645418 13 16 32.93 -64 54 17.64 8.34 SWIFT
12 SACSHP J131735.5-644734 13 17 35.45 -64 47 34.08 8.67 SWIFT
13 SACSSP J131612.1-645507 13 16 12.14 -64 55 06.96 8.95 SWIFT
SACSTP J131612.3-645508 13 16 12.29 -64 55 08.40 8.97 SWIFT
SACSHP J131612.4-645509 13 16 12.43 -64 55 09.12 8.98 SWIFT
14 4U 1314-64 13 17 00.00 -64 54 00.00 9.17 INTEGRAL
15 SACSSP J131708.0-645401 13 17 07.99 -64 54 00.72 9.64 SWIFT
SACSTP J131708.1-645402 13 17 08.40 -64 54 01.80 9.66 SWIFT
16 SACSTP J131559.1-645543 13 15 59.11 -64 55 43.32 9.70 SWIFT
SACSSP J131558.9-645545 13 15 58.92 -64 55 44.76 9.72 SWIFT
17 SACSTP J131629.8-645619 13 16 29.76 -64 56 18.60 10.25 SWIFT
18 SACSTP J131709.7-645539 13 17 09.67 -64 55 39.00 11.11 SWIFT
SACSSP J131710.2-645539 13 17 10.15 -64 55 39.00 11.13 SWIFT
19 SACSSP J131728.1-645526 13 17 28.80 -64 55 26.40 12.08 SWIFT
SACSTP J131728.5-645526 13 17 28.46 -64 55 26.40 12.11 SWIFT
20 SACSTP J131749.7-645306 13 17 49.68 -64 53 06.00 12.21 SWIFT
21 SACSTP J131504.4-645601 13 15 04.42 -64 56 00.96 12.38 SWIFT
SACSSP J131504.4-645602 13 15 04.42 -64 56 01.68 12.39 SWIFT
SACSHP J131504.2-645602 13 15 04.15 -64 56 01.68 12.40 SWIFT
22 SACSHP J131803.9-645308 13 18 03.89 -64 53 08.16 13.50 SWIFT
SACSTP J131803.9-645310 13 18 03.89 -64 53 09.96 13.52 SWIFT
23 SACSSP J131807.6-645441 13 18 07.63 -64 54 41.04 14.68 SWIFT
SACSTP J131807.5-645442 13 18 07.49 -64 54 42.48 14.68 SWIFT
24 SACSTP J131757.3-645809 13 17 57.31 -64 58 08.76 16.16 SWIFT
SACSHP J131757.7-645807 13 17 57.67 -64 58 06.96 16.16 SWIFT
SACSSP J131757.6-645810 13 17 57.65 -64 58 10.20 16.20 SWIFT
25 SACSHP J131802.3-645751 13 18 02.28 -64 57 50.76 16.30 SWIFT

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 CC 305-02.1 13 16 10.90 -64 48 23.04 2.25 DIXON
MGPS J131611-644840 13 16 11.11 -64 48 39.96 2.53 MGPS2
2 MGPS J131504-644615 13 15 04.30 -64 46 15.96 7.55 MGPS2
3 MGPS J131707-643855 13 17 07.10 -64 38 56.04 9.14 MGPS2
4 MGPS J131454-645404 13 14 54.70 -64 54 05.04 11.64 MGPS2
