Swift-XRT Survey of Fermi Unassociated Sources


These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.


Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

3FGL J1232.3+1701

Field

Detected Excesses

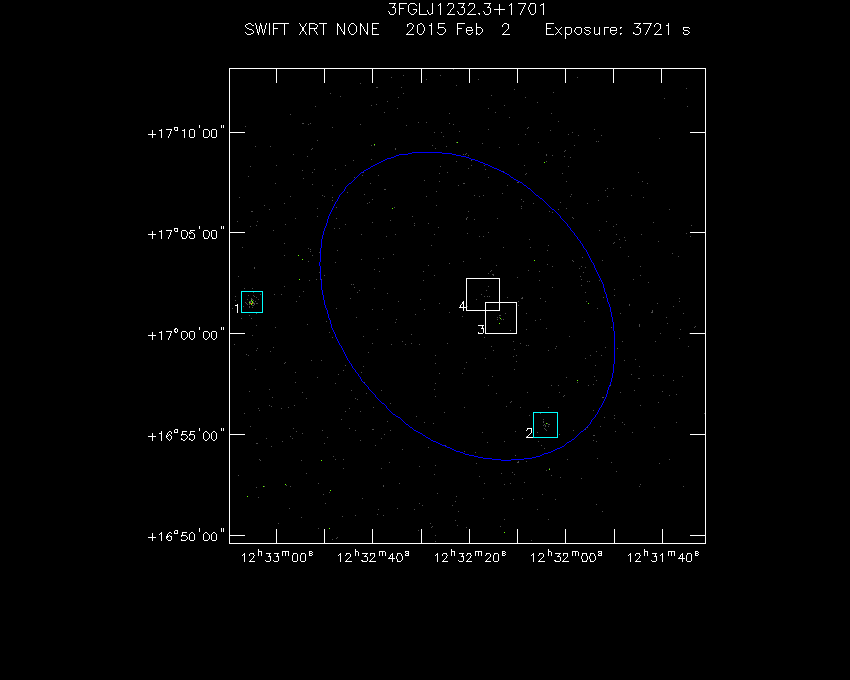

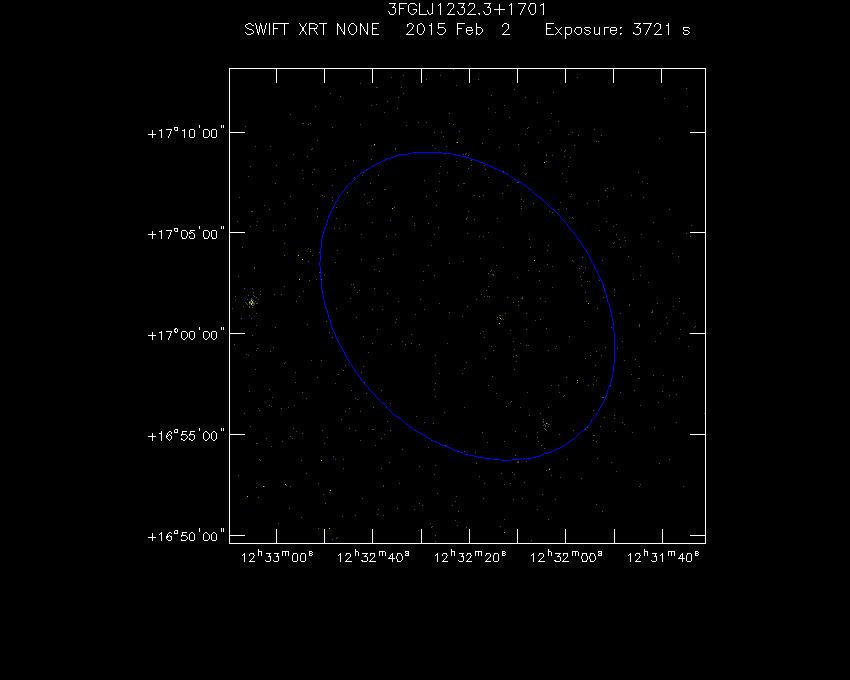

Swift-XRT image of the field for 3FGL J1232.3+1701 Swift-XRT detections in the field for 3FGL J1232.3+1701

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 12 33 05.10 +17 01 33.28 4.31 (2.4 ± 0.3) x 10-2 84 8.810 8.552
2 12 32 04.22 +16 55 27.70 5.08 (8 ± 2) x 10-3 34 4.941 4.489
3 12 32 12.77 +17 00 52.20 5.76 (5 ± 2) x 10-3 21 3.532 3.116

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 12 32 17.26 +17 01 54.92 6.21 (3.8 ± 1.3) x 10-3 19 3.574 2.827
2 12 32 15.15 +17 03 04.40 6.78 (2.8 ± 1.2) x 10-3 13 2.620 2.367
3 12 31 42.02 +17 01 05.91 7.27 (2.1 ± 1.0) x 10-3 8 2.274 2.201

X-Ray and Gamma Ray Catalogs

More Catalogs

Swift-XRT image with known X-ray and gamma ray sources for 3FGL J1232.3+1701 Swift-XRT image with known radio, optical and UV sources for 3FGL J1232.3+1701

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 [GR2015] Com 218 12 32 04.51 +16 55 28.92 7.01 ROSAT
2RXS J123204.4+165527 12 32 04.39 +16 55 27.48 7.05 ROSAT
2RXS J123204.4+165527 12 32 04.39 +16 55 27.48 7.05 ROSAT
2 2RXS J123143.6+170044 12 31 43.63 +17 00 44.64 8.81 ROSAT
2RXS J123143.6+170044 12 31 43.63 +17 00 44.64 8.81 ROSAT
3 1WGA J1231.6+1703 12 31 39.79 +17 03 45.36 9.99 ROSAT
4 X123300.82+165802.8 12 33 00.82 +16 58 02.64 10.23 CHANDRA
CXO J123300.9+165804 12 33 00.96 +16 58 04.44 10.25 CHANDRA
5 X123305.14+170133.1 12 33 05.14 +17 01 33.24 10.70 CHANDRA
CXO J123305.1+170132 12 33 05.16 +17 01 32.88 10.70 CHANDRA
[MML2015] 5BZB J1233+1701 12 33 05.16 +17 01 33.24 10.70 null
2RXS J123305.2+170131 12 33 05.28 +17 01 31.80 10.74 ROSAT
2RXS J123305.2+170131 12 33 05.28 +17 01 31.80 10.74 ROSAT
[GR2015] Com 215 12 33 05.40 +17 01 33.96 10.76 ROSAT
6 X123309.19+165747.4 12 33 09.19 +16 57 47.52 12.21 CHANDRA
7 CXO J123139.4+165108 12 31 39.46 +16 51 08.64 14.16 CHANDRA

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 NVSS J123211+170026 12 32 11.50 +17 00 25.92 2.32 NVSS
FIRST J123211.0+170024 12 32 11.11 +17 00 24.12 2.42 FIRST
2 NVSS J123209+165924 12 32 09.60 +16 59 25.08 3.25 NVSS
FIRST J123224.7+170428 12 32 24.79 +17 04 28.92 3.28 FIRST
3 NVSS J123224+170429 12 32 24.79 +17 04 28.92 3.28 NVSS
FIRST J123209.5+165922 12 32 09.50 +16 59 21.84 3.28 FIRST
TGSSADR J123224.7+170429 12 32 24.70 +17 04 28.92 3.28 GMRTAS150M
FIRST J123151.7+170009 12 31 51.70 +17 00 10.08 6.95 FIRST
4 NVSS J123151+170010 12 31 51.41 +17 00 10.08 7.02 NVSS
FIRST J123151.0+170009 12 31 51.10 +17 00 09.00 7.11 FIRST
5 FIRST J123230.7+170919 12 32 30.79 +17 09 19.08 8.32 FIRST
6 NVSS J123142+170103 12 31 42.10 +17 01 03.00 9.15 NVSS
FIRST J123142.0+170105 12 31 42.00 +17 01 05.88 9.18 FIRST
FIRST J123141.0+170037 12 31 41.11 +17 00 37.08 9.43 FIRST
FIRST J123300.7+170333 12 33 00.70 +17 03 33.12 9.88 FIRST
7 NVSS J123300+170334 12 33 00.70 +17 03 34.92 9.89 NVSS
TGSSADR J123300.7+170334 12 33 00.79 +17 03 34.92 9.90 GMRTAS150M
8 NVSS J123138+170018 12 31 38.59 +17 00 18.00 10.04 NVSS
FIRST J123138.5+170021 12 31 38.59 +17 00 20.88 10.05 FIRST
TGSSADR J123138.1+170012 12 31 38.21 +17 00 12.96 10.16 GMRTAS150M
FIRST J123138.1+170012 12 31 38.21 +17 00 11.88 10.16 FIRST
9 FIRST J123254.8+165443 12 32 54.79 +16 54 42.84 10.60 FIRST
10 FIRST J123148.7+165356 12 31 48.70 +16 53 56.04 10.61 FIRST
11 NVSS J123305+170132 12 33 05.11 +17 01 32.88 10.69 NVSS
TGSSADR J123305.1+170131 12 33 05.11 +17 01 31.08 10.70 GMRTAS150M
[MML2015] 5BZB J1233+1701 12 33 05.11 +17 01 32.88 10.70 ROMABZCAT
FIRST J123305.1+170132 12 33 05.21 +17 01 32.88 10.71 FIRST
GLEAM J123223+165028 12 32 23.81 +16 50 27.96 10.94 GLEAMEGCAT
GB6 J1233+1701 12 33 06.31 +17 01 13.08 10.98 GB6
GB6 J1232+1650 12 32 23.30 +16 50 21.12 11.05 GB6
TXS 1229+171B 12 32 23.90 +16 50 21.12 11.05 TEXAS
12 NVSS J123223+165020 12 32 23.81 +16 50 21.12 11.07 NVSS
FIRST J123223.7+165020 12 32 23.71 +16 50 20.04 11.07 FIRST
TGSSADR J123223.7+165020 12 32 23.81 +16 50 20.04 11.07 GMRTAS150M
VLSSr J123224.9+165019 12 32 24.91 +16 50 20.04 11.10 VLSSR
13 FIRST J123147.7+165325 12 31 47.71 +16 53 26.16 11.14 FIRST
14 MITG J1231+1652 12 31 50.71 +16 52 24.96 11.43 MITGB6CM
FIRST J123147.0+165307 12 31 46.99 +16 53 08.16 11.48 FIRST
GLEAM J123147+165221 12 31 46.99 +16 52 22.08 12.04 GLEAMEGCAT
15 NVSS J123145+165225 12 31 45.91 +16 52 26.04 12.16 NVSS
TGSSADR J123145.8+165225 12 31 45.91 +16 52 24.96 12.18 GMRTAS150M
FIRST J123145.9+165224 12 31 45.91 +16 52 23.88 12.18 FIRST
TXS 1229+171A 12 31 45.79 +16 52 23.88 12.21 TEXAS
TGSSADR J123203.3+171256 12 32 03.41 +17 12 56.16 12.25 GMRTAS150M
FIRST J123203.3+171256 12 32 03.31 +17 12 56.88 12.26 FIRST
16 NVSS J123203+171258 12 32 03.19 +17 12 59.04 12.30 NVSS
VLSSr J123145.8+165216 12 31 45.79 +16 52 15.96 12.30 VLSSR
1229+1708 12 31 46.10 +16 52 09.84 12.34 NORTH6CM
1229+1708 12 31 46.10 +16 52 09.84 12.34 NORTH20CM
GB6 J1231+1652 12 31 44.59 +16 52 14.16 12.52 GB6
17 FIRST J123138.0+170910 12 31 37.99 +17 09 10.08 12.78 FIRST
18 FIRST J123154.6+165008 12 31 54.60 +16 50 08.16 12.82 FIRST
19 FIRST J123144.1+165133 12 31 44.21 +16 51 33.84 13.09 FIRST
PCCS2 545 G277.94+78.75 12 31 40.70 +16 50 57.12 14.10 PCCS545GHZ
20 NVSS J123140+165103 12 31 40.01 +16 51 02.88 14.13 NVSS
21 NVSS J123306+165231 12 33 06.79 +16 52 32.16 14.19 NVSS
PCCS2 857 G277.94+78.74 12 31 40.39 +16 50 45.96 14.29 PCCS857GHZ
