Swift-XRT Survey of Fermi Unassociated Sources


These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.


Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

2FGL J2030.7+4417

Field

Detected Excesses

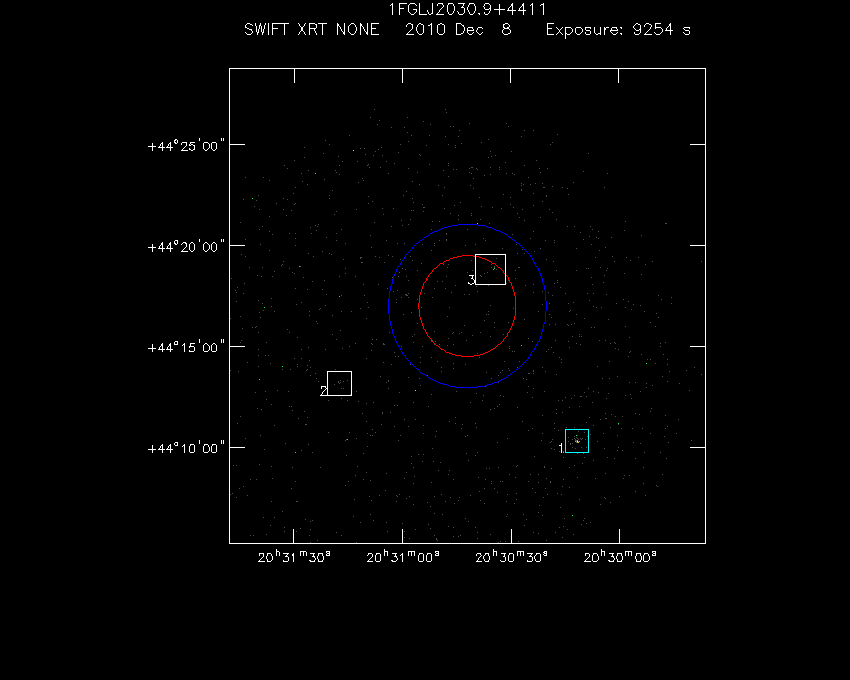

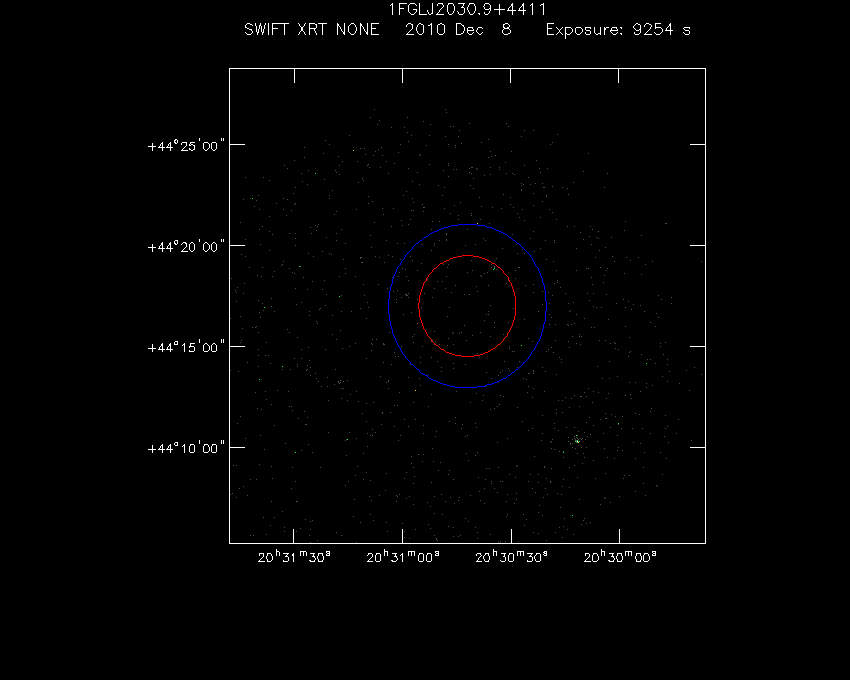

Swift-XRT image of the field for 2FGL J2030.7+4417 Swift-XRT detections in the field for 2FGL J2030.7+4417

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 20 30 11.79 +44 10 18.85 4.22 (9.5 ± 1.2) x 10-3 85 8.557 7.959
2 20 31 17.38 +44 13 11.63 5.44 (1.9 ± 0.6) x 10-3 21 3.366 3.385
3 20 30 35.68 +44 18 50.78 5.64 (2.0 ± 0.6) x 10-3 20 2.875 3.230

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 20 30 59.99 +44 17 33.97 5.59 (1.4 ± 0.5) x 10-3 19 2.740 2.795
2 20 30 11.79 +44 10 18.85 4.22 (9 ± 7) x 10-4 85 2.429 1.316

X-Ray and Gamma Ray Catalogs

More Catalogs

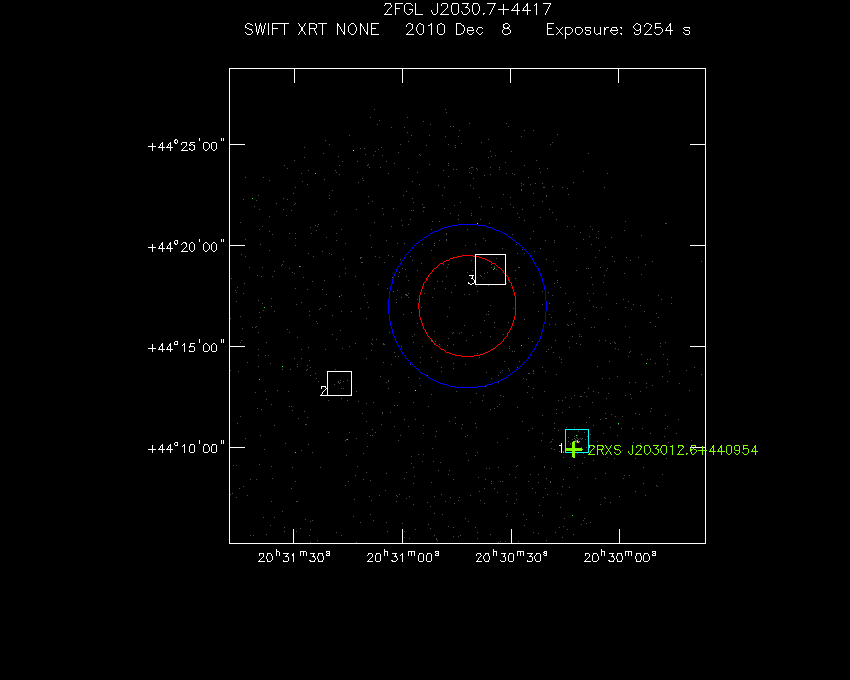

Swift-XRT image with known X-ray and gamma ray sources for 2FGL J2030.7+4417 Swift-XRT image with known radio, optical and UV sources for 2FGL J2030.7+4417

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 2RXS J203012.6+440954 20 30 12.62 +44 09 54.00 8.86 ROSAT

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 PSR J2030+4415 20 30 51.31 +44 15 38.16 2.17 ATNFPULSAR
2 MITG J2031+4416 20 31 01.30 +44 16 00.12 3.59 MITGB6CM
3 [SPT2015] VLA J2030+4413 20 30 43.10 +44 13 18.12 3.72 FER2FUSRID
4 NVSS J203106+441519 20 31 06.10 +44 15 20.16 4.62 NVSS
5 NVSS J203028+442152 20 30 28.70 +44 21 51.84 5.41 NVSS
6 NVSS J203112+441532 20 31 12.50 +44 15 33.12 5.65 NVSS
7 NVSS J203035+442237 20 30 35.40 +44 22 37.92 5.73 NVSS
8 NVSS J203052+442230 20 30 52.39 +44 22 30.00 5.79 NVSS
9 NVSS J203110+441422 20 31 10.99 +44 14 21.84 5.82 NVSS
MITG J2030+4422b 20 30 50.30 +44 22 41.16 5.85 MITGB6CM
CGPS J203008+441759 20 30 08.71 +44 17 58.92 6.04 CGPSNGPCAT
10 MITG J2031+4413 20 31 08.11 +44 13 05.16 6.11 MITGB6CM
11 NVSS J203036+441057 20 30 36.50 +44 10 57.00 6.15 NVSS
12 MITG J2030+4421 20 30 18.00 +44 21 29.88 6.21 MITGB6CM
13 NVSS J203007+441800 20 30 07.39 +44 17 60.00 6.27 NVSS
14 NVSS J203114+441337 20 31 14.59 +44 13 36.84 6.74 NVSS
15 MITG J2030+4415 20 30 02.30 +44 15 42.12 7.24 MITGB6CM
16 NVSS J203056+442427 20 30 56.11 +44 24 27.00 7.84 NVSS
17 NVSS J203026+440935 20 30 26.71 +44 09 36.00 7.92 NVSS
18 NVSS J203027+442451 20 30 27.00 +44 24 51.12 8.28 NVSS
19 NVSS J203101+442515 20 31 01.49 +44 25 15.96 8.95 NVSS
20 MITG J2030+4422a 20 30 01.99 +44 22 27.12 8.99 MITGB6CM
21 NVSS J203133+441649 20 31 33.79 +44 16 49.08 9.27 NVSS
AMIGPS J203134+441649 20 31 34.10 +44 16 49.08 9.33 AMIGPS16GH
22 NVSS J203017+440847 20 30 17.30 +44 08 47.04 9.36 NVSS
MITG J2031+4417 20 31 34.61 +44 17 03.12 9.41 MITGB6CM
23 NVSS J203135+441806 20 31 35.90 +44 18 06.84 9.69 NVSS
24 GB6 J2029+4417 20 29 46.30 +44 17 49.92 10.01 GB6
25 MITG J2030+4407 20 30 11.81 +44 07 42.96 10.77 MITGB6CM
26 MITG J2031+4411 20 31 33.79 +44 11 17.16 10.90 MITGB6CM
27 CGPS J202942+441913 20 29 42.19 +44 19 14.16 10.93 CGPSNGPCAT
28 MITG J2029+4417 20 29 40.80 +44 17 08.88 10.96 MITGB6CM
WN 2029.8+4413 20 31 32.81 +44 24 07.92 11.53 WENSS
TGSSADR J203132.6+442412 20 31 32.69 +44 24 11.88 11.55 GMRTAS150M
CGPS J203132+442415 20 31 32.69 +44 24 15.12 11.59 CGPSNGPCAT
29 NVSS J203132+442415 20 31 32.81 +44 24 15.12 11.61 NVSS
TXS 2029+442 20 31 32.90 +44 24 16.92 11.62 TEXAS
30 NVSS J203138+442310 20 31 37.99 +44 23 09.96 11.74 NVSS
31 NVSS J203118+440709 20 31 18.91 +44 07 09.84 11.86 NVSS
32 NVSS J203009+440628 20 30 09.00 +44 06 28.08 12.10 NVSS
33 NVSS J203115+440618 20 31 16.01 +44 06 19.08 12.32 NVSS
34 MITG J2031+4406a 20 31 20.30 +44 06 36.00 12.48 MITGB6CM
35 WN 2030.0+4401 20 31 47.30 +44 12 06.12 12.69 WENSS
36 NVSS J203141+442359 20 31 41.90 +44 23 60.00 12.77 NVSS
37 NVSS J202949+442551 20 29 49.30 +44 25 50.88 12.92 NVSS
38 NVSS J202955+442707 20 29 55.10 +44 27 06.84 13.14 NVSS
39 GPA 082.33+2.68 20 31 46.30 +44 08 03.12 14.60 GPA
