Swift-XRT Survey of Fermi Unassociated Sources

These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.
Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

1FGL J2014.4+0647

Field

Detected Excesses

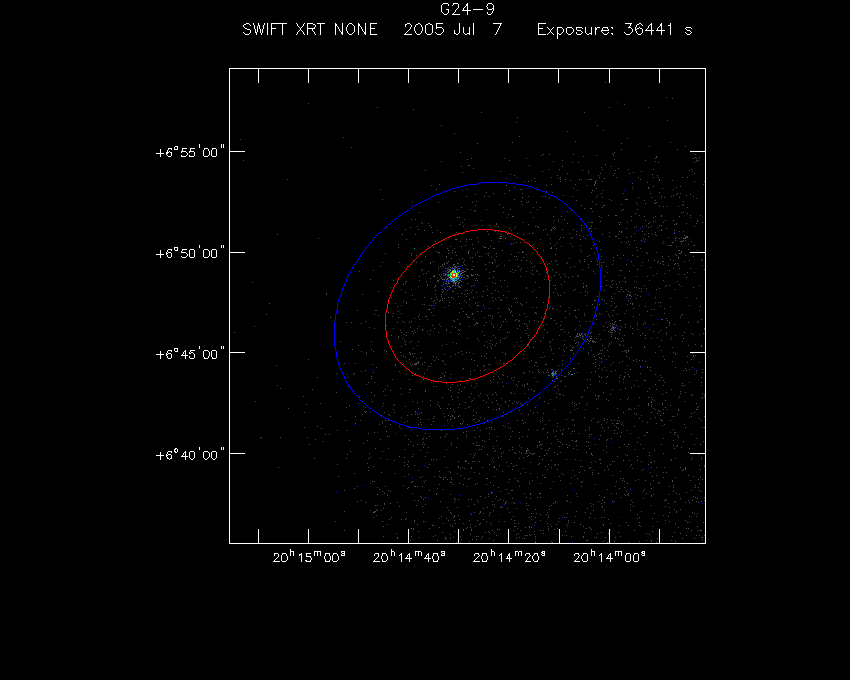

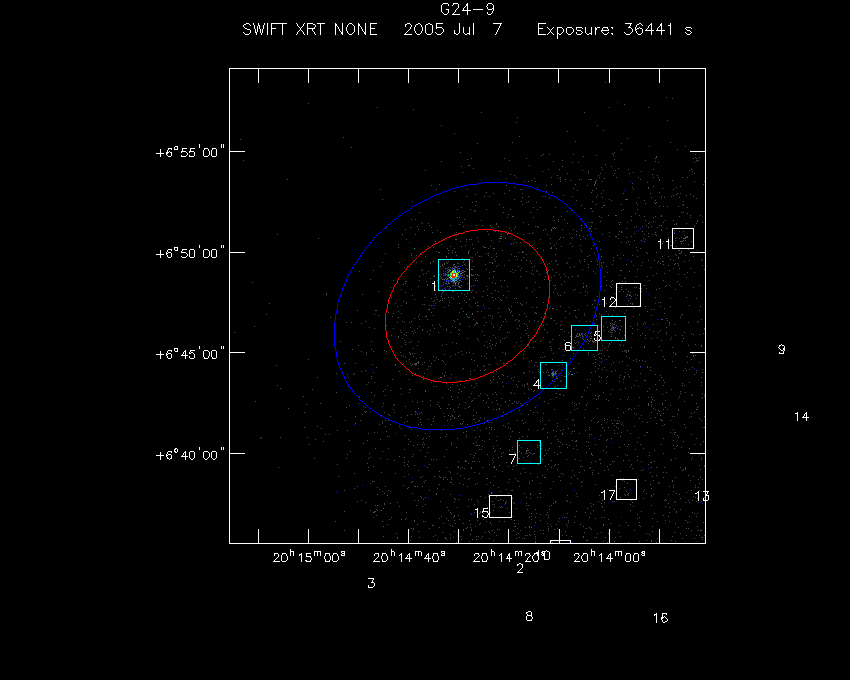

Swift-XRT image of the field for 1FGL J2014.4+0647 Swift-XRT detections in the field for 1FGL J2014.4+0647

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 20 14 31.02 +06 48 51.36 3.56 (5.36 ± 0.14) x 10-2 1703 38.250 39.320
2 20 14 15.04 +06 34 35.78 3.69 (1.11 ± 0.06) x 10-2 381 19.410 17.510
3 20 14 44.84 +06 33 50.14 4.45 (2.5 ± 0.3) x 10-3 71 6.989 7.937
4 20 14 11.02 +06 43 53.97 4.05 (2.5 ± 0.3) x 10-3 107 7.649 7.752
5 20 13 59.09 +06 46 12.64 4.06 (2.1 ± 0.3) x 10-3 97 7.536 6.885
6 20 14 04.90 +06 45 44.10 4.09 (1.3 ± 0.3) x 10-3 91 5.469 5.088
7 20 14 16.03 +06 40 05.79 4.29 (1.1 ± 0.2) x 10-3 52 4.889 4.802
8 20 14 13.29 +06 32 10.74 4.40 (1.0 ± 0.2) x 10-3 44 4.718 4.720
9 20 13 22.93 +06 45 24.23 4.23 (8 ± 2) x 10-4 39 4.659 3.965
10 20 14 09.72 +06 35 14.14 4.12 (9 ± 2) x 10-4 42 4.272 3.964
11 20 13 45.22 +06 50 41.01 4.23 (8 ± 2) x 10-4 51 4.742 3.938
12 20 13 56.13 +06 47 52.57 4.24 (7 ± 2) x 10-4 52 4.119 3.755
13 20 13 38.05 +06 38 06.97 4.30 (6 ± 2) x 10-4 38 4.027 3.532
14 20 13 18.26 +06 42 02.17 4.32 (6 ± 2) x 10-4 33 4.198 3.288
15 20 14 21.69 +06 37 24.03 4.30 (6 ± 2) x 10-4 42 3.403 3.122
16 20 13 46.55 +06 32 02.88 4.56 (5 ± 2) x 10-4 26 3.540 3.089
17 20 13 56.60 +06 38 12.89 4.55 (5 ± 2) x 10-4 29 2.999 3.048

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 20 14 04.90 +06 45 44.10 4.09 (8 ± 2) x 10-4 88 4.273 3.503
2 20 14 49.13 +06 42 05.35 4.83 (5 ± 2) x 10-4 31 3.002 2.970
3 20 13 56.26 +06 35 12.72 4.51 (4 ± 2) x 10-4 28 2.910 2.745
4 20 14 02.22 +06 49 27.42 4.56 (4 ± 2) x 10-4 34 2.772 2.697
5 20 14 39.34 +06 44 44.40 4.33 (4 ± 2) x 10-4 60 3.232 2.669
6 20 14 10.89 +06 33 41.60 3.88 (5 ± 2) x 10-4 41 3.766 2.649
7 20 14 38.67 +06 41 57.12 4.66 (4 ± 2) x 10-4 36 2.971 2.537
8 20 14 30.98 +06 41 45.55 4.25 (4 ± 2) x 10-4 55 3.405 2.532
9 20 14 39.34 +06 44 44.40 4.33 (4 ± 2) x 10-4 60 2.766 2.464
10 20 13 23.85 +06 40 01.64 4.47 (3 ± 2) x 10-4 26 2.636 2.354
11 20 13 43.57 +06 33 42.85 4.51 (3.3 ± 1.4) x 10-4 23 2.711 2.330

X-Ray and Gamma Ray Catalogs

More Catalogs

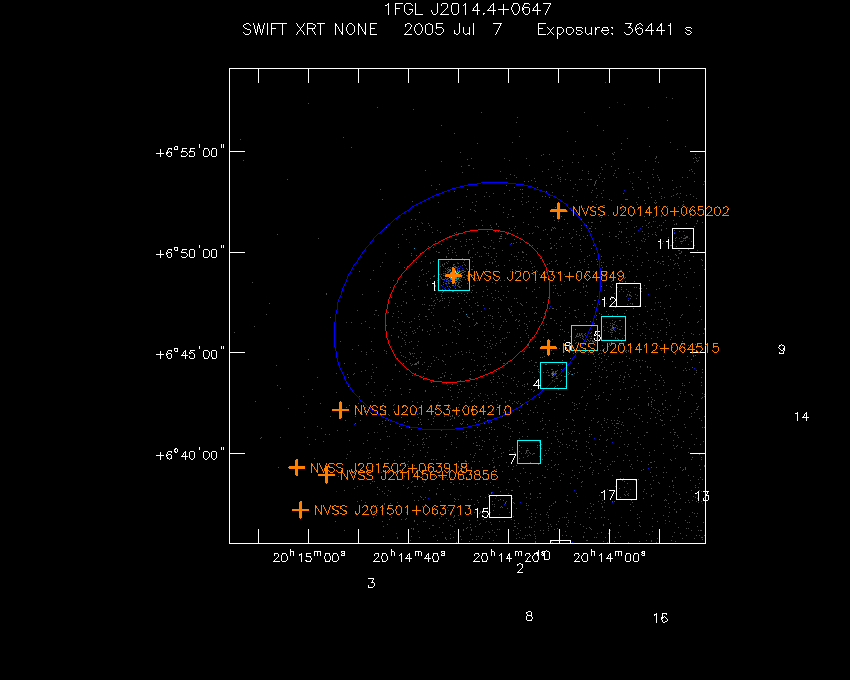

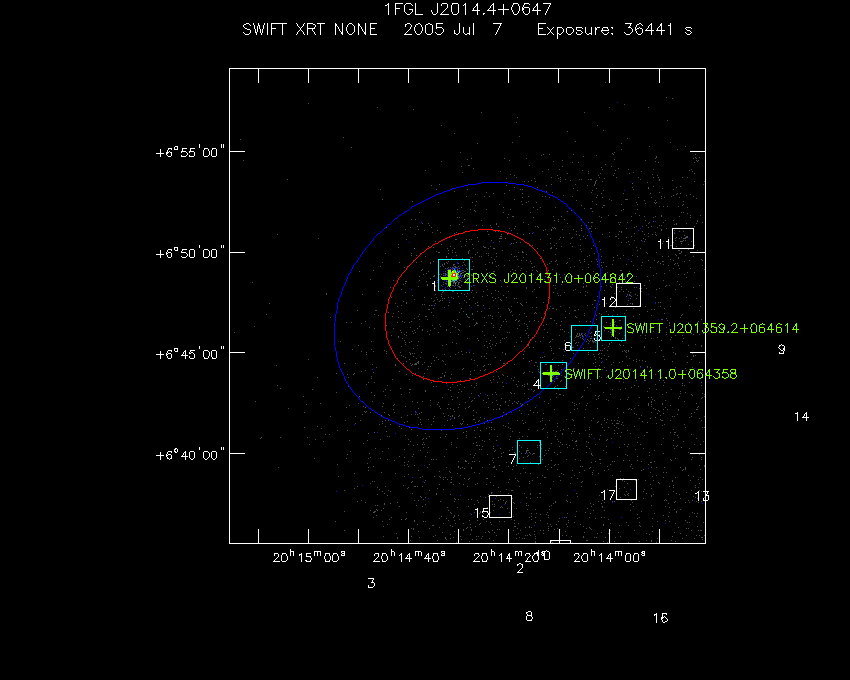

Swift-XRT image with known X-ray and gamma ray sources for 1FGL J2014.4+0647 Swift-XRT image with known radio, optical and UV sources for 1FGL J2014.4+0647

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 2RXS J201431.0+064842 20 14 31.90 +06 48 42.48 1.54 ROSAT
2RXS J201431.0+064842 20 14 31.90 +06 48 42.48 1.54 ROSAT
1RXS J201431.2+064842 20 14 31.20 +06 48 42.12 1.55 ROSAT
[MML2015] 5BZB J2014+0648 20 14 31.70 +06 48 52.20 1.69 null
SWIFT J201431.1+064851 20 14 31.15 +06 48 51.84 1.69 SWIFT
2 SWIFT J201411.0+064358 20 14 11.59 +06 43 58.08 5.44 SWIFT
3 SWIFT J201359.2+064614 20 13 59.21 +06 46 14.52 7.30 SWIFT

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 NVSS J201431+064849 20 14 31.10 +06 48 50.04 1.66 NVSS
[MML2015] 5BZB J2014+0648 20 14 31.10 +06 48 51.84 1.69 ROMABZCAT
2 NVSS J201412+064515 20 14 12.10 +06 45 15.84 4.52 NVSS
3 NVSS J201410+065202 20 14 10.10 +06 52 03.00 6.52 NVSS
4 NVSS J201453+064210 20 14 53.71 +06 42 10.08 8.14 NVSS
GLEAM J201457+063915 20 14 57.00 +06 39 15.84 10.77 GLEAMEGCAT
TGSSADR J201456.4+063857 20 14 56.40 +06 38 57.12 10.90 GMRTAS150M
5 NVSS J201456+063856 20 14 56.40 +06 38 57.12 10.91 NVSS
6 NVSS J201502+063918 20 15 02.40 +06 39 19.08 11.67 NVSS
7 NVSS J201501+063713 20 15 01.61 +06 37 13.08 13.06 NVSS
