Swift-XRT Survey of Fermi Unassociated Sources


These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.


Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

1FGL J1746.7-3233

Field

Detected Excesses

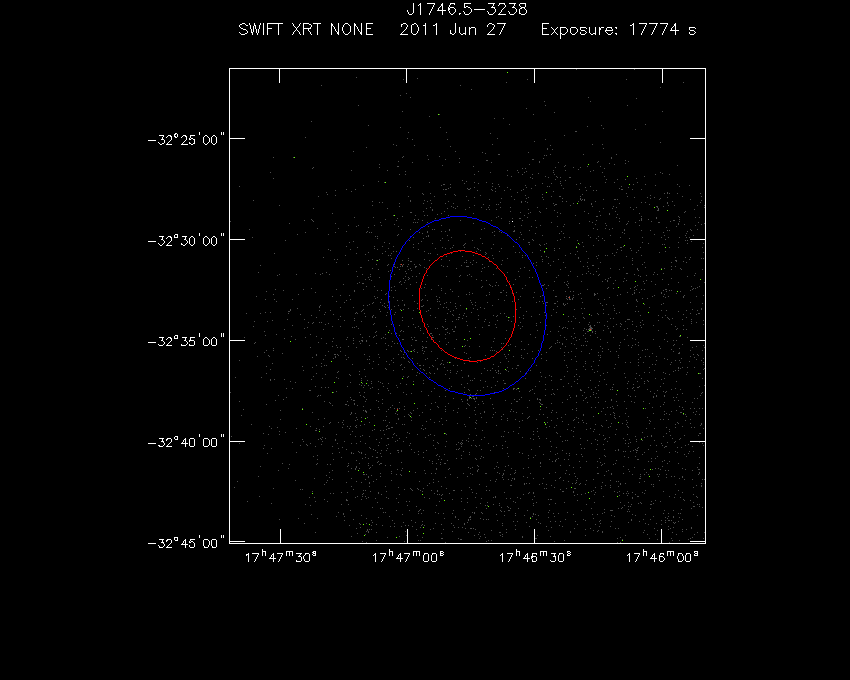

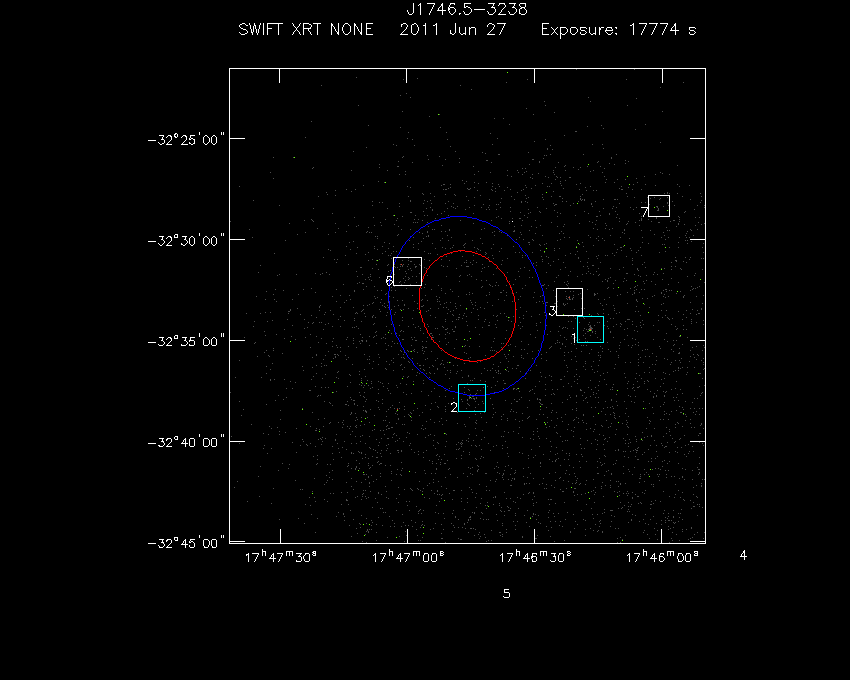

Swift-XRT image of the field for 1FGL J1746.7-3233 Swift-XRT detections in the field for 1FGL J1746.7-3233

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 17 46 16.91 -32 34 27.51 4.21 (2.9 ± 0.6) x 10-3 62 5.490 5.273
2 17 46 44.75 -32 37 52.35 4.33 (2.4 ± 0.5) x 10-3 60 4.909 4.860
3 17 46 21.74 -32 33 06.08 4.32 (1.6 ± 0.4) x 10-3 60 3.875 3.794
4 17 45 37.90 -32 45 26.58 4.69 (1.5 ± 0.4) x 10-3 28 3.610 3.679
5 17 46 33.38 -32 47 19.86 4.33 (1.4 ± 0.4) x 10-3 38 4.304 3.613
6 17 46 59.93 -32 31 34.59 4.18 (1.2 ± 0.4) x 10-3 72 3.895 3.125
7 17 46 00.70 -32 28 19.47 4.44 (1.1 ± 0.4) x 10-3 36 3.561 3.052

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 17 47 02.92 -32 38 37.09 4.37 (1.1 ± 0.4) x 10-3 43 3.055 2.992
2 17 47 10.92 -32 37 18.99 4.42 (1.1 ± 0.4) x 10-3 50 3.525 2.947
3 17 46 18.92 -32 28 07.12 4.74 (9 ± 3) x 10-4 26 3.123 2.778
4 17 47 17.02 -32 35 46.61 4.61 (9 ± 3) x 10-4 34 2.740 2.744
5 17 47 11.02 -32 38 38.87 4.28 (5 ± 3) x 10-4 48 2.803 1.567

X-Ray and Gamma Ray Catalogs

More Catalogs

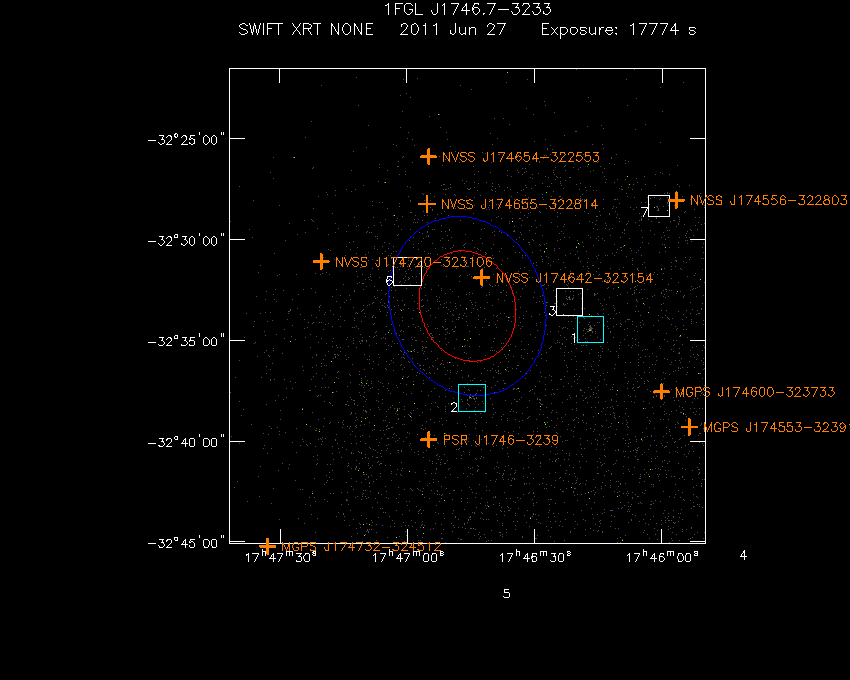

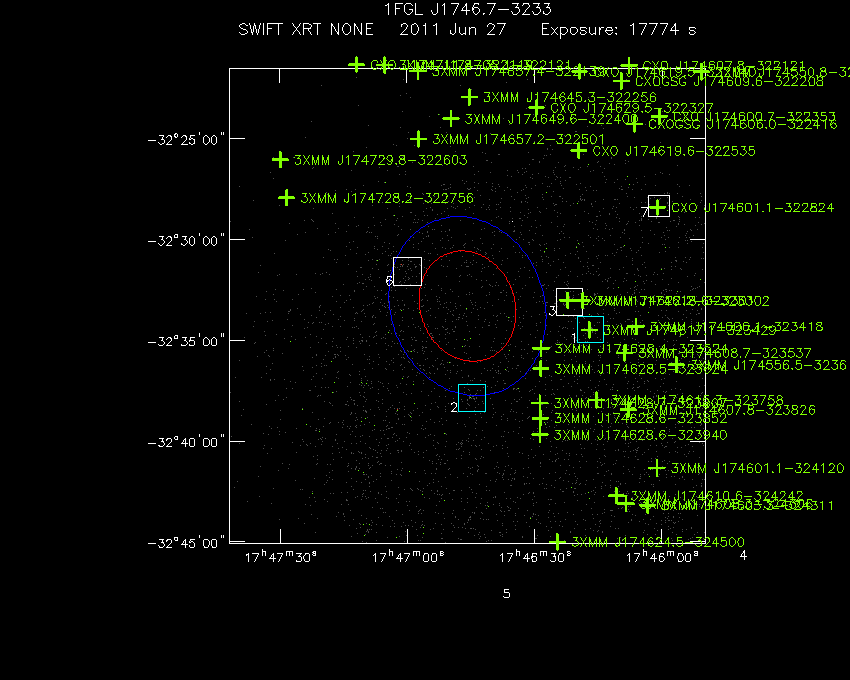

Swift-XRT image with known X-ray and gamma ray sources for 1FGL J1746.7-3233 Swift-XRT image with known radio, optical and UV sources for 1FGL J1746.7-3233

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 3XMM J174628.4-323524 17 46 28.46 -32 35 24.36 4.21 XMM-NEWTON
2 3XMM J174628.5-323624 17 46 28.54 -32 36 24.48 4.78 XMM-NEWTON
3 3XMM J174622.2-323301 17 46 22.22 -32 33 01.44 4.97 XMM-NEWTON
4 3XMM J174618.6-323302 17 46 18.67 -32 33 02.16 5.72 XMM-NEWTON
5 3XMM J174628.7-323807 17 46 28.73 -32 38 07.44 6.01 XMM-NEWTON
6 3XMM J174617.1-323429 17 46 17.11 -32 34 29.64 6.16 XMM-NEWTON
7 3XMM J174628.6-323852 17 46 28.66 -32 38 52.44 6.63 XMM-NEWTON
8 3XMM J174628.6-323940 17 46 28.68 -32 39 41.04 7.32 XMM-NEWTON
9 3XMM J174615.3-323758 17 46 15.38 -32 37 58.44 7.92 XMM-NEWTON
10 3XMM J174608.7-323537 17 46 08.78 -32 35 37.68 8.13 XMM-NEWTON
11 3XMM J174606.1-323418 17 46 06.10 -32 34 18.48 8.42 XMM-NEWTON
12 3XMM J174657.2-322501 17 46 57.31 -32 25 01.56 8.63 XMM-NEWTON
3XMM J174657.7-322454 17 46 57.74 -32 24 54.00 8.78 XMM-NEWTON
3XMM J174657.1-322449 17 46 57.19 -32 24 49.68 8.82 XMM-NEWTON
13 3XMM J174649.6-322400 17 46 49.68 -32 24 00.72 9.34 XMM-NEWTON
14 CXO J174619.6-322535 17 46 19.63 -32 25 35.76 9.48 CHANDRA
15 3XMM J174607.8-323826 17 46 07.90 -32 38 26.52 9.49 XMM-NEWTON
3XMM J174651.3-322342 17 46 51.38 -32 23 43.44 9.66 XMM-NEWTON
3XMM J174651.3-322342 17 46 51.22 -32 23 40.20 9.71 XMM-NEWTON
16 3XMM J174645.3-322256 17 46 45.36 -32 22 57.00 10.36 XMM-NEWTON
17 CXO J174629.5-322327 17 46 29.57 -32 23 27.96 10.42 CHANDRA
18 3XMM J174728.2-322756 17 47 28.30 -32 27 56.16 10.45 XMM-NEWTON
3XMM J174601.4-322829 17 46 01.42 -32 28 29.64 10.52 XMM-NEWTON
19 CXO J174601.1-322824 17 46 01.10 -32 28 24.60 10.62 CHANDRA
20 3XMM J174556.5-323612 17 45 56.59 -32 36 12.96 10.76 XMM-NEWTON
21 3XMM J174729.8-322603 17 47 29.81 -32 26 03.12 11.79 XMM-NEWTON
22 3XMM J174657.4-322139 17 46 57.41 -32 21 39.24 11.91 XMM-NEWTON
23 3XMM J174610.6-324242 17 46 10.68 -32 42 42.48 11.96 XMM-NEWTON
24 CXOGSG J174606.0-322416 17 46 06.50 -32 24 16.20 12.33 CHANDRA
X174606.05-322416.2 17 46 06.50 -32 24 16.20 12.33 CHANDRA
CXO J174606.2-322412 17 46 06.22 -32 24 11.88 12.36 CHANDRA
25 3XMM J174601.1-324120 17 46 01.13 -32 41 20.04 12.36 XMM-NEWTON
3XMM J174606.1-322412 17 46 06.10 -32 24 12.96 12.36 XMM-NEWTON
3XMM J174559.7-324101 17 45 59.74 -32 41 00.96 12.38 XMM-NEWTON
26 3XMM J174624.5-324500 17 46 24.58 -32 45 00.36 12.52 XMM-NEWTON
27 3XMM J174608.3-324306 17 46 08.40 -32 43 06.60 12.57 XMM-NEWTON
28 3XMM J174705.1-322121 17 47 05.21 -32 21 21.60 12.63 XMM-NEWTON
29 CXO J174619.5-322140 17 46 19.49 -32 21 40.68 12.89 CHANDRA
30 CXO J174711.8-322119 17 47 11.83 -32 21 20.16 13.18 CHANDRA
31 3XMM J174603.3-324311 17 46 03.31 -32 43 11.28 13.32 XMM-NEWTON
3XMM J174601.7-322341 17 46 01.73 -32 23 41.64 13.37 XMM-NEWTON
32 CXO J174600.7-322353 17 46 00.72 -32 23 53.88 13.38 CHANDRA
CXO J174601.6-322339 17 46 01.68 -32 23 39.48 13.40 CHANDRA
33 CXOGSG J174609.6-322208 17 46 09.67 -32 22 08.76 13.52 CHANDRA
34 CXO J174607.8-322121 17 46 07.82 -32 21 21.96 14.38 CHANDRA
3XMM J174607.5-322121 17 46 07.58 -32 21 21.60 14.42 XMM-NEWTON
35 3XMM J174550.8-322141 17 45 50.88 -32 21 41.04 16.41 XMM-NEWTON

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
MGPS J174642-323156 17 46 42.31 -32 31 55.92 1.57 MGPS2
1 NVSS J174642-323154 17 46 42.41 -32 31 54.12 1.58 NVSS
MGPS J174655-322816 17 46 55.20 -32 28 15.96 5.41 MGPS2
2 NVSS J174655-322814 17 46 55.30 -32 28 14.88 5.45 NVSS
TGSSADR J174655.5-322814 17 46 55.51 -32 28 14.88 5.47 GMRTAS150M
3 PSR J1746-3239 17 46 54.91 -32 39 56.16 6.89 ATNFPULSAR
4 NVSS J174720-323106 17 47 20.21 -32 31 05.88 7.58 NVSS
5 NVSS J174654-322553 17 46 54.91 -32 25 54.12 7.66 NVSS
6 MGPS J174600-323733 17 46 00.10 -32 37 32.88 10.51 MGPS2
7 NVSS J174556-322803 17 45 56.71 -32 28 03.00 11.60 NVSS
8 MGPS J174553-323917 17 45 53.50 -32 39 18.00 12.52 MGPS2
9 MGPS J174732-324512 17 47 32.90 -32 45 12.96 15.49 MGPS2
