Swift-XRT Survey of Fermi Unassociated Sources

These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.
Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

3FGL J1702.8-5656

Field

Detected Excesses

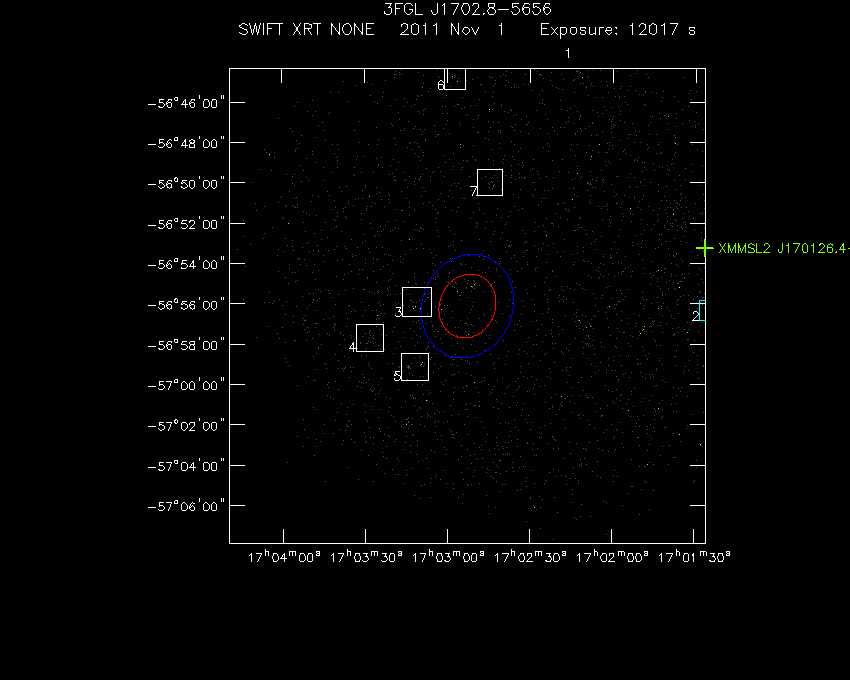

Swift-XRT image of the field for 3FGL J1702.8-5656 Swift-XRT detections in the field for 3FGL J1702.8-5656

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 17 02 11.41 -56 43 20.98 4.64 (3.0 ± 0.6) x 10-3 37 5.005 4.944
2 17 01 24.59 -56 56 20.08 4.63 (2.3 ± 0.6) x 10-3 33 4.375 4.117
3 17 03 11.04 -56 55 56.04 4.55 (1.9 ± 0.6) x 10-3 50 4.086 3.383
4 17 03 28.16 -56 57 43.14 4.63 (1.7 ± 0.5) x 10-3 43 3.154 3.259
5 17 03 11.79 -56 59 09.24 4.49 (1.6 ± 0.5) x 10-3 49 3.085 3.250
6 17 02 57.18 -56 44 53.64 4.97 (1.5 ± 0.5) x 10-3 19 2.994 3.065
7 17 02 44.54 -56 50 00.91 4.92 (1.5 ± 0.5) x 10-3 32 2.969 3.040

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 17 03 15.09 -57 02 01.86 4.78 (1.4 ± 0.5) x 10-3 30 3.427 2.932
2 17 02 53.01 -56 55 13.67 4.64 (1.1 ± 0.5) x 10-3 47 2.684 2.393
3 17 01 20.09 -56 55 31.66 4.47 (1.0 ± 0.4) x 10-3 25 3.186 2.293
4 17 01 35.96 -56 51 18.94 4.50 (10 ± 4) x 10-4 31 2.579 2.237
5 17 01 35.73 -56 51 54.25 4.49 (7 ± 4) x 10-4 34 2.594 1.727

X-Ray and Gamma Ray Catalogs

More Catalogs

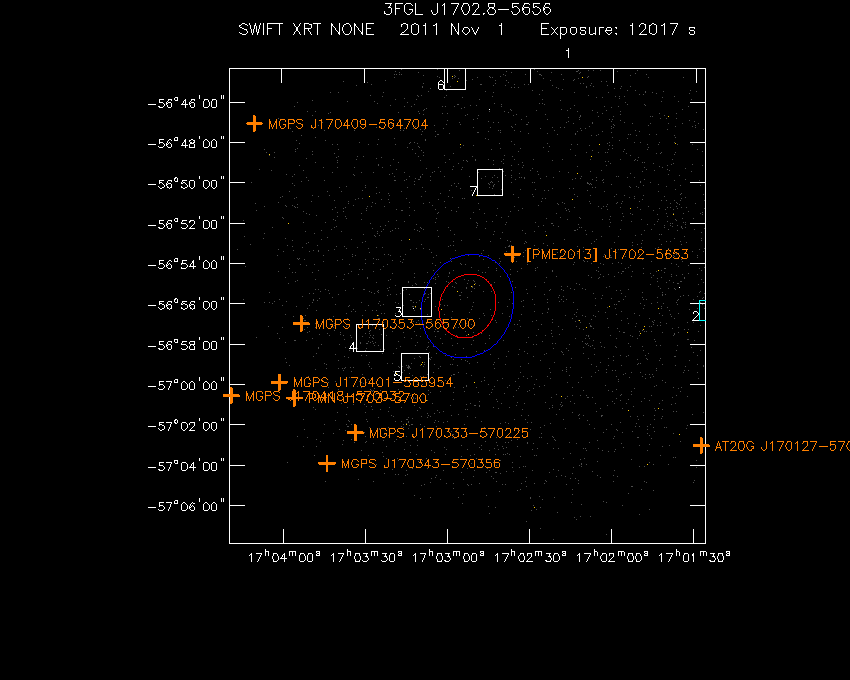

Swift-XRT image with known X-ray and gamma ray sources for 3FGL J1702.8-5656 Swift-XRT image with known radio, optical and UV sources for 3FGL J1702.8-5656

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 XMMSL2 J170126.4-565314 17 01 26.52 -56 53 14.28 12.12 XMM-NEWTON

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 [PME2013] J1702-5653 17 02 36.41 -56 53 34.08 3.41 AT2FGLUS
[SPT2015] ATCA J1702-5653 17 02 36.41 -56 53 34.08 3.41 FER2FUSRID
MGPS J170236-565333 17 02 36.19 -56 53 33.00 3.44 MGPS2
2 MGPS J170353-565700 17 03 53.21 -56 57 00.00 8.29 MGPS2
3 MGPS J170333-570225 17 03 33.70 -57 02 25.08 8.40 MGPS2
4 PMN J1703-5700 17 03 55.80 -57 00 41.04 9.72 PMN
5 MGPS J170401-565954 17 04 01.30 -56 59 53.88 10.07 MGPS2
6 MGPS J170343-570356 17 03 43.99 -57 03 56.16 10.46 MGPS2
7 MGPS J170418-570032 17 04 18.79 -57 00 33.12 12.53 MGPS2
8 AT20G J170127-570301 17 01 27.50 -57 03 02.16 13.51 AT20G
MGPS J170127-570300 17 01 27.19 -57 02 60.00 13.53 MGPS2
ATPMN J170127.2-570302 17 01 27.19 -57 03 02.16 13.54 ATPMNCAT
PMN J1701-5703 17 01 26.81 -57 03 01.08 13.57 PMN
9 MGPS J170409-564704 17 04 09.91 -56 47 03.84 13.91 MGPS2
