Swift-XRT Survey of Fermi Unassociated Sources

These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.
Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

4FGL J2220.8+6319

Field

Detected Excesses

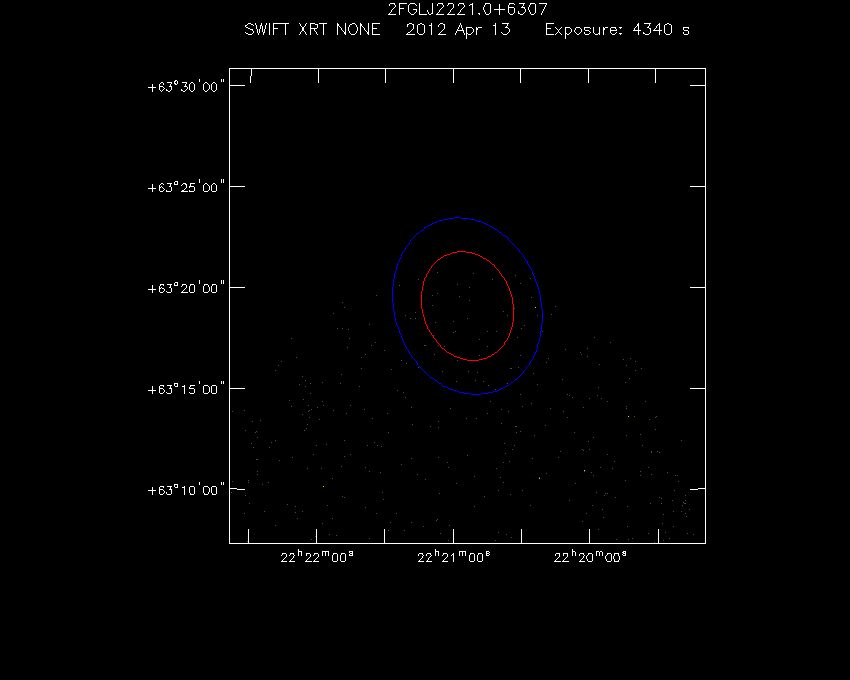

Swift-XRT image of the field for 4FGL J2220.8+6319 Swift-XRT detections in the field for 4FGL J2220.8+6319


No detected excesses found.

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 22 22 03.46 +63 13 57.43 5.53 (1.9 ± 0.9) x 10-3 20 2.879 2.221

X-Ray and Gamma Ray Catalogs

More Catalogs

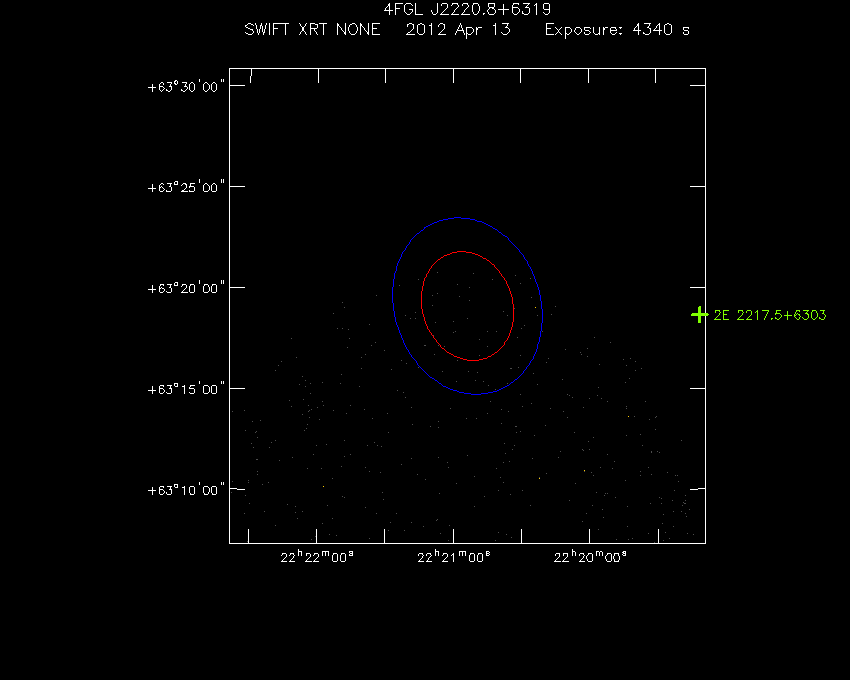

Swift-XRT image with known X-ray and gamma ray sources for 4FGL J2220.8+6319 Swift-XRT image with known radio, optical and UV sources for 4FGL J2220.8+6319

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 2E 2217.5+6303 22 19 11.09 +63 18 38.52 11.54 EINSTEIN
2E 2217.5+6303 22 19 11.04 +63 18 36.36 11.54 EINSTEIN
2E 2217.5+6303 22 19 11.02 +63 18 38.16 11.54 EINSTEIN

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 NVSS J222101+631854 22 21 01.99 +63 18 54.00 0.95 NVSS
CGPS J222102+631851 22 21 02.11 +63 18 51.84 0.97 CGPSNGPCAT
2 PCCS2 030 G106.97+05.24 22 20 56.81 +63 20 47.04 1.71 PCCS030GHZ
CGPS J222109+631853 22 21 09.31 +63 18 52.92 1.76 CGPSNGPCAT
TGSSADR J222112.1+631852 22 21 12.10 +63 18 52.92 2.08 GMRTAS150M
3 NVSS J222112+631856 22 21 12.41 +63 18 56.16 2.11 NVSS
4 BD+62 2067 22 20 59.93 +63 21 11.88 2.20 ACRS
CGPS J222113+631851 22 21 13.30 +63 18 51.12 2.21 CGPSNGPCAT
PPM 23674 22 20 59.98 +63 21 12.24 2.21 PPM
SAO 20020 22 21 00.19 +63 21 12.24 2.21 SAO
5 NVSS J222055+632157 22 20 55.10 +63 21 57.96 2.86 NVSS
6 CGPS J222126+631812 22 21 26.50 +63 18 11.88 3.79 CGPSNGPCAT
7 NVSS J222103+632246 22 21 03.70 +63 22 45.84 3.83 NVSS
8 PCCS2 044 G106.91+05.28 22 20 19.01 +63 20 35.88 4.17 PCCS044GHZ
CGPS J222019+632201 22 20 19.61 +63 22 00.84 4.81 CGPSNGPCAT
9 NVSS J222019+632208 22 20 19.20 +63 22 09.12 4.93 NVSS
10 BD+62 2068 22 21 08.33 +63 12 52.20 6.45 ACRS
PPM 23676 22 21 08.35 +63 12 52.20 6.45 PPM
SAO 20024 22 21 07.92 +63 12 51.48 6.45 SAO
11 CGPS J222151+631628 22 21 51.31 +63 16 27.84 6.99 CGPSNGPCAT
12 NVSS J222005+631432 22 20 06.00 +63 14 33.00 7.05 NVSS
CGPS J222005+631432 22 20 05.90 +63 14 31.92 7.06 CGPSNGPCAT
TGSSADR J222159.6+632052 22 21 59.71 +63 20 52.08 7.61 GMRTAS150M
WN 2220.3+6305 22 22 00.29 +63 21 01.08 7.70 WENSS
CGPS J222200+632058 22 22 00.50 +63 20 57.84 7.72 CGPSNGPCAT
13 NVSS J222200+632056 22 22 00.79 +63 20 56.04 7.74 NVSS
TGSSADR J222156.9+631408 22 21 56.90 +63 14 08.88 8.66 GMRTAS150M
CGPS J222157+631409 22 21 57.10 +63 14 08.88 8.67 CGPSNGPCAT
14 NVSS J222156+631408 22 21 57.00 +63 14 08.16 8.68 NVSS
WN 2220.3+6258 22 21 57.00 +63 14 08.88 8.68 WENSS
15 PCCS2 070 G106.82+05.30 22 19 30.91 +63 19 09.12 9.30 PCCS070GHZ
16 PGCC G106.95+5.37 22 20 09.50 +63 27 02.16 9.34 PLANCKGCC
17 NVSS J222222+631855 22 22 22.20 +63 18 56.16 9.93 NVSS
VLSSr J221925.5+632151 22 19 25.51 +63 21 51.12 10.27 VLSSR
CGPS J221924+632144 22 19 24.31 +63 21 45.00 10.37 CGPSNGPCAT
18 NVSS J221924+632143 22 19 24.19 +63 21 43.92 10.38 NVSS
WN 2217.7+6306 22 19 24.10 +63 21 42.12 10.39 WENSS
TGSSADR J221924.1+632144 22 19 24.10 +63 21 45.00 10.39 GMRTAS150M
19 NVSS J221918+631844 22 19 18.19 +63 18 45.00 10.73 NVSS
WDS J22193+6319 AB 22 19 18.00 +63 19 00.12 10.75 WDS
WDS J22193+6319 AC 22 19 18.00 +63 19 00.12 10.75 WDS
WDS J22193+6319 Ca,Cb 22 19 18.00 +63 19 00.12 10.75 WDS
WDS J22193+6319 AE 22 19 18.00 +63 19 00.12 10.75 WDS
WDS J22193+6319 AG 22 19 18.00 +63 19 00.12 10.75 WDS
WDS J22193+6319 AF 22 19 18.00 +63 19 00.12 10.75 WDS
WDS J22193+6319 Ca,Cc 22 19 18.00 +63 19 00.12 10.75 WDS
WDS J22193+6319 AD 22 19 18.00 +63 19 00.12 10.75 WDS
20 SAO 20026 22 21 11.54 +63 29 40.56 10.75 SAO
BD+62 2069 22 21 11.69 +63 29 41.28 10.77 ACRS
PPM 23678 22 21 11.74 +63 29 41.28 10.77 PPM
21 NVSS J221918+631621 22 19 18.70 +63 16 22.08 11.03 NVSS
WN 2220.9+6304 22 22 37.61 +63 19 15.96 11.66 WENSS
22 NVSS J222237+631915 22 22 37.70 +63 19 15.96 11.67 NVSS
TGSSADR J222237.7+631917 22 22 37.70 +63 19 17.04 11.68 GMRTAS150M
CGPS J222237+631916 22 22 37.80 +63 19 15.96 11.68 CGPSNGPCAT
CGPS J222009+630829 22 20 09.60 +63 08 30.12 11.72 CGPSNGPCAT
TGSSADR J222009.1+630828 22 20 09.10 +63 08 27.96 11.77 GMRTAS150M
23 NVSS J222009+630823 22 20 09.50 +63 08 22.92 11.83 NVSS
WN 2218.5+6253 22 20 09.41 +63 08 21.12 11.85 WENSS
24 NVSS J221907+631752 22 19 07.61 +63 17 53.16 11.99 NVSS
25 S140 22 19 07.68 +63 17 06.00 12.08 HIIREGION
26 WDS J22192+6315 22 19 12.00 +63 15 00.00 12.15 WDS
CGPS J221941+632827 22 19 41.50 +63 28 27.84 12.36 CGPSNGPCAT
27 NVSS J221939+632826 22 19 39.91 +63 28 26.04 12.46 NVSS
28 SAO 20032 22 21 51.53 +63 08 24.00 12.53 SAO
BD+62 2070 22 21 51.79 +63 08 24.00 12.55 ACRS
HIP 110410 22 21 51.74 +63 08 23.64 12.55 HIPPARCOS
HD 212365 22 21 51.79 +63 08 23.28 12.56 HIC
PPM 23686 22 21 51.79 +63 08 23.28 12.56 PPM
