Swift-XRT Survey of Fermi Unassociated Sources

These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.
Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

4FGL J1954.5+2420

Field

Detected Excesses

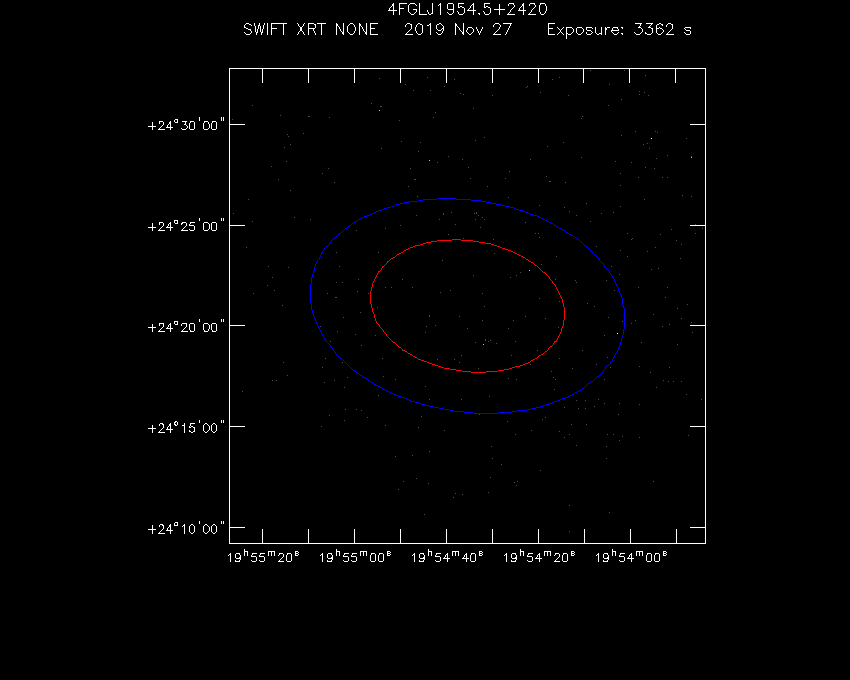

Swift-XRT image of the field for 4FGL J1954.5+2420 Swift-XRT detections in the field for 4FGL J1954.5+2420


No detected excesses found.

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 19 54 33.09 +24 25 26.67 7.71 (3.0 ± 1.1) x 10-3 11 2.659 2.691
2 19 54 30.91 +24 19 10.02 7.71 (3.0 ± 1.2) x 10-3 10 2.484 2.449

X-Ray and Gamma Ray Catalogs

More Catalogs

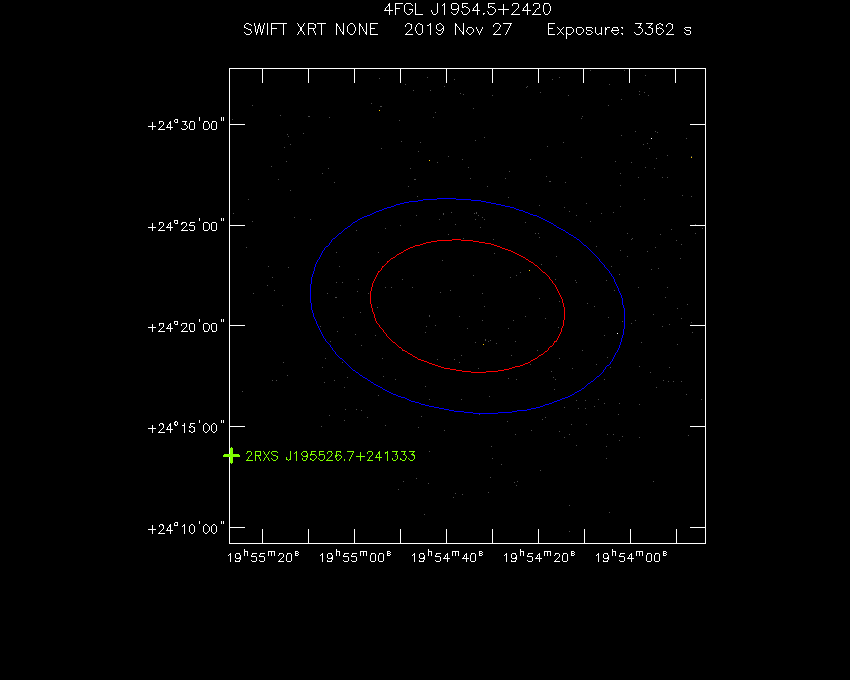

Swift-XRT image with known X-ray and gamma ray sources for 4FGL J1954.5+2420 Swift-XRT image with known radio, optical and UV sources for 4FGL J1954.5+2420

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 2RXS J195526.7+241333 19 55 26.74 +24 13 33.96 13.86 ROSAT
1RXS J195526.5+241324 19 55 26.50 +24 13 23.88 13.90 ROSAT

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 HD 188485 19 54 31.08 +24 19 10.20 2.07 HIC
PPM 109990 19 54 31.08 +24 19 10.20 2.07 PPM
HR 7601 19 54 31.10 +24 19 09.84 2.08 BSC5P
SAO 87908 19 54 31.10 +24 19 09.84 2.08 SAO
BD+23 3829 19 54 31.08 +24 19 09.84 2.08 ACRS
HIP 97961 19 54 31.06 +24 19 09.84 2.08 HIPPARCOS
WDS J19545+2419 19 54 30.00 +24 19 00.12 2.34 WDS
CGPS J195423+242235 19 54 23.50 +24 22 36.12 3.15 CGPSNGPCAT
TGSSADR J195423.2+242234 19 54 23.30 +24 22 35.04 3.18 GMRTAS150M
2 NVSS J195423+242239 19 54 23.30 +24 22 40.08 3.22 NVSS
3 1952+2415 19 54 23.21 +24 23 31.92 3.76 NORTH6CM
GB6 J1954+2423 19 54 24.00 +24 23 44.88 3.79 GB6
4 HD 339236 19 54 40.75 +24 25 13.08 4.40 HDEC
5 PGCC G61.56-1.85 19 54 21.10 +24 17 44.88 4.59 PLANCKGCC
WSRTGP 1952+2416 19 54 19.80 +24 24 29.88 4.99 WSRTGP
6 PGCC G61.57-1.92 19 54 38.59 +24 16 00.12 5.04 PLANCKGCC
TGSSADR J195419.4+242438 19 54 19.39 +24 24 38.88 5.15 GMRTAS150M
CGPS J195419+242440 19 54 19.39 +24 24 39.96 5.17 CGPSNGPCAT
7 NVSS J195419+242440 19 54 19.39 +24 24 39.96 5.18 NVSS
8 NVSS J195454+241739 19 54 54.00 +24 17 39.84 5.40 NVSS
CGPS J195454+241736 19 54 54.41 +24 17 36.96 5.49 CGPSNGPCAT
9 WSRTGP 1952+2415 19 54 57.41 +24 23 42.00 5.68 WSRTGP
10 1952+2406 19 54 33.31 +24 14 48.84 6.19 NORTH6CM
GB6 J1954+2414 19 54 34.01 +24 14 35.16 6.42 GB6
VLSSr J195435.5+241432 19 54 35.59 +24 14 31.92 6.46 VLSSR
CGPS J195435+241422 19 54 35.30 +24 14 22.92 6.62 CGPSNGPCAT
TXS 1952+241 19 54 35.69 +24 14 22.92 6.62 TEXAS
11 NVSS J195435+241422 19 54 35.30 +24 14 21.84 6.62 NVSS
TGSSADR J195435.3+241422 19 54 35.30 +24 14 21.84 6.62 GMRTAS150M
WSRTGP 1952+2406B 19 54 35.40 +24 14 20.04 6.65 WSRTGP
CGPS J195504+242110 19 55 04.80 +24 21 10.08 6.70 CGPSNGPCAT
12 NVSS J195505+242124 19 55 04.99 +24 21 24.12 6.75 NVSS
13 HD 345162 19 54 41.90 +24 14 18.96 6.84 HDEC
CGPS J195421+241424 19 54 22.01 +24 14 25.08 7.26 CGPSNGPCAT
14 NVSS J195421+241422 19 54 21.89 +24 14 22.92 7.30 NVSS
TGSSADR J195421.8+241422 19 54 21.89 +24 14 22.92 7.30 GMRTAS150M
WSRTGP 1952+2406A 19 54 22.30 +24 14 13.92 7.40 WSRTGP
15 NVSS J195413+242750 19 54 13.51 +24 27 50.04 8.46 NVSS
16 HD 339235 19 54 50.90 +24 30 10.08 9.83 HDEC
CGPS J195450+243049 19 54 50.40 +24 30 48.96 10.40 CGPSNGPCAT
17 NVSS J195450+243055 19 54 50.40 +24 30 56.16 10.50 NVSS
18 BD+23 3832 19 54 41.09 +24 10 33.96 10.51 ACRS
PPM 109997 19 54 41.06 +24 10 32.88 10.53 PPM
HD 345165 19 54 41.04 +24 10 32.88 10.53 HDEC
HD 345165 19 54 41.06 +24 10 32.88 10.53 HIC
HIP 97973 19 54 40.97 +24 10 32.16 10.53 HIPPARCOS
CGPS J195444+243135 19 54 44.40 +24 31 35.04 10.79 CGPSNGPCAT
19 NVSS J195444+243137 19 54 44.50 +24 31 36.84 10.83 NVSS
20 HD 339145 19 53 47.64 +24 23 20.04 11.13 HDEC
21 HD 345163 19 55 06.62 +24 10 59.52 12.28 HDEC
TGSSADR J195521.0+240937 19 55 21.00 +24 09 38.16 15.40 GMRTAS150M
CGPS J195520+240935 19 55 20.81 +24 09 34.92 15.40 CGPSNGPCAT
22 NVSS J195520+240935 19 55 21.00 +24 09 36.00 15.42 NVSS
