Swift-XRT Survey of Fermi Unassociated Sources

These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.
Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

3FGL J2054.3+6907

Field

Detected Excesses

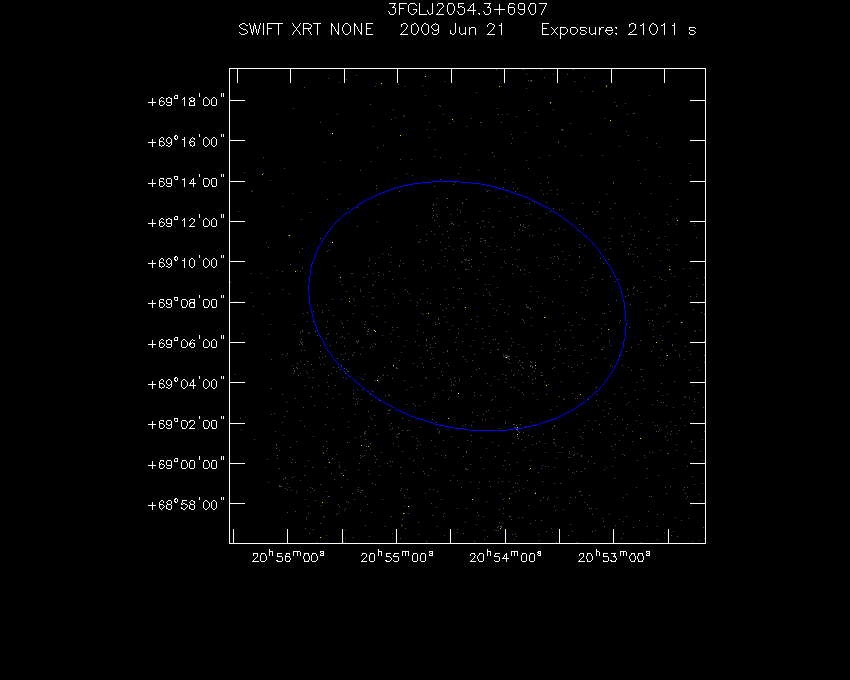

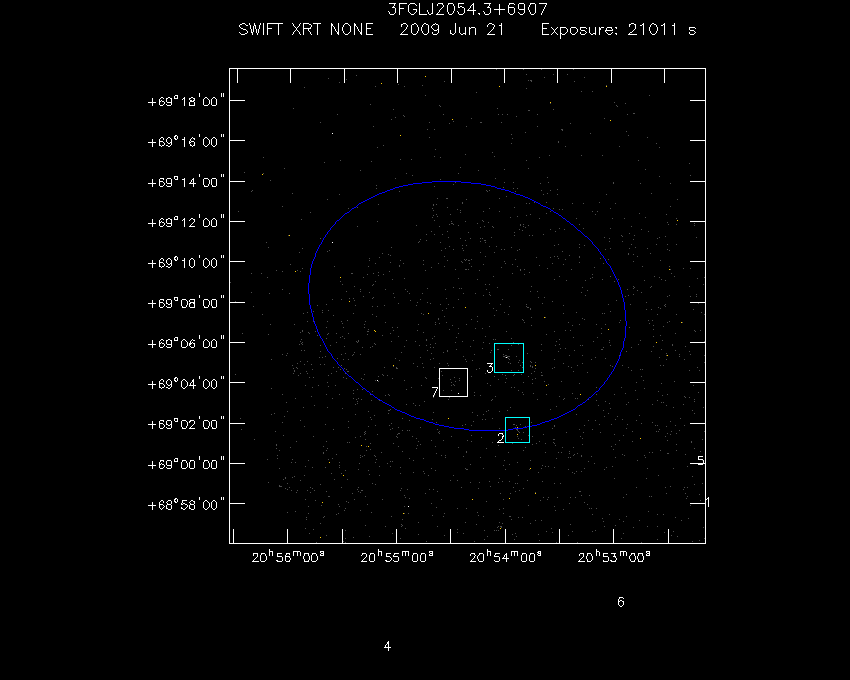

Swift-XRT image of the field for 3FGL J2054.3+6907 Swift-XRT detections in the field for 3FGL J2054.3+6907

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 20 52 00.42 +68 58 18.12 4.33 (3.7 ± 0.5) x 10-3 71 7.870 7.751
2 20 53 53.08 +69 01 42.57 4.72 (2.3 ± 0.4) x 10-3 47 5.419 5.822
3 20 53 57.94 +69 05 17.70 4.47 (2.1 ± 0.4) x 10-3 57 5.414 5.270
4 20 54 58.02 +68 51 10.98 6.31 (9 ± 2) x 10-4 18 3.449 3.868
5 20 52 04.11 +69 00 22.69 5.05 (1.0 ± 0.3) x 10-3 24 3.642 3.787
6 20 52 49.24 +68 53 22.43 5.00 (9 ± 3) x 10-4 23 3.573 3.376
7 20 54 28.69 +69 04 03.26 5.00 (9 ± 3) x 10-4 29 3.243 3.250

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 20 54 59.97 +69 01 36.44 5.40 (7 ± 2) x 10-4 20 2.690 2.814
2 20 54 03.09 +68 56 52.15 5.31 (7 ± 3) x 10-4 15 3.115 2.688
3 20 55 16.96 +69 01 15.26 4.95 (6 ± 2) x 10-4 26 2.821 2.599
4 20 53 50.10 +69 11 47.66 5.70 (5 ± 2) x 10-4 22 2.696 2.559
5 20 56 02.32 +68 59 00.61 5.64 (6 ± 3) x 10-4 20 2.577 2.349
6 20 54 24.15 +69 10 10.46 4.92 (5 ± 2) x 10-4 35 2.789 2.209

X-Ray and Gamma Ray Catalogs

More Catalogs

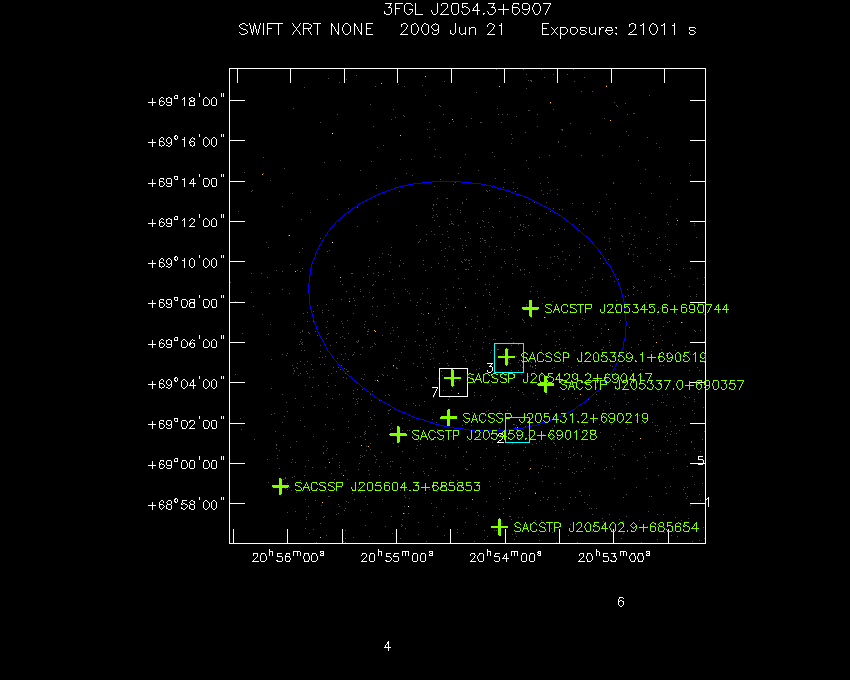

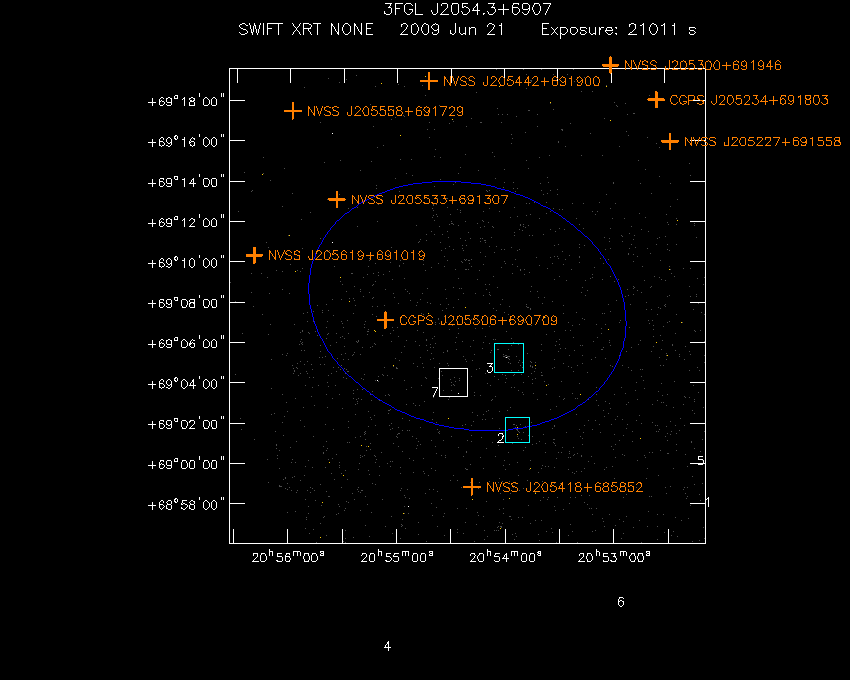

Swift-XRT image with known X-ray and gamma ray sources for 3FGL J2054.3+6907 Swift-XRT image with known radio, optical and UV sources for 3FGL J2054.3+6907

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 SACSTP J205345.6+690744 20 53 45.60 +69 07 44.40 3.14 SWIFT
2 SACSSP J205359.1+690519 20 53 59.14 +69 05 19.32 3.18 SWIFT
SACSHP J205359.0+690519 20 53 58.99 +69 05 18.60 3.20 SWIFT
SACSTP J205358.9+690519 20 53 58.94 +69 05 18.60 3.20 SWIFT
3 SACSSP J205429.2+690417 20 54 29.21 +69 04 17.40 3.64 SWIFT
SACSTP J205428.5+690400 20 54 28.49 +69 03 59.76 3.92 SWIFT
4 SACSTP J205337.0+690357 20 53 37.30 +69 03 57.24 5.52 SWIFT
5 SACSSP J205431.2+690219 20 54 31.18 +69 02 18.96 5.61 SWIFT
6 SACSTP J205459.2+690128 20 54 59.21 +69 01 28.20 7.25 SWIFT
7 SACSTP J205402.9+685654 20 54 02.93 +68 56 53.52 11.08 SWIFT
8 SACSSP J205604.3+685853 20 56 04.30 +68 58 52.68 12.89 SWIFT
SACSTP J205604.3+685853 20 56 04.30 +68 58 52.68 12.89 SWIFT

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 CGPS J205506+690709 20 55 06.50 +69 07 09.12 4.13 CGPSNGPCAT
2 NVSS J205533+691307 20 55 33.79 +69 13 08.04 8.36 NVSS
3 NVSS J205418+685852 20 54 18.31 +68 58 53.04 8.98 NVSS
CGPS J205419+685847 20 54 19.10 +68 58 48.00 9.06 CGPSNGPCAT
4 NVSS J205619+691019 20 56 19.80 +69 10 19.92 10.87 NVSS
CGPS J205620+691023 20 56 20.71 +69 10 23.88 10.96 CGPSNGPCAT
CGPS J205441+691859 20 54 41.81 +69 18 59.04 11.29 CGPSNGPCAT
5 NVSS J205442+691900 20 54 42.41 +69 19 00.84 11.32 NVSS
TGSSADR J205227.5+691556 20 52 27.50 +69 15 56.88 12.91 GMRTAS150M
CGPS J205227+691556 20 52 27.50 +69 15 56.88 12.91 CGPSNGPCAT
6 NVSS J205227+691558 20 52 27.31 +69 15 59.04 12.95 NVSS
TGSSADR J205558.0+691732 20 55 58.01 +69 17 31.92 12.97 GMRTAS150M
7 NVSS J205558+691729 20 55 58.70 +69 17 30.12 12.98 NVSS
CGPS J205559+691737 20 55 59.11 +69 17 36.96 13.09 CGPSNGPCAT
CGPS J205300+691943 20 53 00.10 +69 19 42.96 13.86 CGPSNGPCAT
8 CGPS J205234+691803 20 52 34.90 +69 18 02.88 13.87 CGPSNGPCAT
9 NVSS J205300+691946 20 53 00.41 +69 19 46.92 13.90 NVSS
