Swift-XRT Survey of Fermi Unassociated Sources

These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.
Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

3FGL J1823.2-1339

Field

Detected Excesses

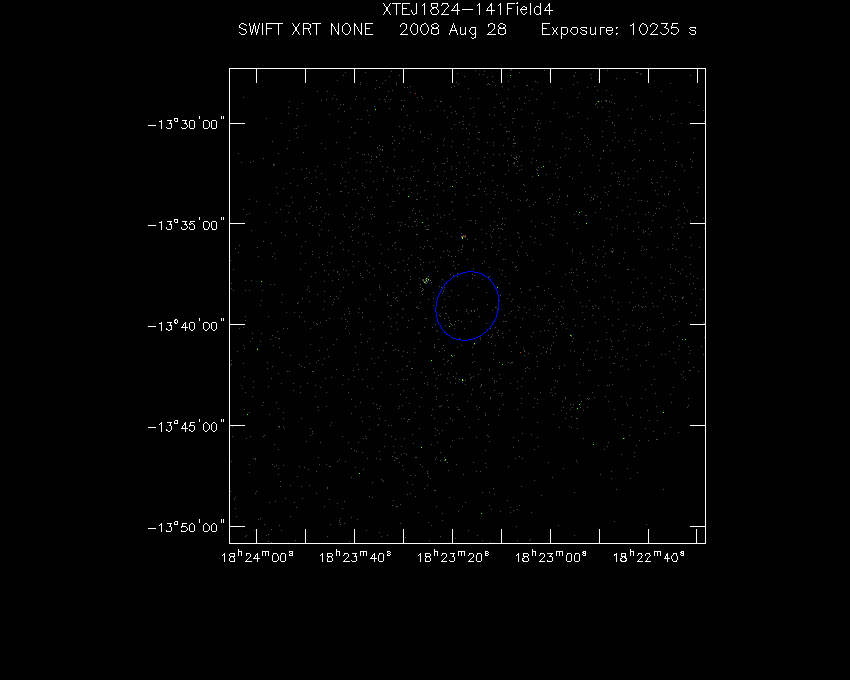

Swift-XRT image of the field for 3FGL J1823.2-1339 Swift-XRT detections in the field for 3FGL J1823.2-1339

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 18 23 25.56 -13 37 53.21 4.30 (6.1 ± 1.0) x 10-3 71 6.380 6.238
2 18 23 17.58 -13 35 44.80 4.64 (3.3 ± 0.7) x 10-3 45 4.193 4.583
3 18 22 58.26 -13 53 18.48 6.12 (1.5 ± 0.5) x 10-3 16 3.360 3.366
4 18 23 07.37 -13 31 58.26 4.81 (2.0 ± 0.6) x 10-3 37 3.495 3.308
5 18 23 42.99 -13 49 42.41 5.82 (1.5 ± 0.5) x 10-3 16 3.248 3.014

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 18 23 00.13 -13 51 42.52 6.93 (1.1 ± 0.4) x 10-3 10 2.571 2.841
2 18 23 19.94 -13 39 49.09 4.74 (1.6 ± 0.6) x 10-3 39 2.826 2.803
3 18 23 22.04 -13 46 40.08 5.44 (1.5 ± 0.6) x 10-3 19 2.866 2.716
4 18 23 17.89 -13 42 51.60 4.88 (1.4 ± 0.5) x 10-3 32 2.978 2.694
5 18 23 07.37 -13 31 58.26 4.81 (1.1 ± 0.5) x 10-3 37 2.726 2.173
6 18 23 48.34 -13 34 06.92 5.24 (7 ± 5) x 10-4 17 2.608 1.459

X-Ray and Gamma Ray Catalogs

More Catalogs

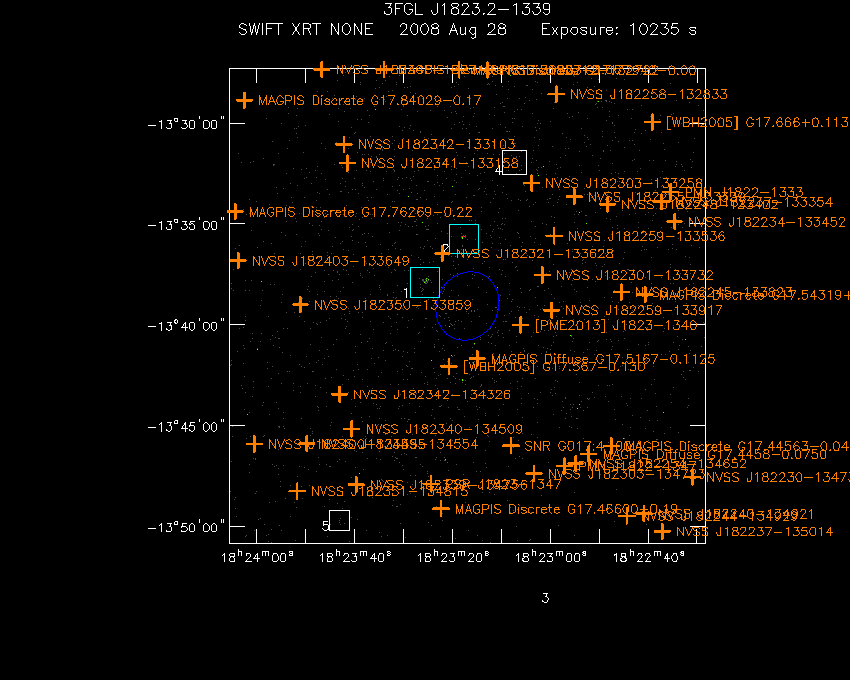

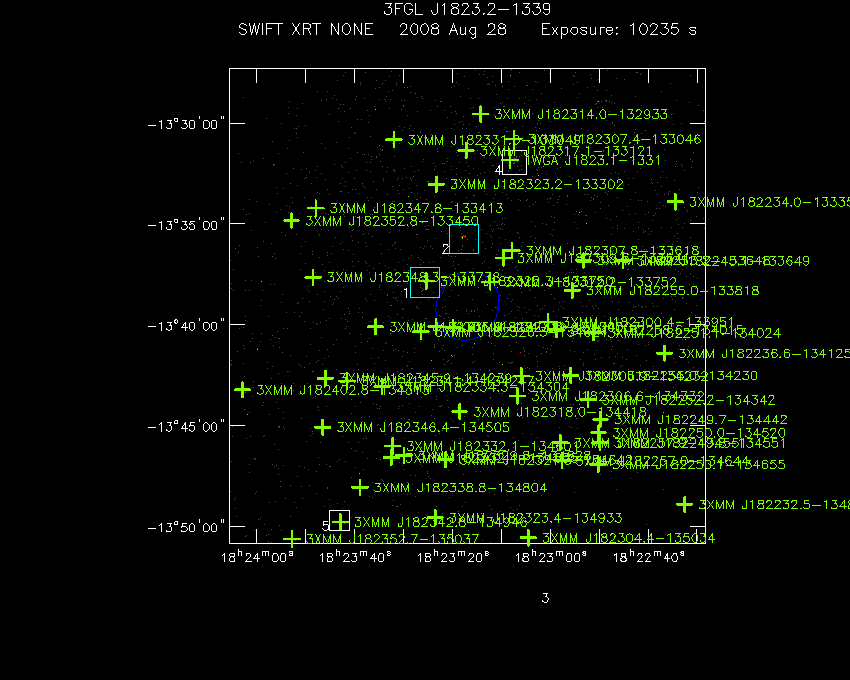

Swift-XRT image with known X-ray and gamma ray sources for 3FGL J1823.2-1339 Swift-XRT image with known radio, optical and UV sources for 3FGL J1823.2-1339

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 3XMM J182319.8-134007 18 23 19.87 -13 40 07.68 1.27 XMM-NEWTON
2 3XMM J182312.2-133752 18 23 12.29 -13 37 52.68 1.64 XMM-NEWTON
3 3XMM J182323.0-134005 18 23 23.30 -13 40 05.88 1.80 XMM-NEWTON
4 3XMM J182325.3-133750 18 23 25.32 -13 37 50.16 2.39 XMM-NEWTON
5 3XMM J182326.3-134021 18 23 26.40 -13 40 21.36 2.64 XMM-NEWTON
6 3XMM J182309.5-133641 18 23 09.60 -13 36 41.40 2.97 XMM-NEWTON
7 3XMM J182307.8-133618 18 23 07.82 -13 36 18.72 3.54 XMM-NEWTON
8 3XMM J182300.4-133951 18 23 00.43 -13 39 51.84 4.07 XMM-NEWTON
9 3XMM J182305.9-134232 18 23 05.90 -13 42 32.40 4.37 XMM-NEWTON
10 3XMM J182258.6-134015 18 22 58.68 -13 40 15.24 4.58 XMM-NEWTON
11 3XMM J182335.6-134006 18 23 35.64 -13 40 06.24 4.67 XMM-NEWTON
12 3XMM J182306.6-134332 18 23 06.67 -13 43 32.16 5.10 XMM-NEWTON
13 3XMM J182318.0-134418 18 23 18.50 -13 44 18.60 5.24 XMM-NEWTON
14 3XMM J182255.0-133818 18 22 55.51 -13 38 17.88 5.36 XMM-NEWTON
15 3XMM J182334.3-134304 18 23 34.32 -13 43 04.08 5.82 XMM-NEWTON
16 3XMM J182253.2-133648 18 22 53.21 -13 36 48.60 6.19 XMM-NEWTON
17 3XMM J182323.2-133302 18 23 23.26 -13 33 02.16 6.24 XMM-NEWTON
18 3XMM J182255.0-134230 18 22 55.80 -13 42 30.60 6.31 XMM-NEWTON
19 3XMM J182251.1-134024 18 22 51.14 -13 40 24.24 6.39 XMM-NEWTON
20 3XMM J182341.4-134247 18 23 41.50 -13 42 47.52 7.03 XMM-NEWTON
21 1WGA J1823.1-1331 18 23 08.21 -13 31 50.16 7.55 ROSAT
22 3XMM J182252.2-134342 18 22 52.25 -13 43 42.96 7.57 XMM-NEWTON
23 3XMM J182321.3-134642 18 23 21.34 -13 46 42.24 7.70 XMM-NEWTON
24 3XMM J182317.1-133121 18 23 17.16 -13 31 21.72 7.72 XMM-NEWTON
25 3XMM J182348.3-133738 18 23 48.41 -13 37 38.64 7.79 XMM-NEWTON
26 3XMM J182332.1-134601 18 23 32.18 -13 46 01.20 7.87 XMM-NEWTON
27 3XMM J182345.9-134239 18 23 45.94 -13 42 39.24 7.91 XMM-NEWTON
28 3XMM J182245.1-133649 18 22 45.17 -13 36 49.68 8.03 XMM-NEWTON
29 3XMM J182329.8-134628 18 23 29.86 -13 46 28.92 8.04 XMM-NEWTON
30 3XMM J182257.9-134551 18 22 57.94 -13 45 51.12 8.19 XMM-NEWTON
31 3XMM J182332.4-134635 18 23 32.47 -13 46 35.76 8.42 XMM-NEWTON
32 3XMM J182307.4-133046 18 23 07.42 -13 30 47.16 8.61 XMM-NEWTON
33 3XMM J182249.7-134442 18 22 49.75 -13 44 42.00 8.67 XMM-NEWTON
34 3XMM J182331.0-133049 18 23 31.90 -13 30 49.68 8.95 XMM-NEWTON
35 3XMM J182347.8-133413 18 23 47.83 -13 34 13.08 8.95 XMM-NEWTON
36 3XMM J182250.0-134520 18 22 50.11 -13 45 20.88 9.04 XMM-NEWTON
37 3XMM J182257.0-134644 18 22 57.60 -13 46 44.40 9.05 XMM-NEWTON
38 3XMM J182346.4-134505 18 23 46.44 -13 45 05.04 9.36 XMM-NEWTON
39 3XMM J182249.8-134551 18 22 49.82 -13 45 51.48 9.44 XMM-NEWTON
40 3XMM J182314.0-132933 18 23 14.21 -13 29 33.36 9.55 XMM-NEWTON
41 3XMM J182352.8-133450 18 23 52.80 -13 34 50.16 9.70 XMM-NEWTON
42 3XMM J182236.6-134125 18 22 36.67 -13 41 25.08 10.05 XMM-NEWTON
43 3XMM J182250.1-134655 18 22 50.16 -13 46 55.56 10.18 XMM-NEWTON
44 3XMM J182338.8-134804 18 23 38.86 -13 48 04.32 10.46 XMM-NEWTON
45 3XMM J182323.4-134933 18 23 23.47 -13 49 33.96 10.61 XMM-NEWTON
46 3XMM J182234.0-133354 18 22 34.49 -13 33 54.36 11.62 XMM-NEWTON
47 3XMM J182304.4-135034 18 23 04.49 -13 50 34.44 11.89 XMM-NEWTON
48 3XMM J182402.8-134313 18 24 02.83 -13 43 13.44 11.90 XMM-NEWTON
49 3XMM J182342.8-134946 18 23 42.89 -13 49 46.92 12.42 XMM-NEWTON
50 3XMM J182352.7-135037 18 23 52.75 -13 50 37.68 14.46 XMM-NEWTON
51 3XMM J182232.5-134854 18 22 32.52 -13 48 54.72 14.59 XMM-NEWTON

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 MAGPIS Diffuse G17.5167-0.1125 18 23 14.90 -13 41 40.92 2.66 MAGPIS
MAGPIS Discrete G17.56129-0.10 18 23 14.90 -13 41 42.00 2.66 MAGPIS
2 [PME2013] J1823-1340 18 23 06.00 -13 40 00.84 2.81 AT2FGLUS
3 NVSS J182321-133628 18 23 22.01 -13 36 28.08 2.88 NVSS
[SPT2015] ATCA J1823-1340 18 23 05.71 -13 40 03.00 2.89 FER2FUSRID
4 [WBH2005] G17.567-0.130 18 23 20.69 -13 42 03.96 3.13 WBHGP6CM
MAGPIS Discrete G17.56666-0.13 18 23 20.59 -13 42 03.96 3.13 MAGPIS
5 NVSS J182301-133732 18 23 01.61 -13 37 32.16 4.02 NVSS
6 NVSS J182259-133917 18 22 59.71 -13 39 16.92 4.19 NVSS
7 NVSS J182259-133536 18 22 59.21 -13 35 35.88 5.53 NVSS
8 NVSS J182303-133258 18 23 03.79 -13 32 58.92 6.88 NVSS
9 SNR G017.4-00.1 18 23 07.99 -13 46 00.12 7.25 SNRGREEN
10 NVSS J182255-133339 18 22 55.10 -13 33 38.88 7.58 NVSS
11 NVSS J182245-133823 18 22 45.50 -13 38 22.92 7.65 NVSS
12 NVSS J182342-134326 18 23 43.01 -13 43 27.12 7.70 NVSS
[WBH2005] G17.669-0.214 18 23 50.69 -13 39 01.08 8.22 WBHGP6CM
MAGPIS Discrete G17.66896-0.21 18 23 50.69 -13 39 00.00 8.22 MAGPIS
13 NVSS J182350-133859 18 23 51.00 -13 39 00.00 8.28 NVSS
14 NVSS J182340-134509 18 23 40.51 -13 45 10.08 8.35 NVSS
MAGPIS Diffuse G17.6250+0.0472 18 22 49.20 -13 33 55.08 8.48 MAGPIS
15 NVSS J182248-133402 18 22 48.31 -13 34 01.92 8.58 NVSS
16 MAGPIS Discrete G17.54319+0.04 18 22 40.61 -13 38 30.12 8.83 MAGPIS
17 NVSS J182303-134723 18 23 03.29 -13 47 22.92 8.94 NVSS
18 PSR J1823-1347 18 23 24.31 -13 47 53.88 9.00 PMPULSAR
PSR J1823-1347 18 23 24.31 -13 47 53.88 9.00 ATNFPULSAR
19 NVSS J182341-133158 18 23 41.40 -13 31 59.16 9.26 NVSS
20 PMN J1822-1347 18 22 57.10 -13 47 00.96 9.28 PMN
21 NVSS J182254-134652 18 22 54.79 -13 46 53.04 9.47 NVSS
22 MAGPIS Diffuse G17.4458-0.0750 18 22 52.10 -13 46 24.96 9.49 MAGPIS
23 MAGPIS Discrete G17.44563-0.04 18 22 47.50 -13 46 00.84 9.96 MAGPIS
24 NVSS J182342-133103 18 23 42.10 -13 31 03.00 10.10 NVSS
25 MAGPIS Discrete G17.46600-0.19 18 23 22.30 -13 49 08.04 10.13 MAGPIS
26 NVSS J182339-134756 18 23 39.60 -13 47 56.04 10.44 NVSS
27 NVSS J182349-134554 18 23 49.70 -13 45 54.00 10.48 NVSS
28 NVSS J182237-133354 18 22 37.30 -13 33 54.00 10.92 NVSS
29 NVSS J182234-133452 18 22 34.61 -13 34 53.04 11.10 NVSS
MAGPIS Diffuse G17.5861+0.0917 18 22 34.20 -13 34 51.96 11.19 MAGPIS
MAGPIS Discrete G17.72115+0.05 18 22 58.30 -13 28 41.88 11.32 MAGPIS
[WBH2005] G17.722+0.054 18 22 58.51 -13 28 41.16 11.32 WBHGP6CM
30 NVSS J182258-132833 18 22 58.80 -13 28 33.96 11.39 NVSS
MAGPIS Discrete G17.72476-0.24 18 24 03.41 -13 36 51.12 11.52 MAGPIS
[WBH2005] G17.725-0.243 18 24 03.41 -13 36 51.12 11.53 WBHGP6CM
31 PMN J1822-1333 18 22 35.40 -13 33 24.84 11.56 PMN
32 NVSS J182403-133649 18 24 03.70 -13 36 48.96 11.59 NVSS
[WBH2005] G17.725-0.244 18 24 03.79 -13 36 54.00 11.60 WBHGP6CM
33 MAGPIS Discrete G17.77940-0.00 18 23 18.60 -13 27 21.96 11.72 MAGPIS
[WBH2005] G17.780-0.008 18 23 18.70 -13 27 20.88 11.74 WBHGP6CM
34 NVSS J182312-132722 18 23 12.79 -13 27 21.96 11.75 NVSS
35 MAGPIS Discrete G17.76269-0.22 18 24 04.30 -13 34 23.16 12.44 MAGPIS
36 MAGPIS Discrete G17.80887-0.06 18 23 33.91 -13 27 20.16 12.45 MAGPIS
[WBH2005] G17.809-0.063 18 23 34.01 -13 27 19.08 12.48 WBHGP6CM
37 NVSS J182351-134815 18 23 51.70 -13 48 15.12 12.48 NVSS
38 NVSS J182400-134555 18 24 00.41 -13 45 55.08 12.58 NVSS
39 [WBH2005] G17.666+0.113 18 22 39.19 -13 29 57.12 12.93 WBHGP6CM
MAGPIS Discrete G17.66649+0.11 18 22 39.19 -13 29 57.12 12.94 MAGPIS
[WBH2005] G17.667+0.113 18 22 39.19 -13 29 56.04 12.94 WBHGP20CM
40 NVSS J182244-134929 18 22 44.30 -13 49 28.92 13.08 NVSS
41 NVSS J182240-134921 18 22 40.80 -13 49 22.08 13.51 NVSS
42 NVSS J182346-132719 18 23 46.61 -13 27 20.16 13.79 NVSS
43 NVSS J182230-134733 18 22 30.91 -13 47 33.00 14.02 NVSS
[WBH2005] G17.368-0.038 18 22 37.39 -13 50 00.96 14.55 WBHGP6CM
[WBH2005] G17.366-0.037 18 22 37.01 -13 50 03.84 14.65 WBHGP6CM
[WBH2005] G17.364-0.038 18 22 37.10 -13 50 12.12 14.73 WBHGP6CM
44 NVSS J182237-135014 18 22 37.10 -13 50 15.00 14.77 NVSS
MAGPIS Diffuse G17.3625-0.0375 18 22 36.70 -13 50 12.12 14.80 MAGPIS
[WBH2005] G17.362-0.041 18 22 37.30 -13 50 24.00 14.84 WBHGP6CM
[WBH2005] G17.361-0.038 18 22 36.70 -13 50 21.84 14.91 WBHGP6CM
45 MAGPIS Discrete G17.84029-0.17 18 24 02.40 -13 28 51.96 15.05 MAGPIS
[WBH2005] G17.840-0.177 18 24 02.40 -13 28 51.96 15.06 WBHGP6CM
