Swift-XRT Survey of Fermi Unassociated Sources

These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.
Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

3FGL J1802.4-3043

Field

Detected Excesses

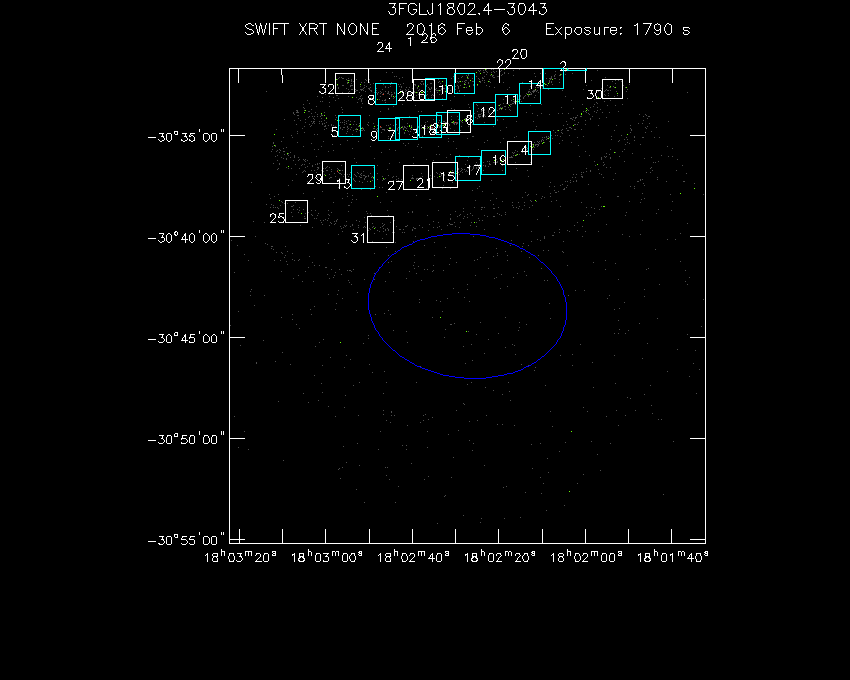

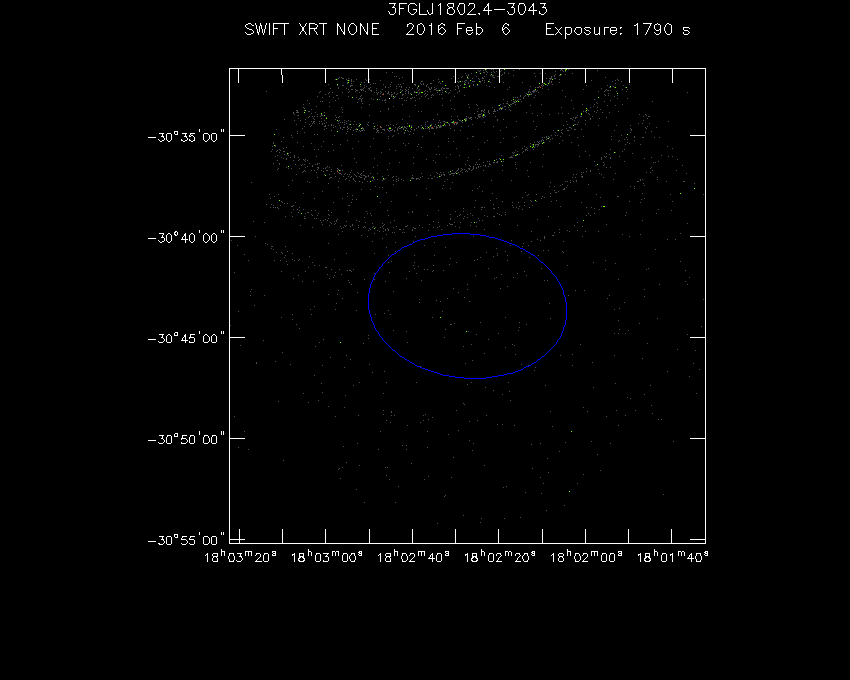

Swift-XRT image of the field for 3FGL J1802.4-3043 Swift-XRT detections in the field for 3FGL J1802.4-3043

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 18 02 37.34 -30 30 04.75 4.20 (2.5 ± 0.5) x 10-2 62 5.935 5.297
2 18 02 02.05 -30 31 17.57 4.22 (2.7 ± 0.5) x 10-2 64 5.842 5.269
3 18 02 35.75 -30 34 33.29 4.07 (2.8 ± 0.5) x 10-2 82 6.317 5.196
4 18 02 10.68 -30 35 21.00 4.20 (2.4 ± 0.5) x 10-2 66 5.848 5.153
5 18 02 54.43 -30 34 30.59 4.10 (2.8 ± 0.6) x 10-2 80 5.622 5.011
6 18 02 23.41 -30 33 52.90 4.07 (2.6 ± 0.5) x 10-2 72 6.657 5.001
7 18 02 41.26 -30 34 38.79 4.03 (2.5 ± 0.5) x 10-2 74 6.382 4.850
8 18 02 46.09 -30 32 55.39 3.96 (2.7 ± 0.6) x 10-2 87 6.226 4.781
9 18 02 45.36 -30 34 41.41 4.11 (2.2 ± 0.5) x 10-2 69 5.725 4.625
10 18 02 27.95 -30 32 24.87 4.04 (2.2 ± 0.5) x 10-2 86 5.979 4.568
11 18 02 12.89 -30 32 54.43 4.04 (2.1 ± 0.5) x 10-2 75 6.245 4.530
12 18 02 18.30 -30 33 30.61 4.11 (2.3 ± 0.5) x 10-2 72 5.775 4.452
13 18 02 51.40 -30 37 01.88 4.22 (1.8 ± 0.4) x 10-2 66 5.263 4.320
14 18 02 07.46 -30 32 10.59 4.07 (2.1 ± 0.5) x 10-2 68 6.004 4.153
15 18 02 27.23 -30 36 37.79 4.30 (2.0 ± 0.5) x 10-2 58 4.416 4.145
16 18 02 34.49 -30 32 42.00 4.02 (1.9 ± 0.5) x 10-2 88 6.176 4.111
17 18 02 21.23 -30 36 19.74 4.36 (1.6 ± 0.4) x 10-2 52 4.157 4.078
18 18 02 31.80 -30 34 23.63 4.07 (1.7 ± 0.4) x 10-2 73 5.372 4.064
19 18 02 15.34 -30 35 51.53 4.21 (1.6 ± 0.4) x 10-2 57 4.555 3.957
20 18 02 11.19 -30 30 40.24 4.04 (2.2 ± 0.6) x 10-2 74 6.183 3.941
21 18 02 32.38 -30 36 57.43 4.37 (1.5 ± 0.4) x 10-2 56 3.846 3.617
22 18 02 14.62 -30 31 11.77 3.97 (1.7 ± 0.5) x 10-2 75 6.417 3.524
23 18 02 29.22 -30 34 17.80 4.10 (1.5 ± 0.4) x 10-2 63 4.427 3.518
24 18 02 42.28 -30 30 20.36 4.44 (1.5 ± 0.4) x 10-2 38 3.695 3.504
25 18 03 06.67 -30 38 45.85 4.56 (1.1 ± 0.3) x 10-2 41 3.824 3.337
26 18 02 32.02 -30 29 54.75 4.28 (1.4 ± 0.4) x 10-2 50 3.673 3.312
27 18 02 39.13 -30 37 04.95 4.59 (1.1 ± 0.3) x 10-2 32 3.122 3.263
28 18 02 37.26 -30 32 44.58 3.99 (1.4 ± 0.4) x 10-2 92 5.904 3.253
29 18 02 58.02 -30 36 48.53 4.30 (1.3 ± 0.4) x 10-2 53 4.189 3.228
30 18 01 53.89 -30 32 41.73 4.42 (1.0 ± 0.3) x 10-2 40 3.775 3.161
31 18 02 47.41 -30 39 38.41 4.67 (10 ± 3) x 10-3 37 3.123 3.053
32 18 02 55.48 -30 32 24.77 4.10 (1.2 ± 0.4) x 10-2 60 3.991 3.016

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 18 02 34.94 -30 34 31.01 4.05 (2.3 ± 0.5) x 10-2 85 5.550 4.782
2 18 02 54.74 -30 34 30.05 4.10 (2.0 ± 0.5) x 10-2 76 5.571 4.484
3 18 02 16.27 -30 33 19.26 4.03 (1.8 ± 0.5) x 10-2 65 5.603 4.049
4 18 02 28.98 -30 36 46.36 4.28 (1.4 ± 0.4) x 10-2 59 4.305 3.565
5 18 02 10.67 -30 35 20.96 4.20 (1.6 ± 0.5) x 10-2 66 4.518 3.476
6 18 02 06.45 -30 32 01.82 4.04 (1.5 ± 0.5) x 10-2 71 5.668 3.458
7 18 02 21.23 -30 36 19.74 4.36 (1.4 ± 0.4) x 10-2 50 3.670 3.351
8 18 02 10.66 -30 35 20.89 4.20 (1.3 ± 0.4) x 10-2 66 3.942 3.308
9 18 02 11.98 -30 30 47.08 4.00 (1.1 ± 0.4) x 10-2 74 3.409 3.084
10 18 02 34.67 -30 32 42.21 4.01 (1.2 ± 0.4) x 10-2 90 5.235 3.009
11 18 03 10.51 -30 35 50.28 4.28 (1.2 ± 0.4) x 10-2 50 4.740 2.984
12 18 02 33.34 -30 29 57.31 4.17 (2.2 ± 0.8) x 10-2 54 5.419 2.972
13 18 02 50.42 -30 37 05.89 4.21 (10 ± 3) x 10-3 63 2.968 2.906
14 18 03 00.34 -30 36 41.93 4.27 (1.1 ± 0.4) x 10-2 45 3.759 2.867
15 18 02 22.54 -30 31 58.73 3.99 (1.0 ± 0.4) x 10-2 89 5.896 2.733
16 18 03 00.96 -30 39 06.13 4.59 (8 ± 3) x 10-3 40 3.565 2.668
17 18 02 55.48 -30 32 24.77 4.10 (9 ± 3) x 10-3 60 3.062 2.667
18 18 03 00.17 -30 36 43.02 4.27 (8 ± 3) x 10-3 45 3.628 2.589
19 18 02 22.72 -30 31 59.88 3.99 (10 ± 4) x 10-3 89 5.019 2.581
20 18 02 01.34 -30 36 58.68 4.69 (7 ± 3) x 10-3 31 3.040 2.529
21 18 02 06.66 -30 34 54.28 4.17 (9 ± 4) x 10-3 56 4.181 2.501
22 18 03 11.57 -30 38 22.39 4.83 (6 ± 3) x 10-3 25 2.705 2.469
23 18 02 50.67 -30 32 44.84 3.99 (9 ± 4) x 10-3 72 5.248 2.444
24 18 03 03.06 -30 34 01.12 4.13 (8 ± 3) x 10-3 56 3.182 2.384
25 18 03 02.85 -30 34 03.36 4.11 (8 ± 4) x 10-3 63 5.059 2.370
26 18 02 01.34 -30 34 04.90 4.16 (8 ± 3) x 10-3 56 4.447 2.338
27 18 01 55.49 -30 36 08.23 4.51 (7 ± 3) x 10-3 39 3.294 2.296
28 18 03 10.62 -30 35 48.96 4.30 (7 ± 3) x 10-3 49 2.819 2.292
29 18 03 06.67 -30 38 45.86 4.56 (6 ± 3) x 10-3 40 3.186 2.258
30 18 02 46.36 -30 37 10.97 4.48 (6 ± 3) x 10-3 44 2.809 2.222
31 18 03 01.82 -30 34 08.48 4.11 (7 ± 3) x 10-3 64 4.035 2.142
32 18 02 02.67 -30 34 18.95 4.16 (7 ± 3) x 10-3 61 3.898 1.976
33 18 03 05.16 -30 36 23.34 4.23 (6 ± 3) x 10-3 45 3.716 1.934
34 18 03 05.14 -30 36 23.01 4.23 (6 ± 3) x 10-3 45 3.296 1.911
35 18 01 58.54 -30 33 45.61 4.22 (5 ± 3) x 10-3 41 2.828 1.839
36 18 02 42.13 -30 32 51.67 3.95 (7 ± 4) x 10-3 75 5.382 1.823
37 18 01 50.15 -30 34 59.26 4.48 (4 ± 3) x 10-3 28 2.835 1.601

X-Ray and Gamma Ray Catalogs

More Catalogs

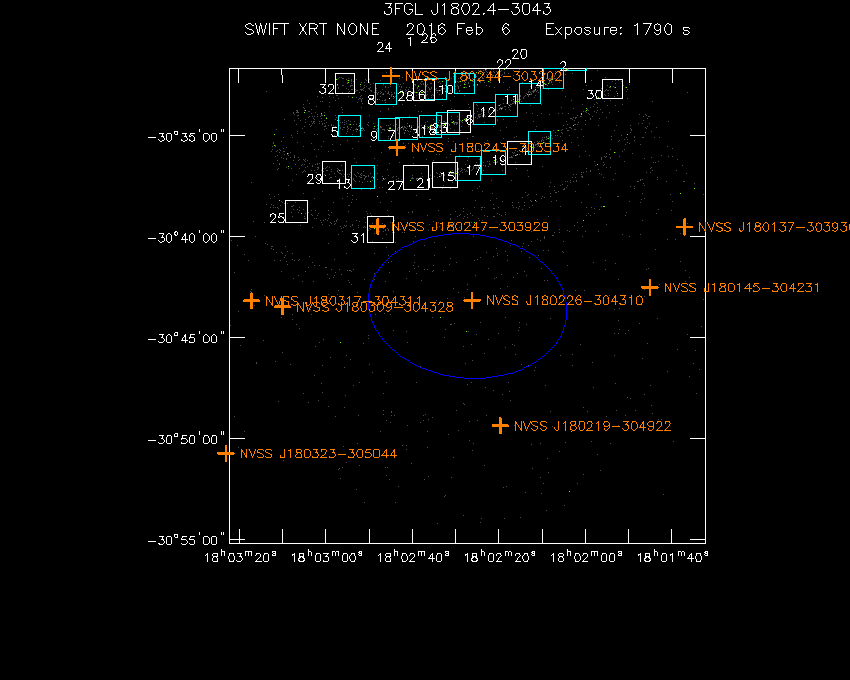

Swift-XRT image with known X-ray and gamma ray sources for 3FGL J1802.4-3043 Swift-XRT image with known radio, optical and UV sources for 3FGL J1802.4-3043

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 1RXS J180154.0-304706 18 01 54.00 -30 47 06.36 8.03 ROSAT

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 NVSS J180226-304310 18 02 26.21 -30 43 09.84 0.37 NVSS
MGPS J180225-304305 18 02 25.80 -30 43 05.16 0.48 MGPS2
TGSSADR J180224.5-304305 18 02 24.60 -30 43 05.88 0.68 GMRTAS150M
MGPS J180247-303932 18 02 47.81 -30 39 33.12 5.90 MGPS2
2 NVSS J180247-303929 18 02 48.00 -30 39 29.88 5.95 NVSS
TGSSADR J180248.3-303927 18 02 48.31 -30 39 27.00 6.03 GMRTAS150M
TGSSADR J180219.6-304921 18 02 19.70 -30 49 21.00 6.12 GMRTAS150M
3 NVSS J180219-304922 18 02 19.70 -30 49 23.16 6.15 NVSS
MGPS J180219-304925 18 02 19.51 -30 49 26.04 6.21 MGPS2
4 NVSS J180243-303534 18 02 43.51 -30 35 35.16 8.61 NVSS
TGSSADR J180243.4-303533 18 02 43.51 -30 35 33.00 8.63 GMRTAS150M
TGSSADR J180309.6-304329 18 03 09.60 -30 43 30.00 9.10 GMRTAS150M
5 NVSS J180145-304231 18 01 45.19 -30 42 30.96 9.10 NVSS
6 NVSS J180309-304328 18 03 10.01 -30 43 28.92 9.17 NVSS
7 NVSS J180317-304311 18 03 17.11 -30 43 10.92 10.70 NVSS
8 NVSS J180137-303930 18 01 37.20 -30 39 30.96 11.47 NVSS
TGSSADR J180137.0-303931 18 01 37.10 -30 39 32.04 11.49 GMRTAS150M
MGPS J180136-303930 18 01 37.01 -30 39 29.88 11.52 MGPS2
9 NVSS J180244-303202 18 02 44.90 -30 32 02.04 12.03 NVSS
MGPS J180322-305038 18 03 22.90 -30 50 38.04 13.94 MGPS2
TGSSADR J180323.0-305045 18 03 22.99 -30 50 44.88 14.02 GMRTAS150M
10 NVSS J180323-305044 18 03 23.11 -30 50 44.88 14.04 NVSS
