These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.
Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

3FGL J1231.6+4825

Field

Detected Excesses

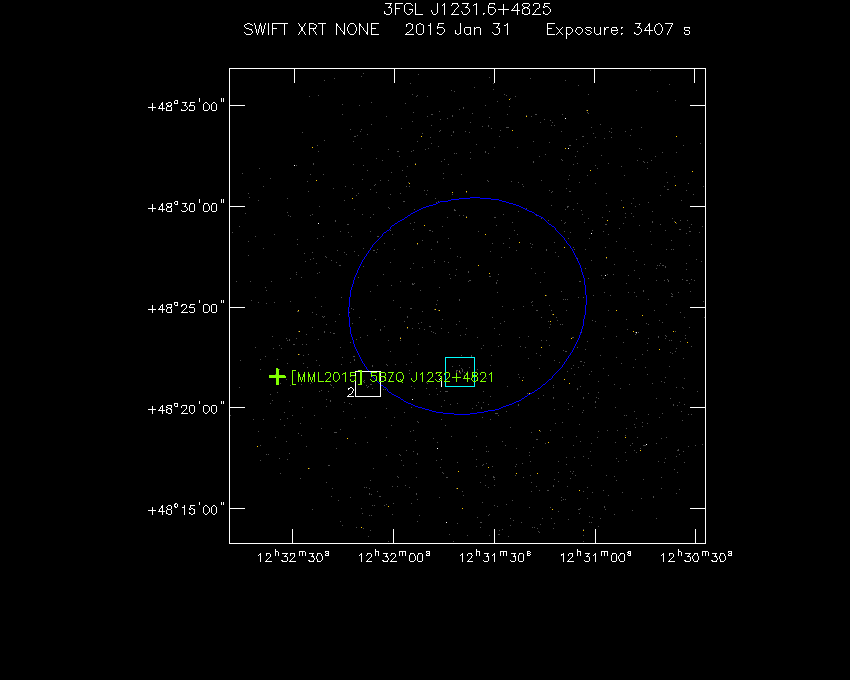

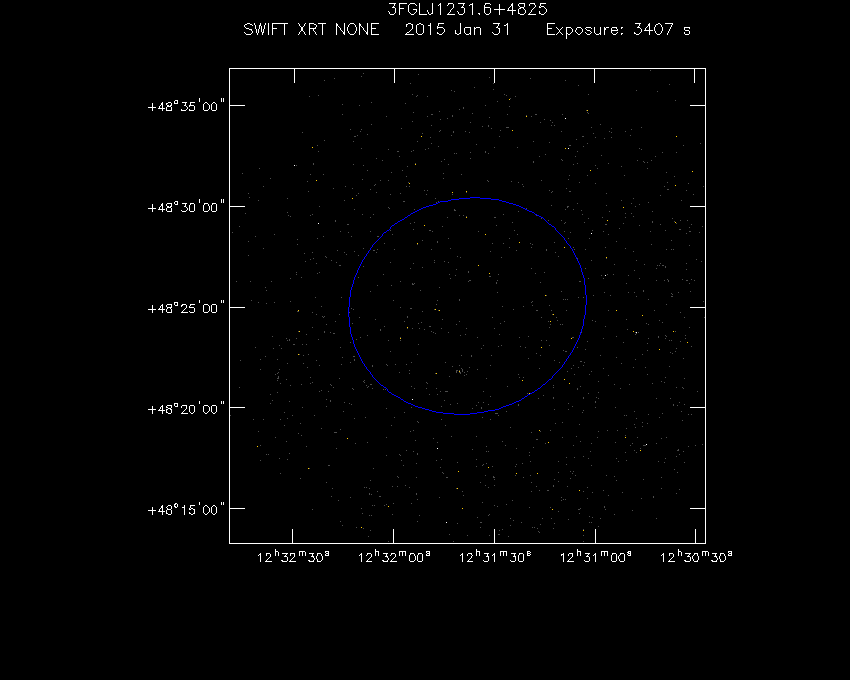

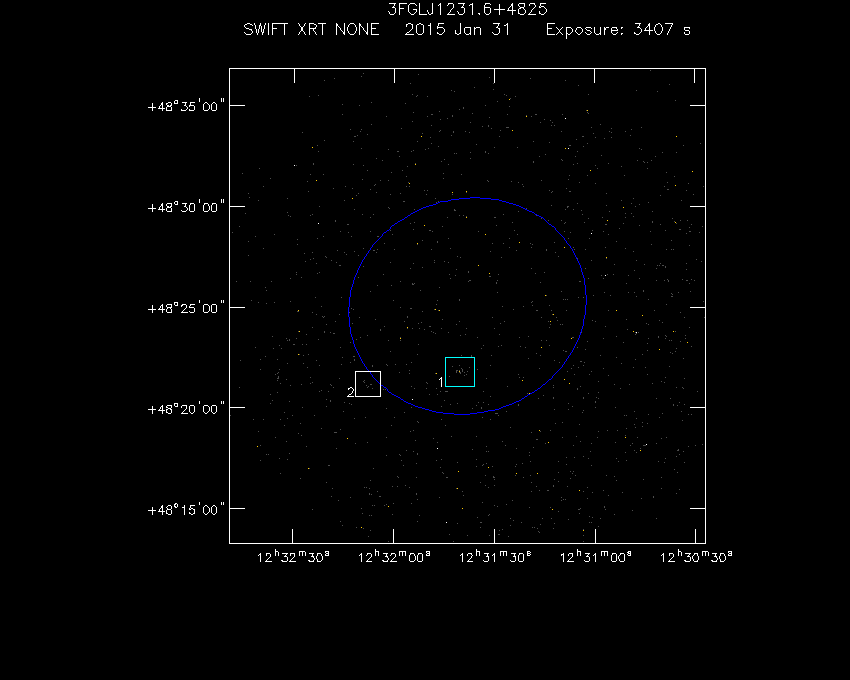

Swift-XRT image of the field for 3FGL J1231.6+4825 Swift-XRT detections in the field for 3FGL J1231.6+4825

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 12 31 40.28 +48 21 48.97 5.05 (9 ± 2) x 10-3 33 4.526 4.543
2 12 32 07.79 +48 21 12.40 6.04 (4.3 ± 1.4) x 10-3 12 3.032 3.019

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 12 32 05.63 +48 31 00.09 6.12 (4.2 ± 1.4) x 10-3 15 2.879 2.985
2 12 30 47.64 +48 23 45.37 5.53 (4.0 ± 1.4) x 10-3 14 2.827 2.906
3 12 32 34.36 +48 21 31.15 5.59 (4.0 ± 1.4) x 10-3 15 3.269 2.855
4 12 30 46.14 +48 18 05.88 5.70 (3.7 ± 1.3) x 10-3 16 2.555 2.799
5 12 30 14.85 +48 25 34.65 6.78 (2.9 ± 1.1) x 10-3 12 2.466 2.710
6 12 30 56.24 +48 26 42.81 5.89 (2.9 ± 1.2) x 10-3 16 2.772 2.399

X-Ray and Gamma Ray Catalogs

More Catalogs

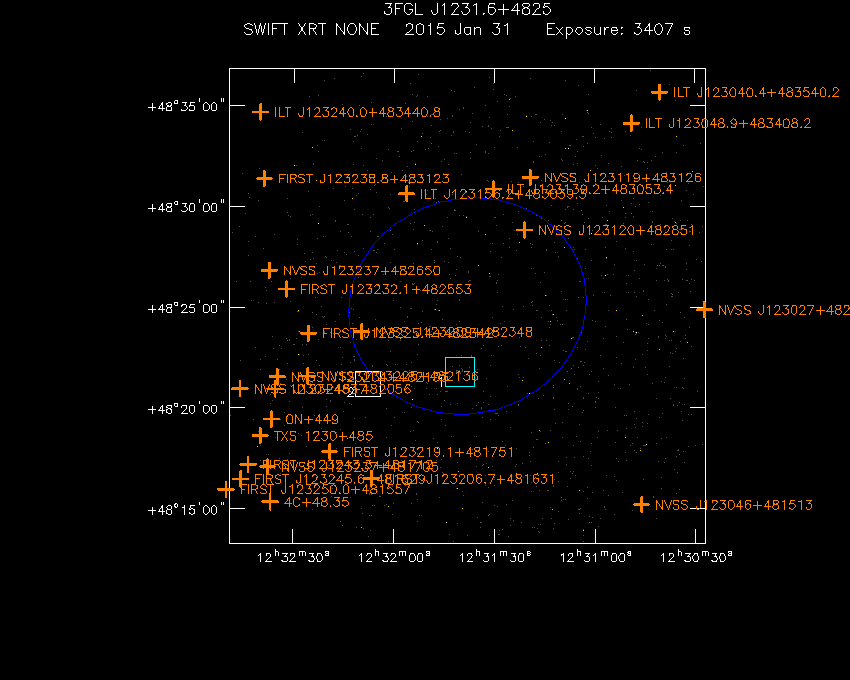

Swift-XRT image with known X-ray and gamma ray sources for 3FGL J1231.6+4825 Swift-XRT image with known radio, optical and UV sources for 3FGL J1231.6+4825

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 [MML2015] 5BZQ J1232+4821 12 32 34.80 +48 21 33.12 10.07 null

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 NVSS J123120+482851 12 31 20.90 +48 28 50.88 4.73 NVSS
TGSSADR J123120.9+482855 12 31 21.00 +48 28 54.84 4.78 GMRTAS150M
ILT J123120.8+482855.4 12 31 20.81 +48 28 54.84 4.79 LOTSSPRCAT
FIRST J123120.7+482856 12 31 20.81 +48 28 55.92 4.80 FIRST
WN 1228.9+4845 12 31 20.50 +48 28 54.12 4.80 WENSS
2 NVSS J123209+482348 12 32 09.60 +48 23 48.12 5.40 NVSS
3 ILT J123130.2+483053.4 12 31 30.19 +48 30 52.92 5.96 LOTSSPRCAT
FIRST J123130.0+483054 12 31 30.10 +48 30 54.00 5.98 FIRST
4 ILT J123156.2+483039.3 12 31 56.21 +48 30 38.88 6.35 LOTSSPRCAT
FIRST J123119.1+483124 12 31 19.10 +48 31 24.96 7.06 FIRST
5 NVSS J123119+483126 12 31 19.20 +48 31 27.12 7.09 NVSS
6 FIRST J123225.4+482342 12 32 25.51 +48 23 43.08 8.00 FIRST
FIRST J123224.9+482141 12 32 25.01 +48 21 42.12 8.50 FIRST
TGSSADR J123225.5+482141 12 32 25.51 +48 21 41.04 8.59 GMRTAS150M
ILT J123225.5+482140.2 12 32 25.51 +48 21 39.96 8.59 LOTSSPRCAT
7 NVSS J123225+482136 12 32 25.70 +48 21 36.00 8.64 NVSS
WN 1230.2+4837A 12 32 25.90 +48 21 38.16 8.66 WENSS
FIRST J123227.5+482132 12 32 27.60 +48 21 33.12 8.95 FIRST
8 FIRST J123232.1+482553 12 32 32.11 +48 25 54.12 9.01 FIRST
9 FIRST J123206.7+481631 12 32 06.70 +48 16 31.08 9.80 FIRST
VLSSr J123233.4+482133 12 32 33.50 +48 21 33.12 9.86 VLSSR
10 FIRST J123219.1+481751 12 32 19.10 +48 17 51.00 9.94 FIRST
11 NVSS J123237+482650 12 32 37.30 +48 26 49.92 9.99 NVSS
7C 123011.1+483808 12 32 34.61 +48 21 34.92 10.02 UC7C151MHZ
FIRST J123237.5+482651 12 32 37.61 +48 26 51.00 10.04 FIRST
12 NVSS J123234+482133 12 32 34.80 +48 21 33.12 10.06 NVSS
FIRST J123234.7+482132 12 32 34.80 +48 21 33.12 10.07 FIRST
WN 1230.2+4837B 12 32 34.80 +48 21 33.12 10.07 WENSS
[MML2015] 5BZQ J1232+4821 12 32 34.80 +48 21 33.12 10.07 ROMABZCAT
CRATES J123235+482105 12 32 34.80 +48 21 33.12 10.07 CRATES
CGRaBS J1232+4821 12 32 34.80 +48 21 33.12 10.07 CGRABS
TGSSADR J123234.7+482133 12 32 34.80 +48 21 33.12 10.07 GMRTAS150M
ILT J123234.8+482132.7 12 32 34.80 +48 21 33.12 10.07 LOTSSPRCAT
ILT J123237.7+482653.8 12 32 37.70 +48 26 53.88 10.07 LOTSSPRCAT
GB6 J1232+4821 12 32 35.40 +48 21 05.04 10.33 GB6
WN 1230.2+4837 12 32 36.50 +48 21 27.00 10.36 WENSS
BP155 12 32 36.70 +48 21 33.12 10.37 DIXON
13 1230+4837 12 32 35.40 +48 20 57.12 10.38 NORTH6CM
1230+4837 12 32 35.40 +48 20 57.12 10.38 NORTH20CM
GB 1230+48.6 12 32 37.39 +48 20 39.12 10.81 DIXON
14 ON+449 12 32 36.50 +48 19 27.12 11.22 DIXON
FIRST J123027.4+482457 12 30 27.50 +48 24 57.96 11.70 FIRST
15 NVSS J123027+482451 12 30 27.19 +48 24 51.84 11.74 NVSS
ILT J123026.9+482448.7 12 30 26.90 +48 24 48.96 11.79 LOTSSPRCAT
16 FIRST J123238.8+483123 12 32 38.81 +48 31 23.16 11.90 FIRST
WN 1230.2+4837C 12 32 45.79 +48 20 57.12 11.99 WENSS
TGSSADR J123245.8+482056 12 32 45.79 +48 20 56.04 12.00 GMRTAS150M
17 NVSS J123245+482056 12 32 45.91 +48 20 57.12 12.00 NVSS
ILT J123245.9+482056.0 12 32 45.91 +48 20 56.04 12.01 LOTSSPRCAT
FIRST J123245.8+482055 12 32 45.91 +48 20 56.04 12.01 FIRST
18 TXS 1230+485 12 32 39.79 +48 18 38.16 12.11 TEXAS
19 ILT J123048.9+483408.2 12 30 48.89 +48 34 08.04 12.17 LOTSSPRCAT
VLSSr J123248.0+482038 12 32 48.00 +48 20 38.04 12.45 VLSSR
FIRST J123236.4+481705 12 32 36.50 +48 17 06.00 12.57 FIRST
VLSSr J123236.8+481700 12 32 36.89 +48 17 00.96 12.68 VLSSR
TGSSADR J123237.4+481705 12 32 37.51 +48 17 04.92 12.70 GMRTAS150M
7C 123014.0+483337 12 32 37.51 +48 17 03.84 12.71 UC7C151MHZ
WN 1230.2+4833 12 32 37.51 +48 17 04.92 12.72 WENSS
ILT J123237.5+481705.0 12 32 37.51 +48 17 04.92 12.72 LOTSSPRCAT
20 NVSS J123237+481705 12 32 37.61 +48 17 06.00 12.72 NVSS
FIRST J123238.1+481704 12 32 38.11 +48 17 04.92 12.79 FIRST
21 NVSS J123046+481513 12 30 46.10 +48 15 12.96 13.09 NVSS
FIRST J123045.8+481513 12 30 45.91 +48 15 14.04 13.11 FIRST
ILT J123045.9+481512.8 12 30 45.91 +48 15 12.96 13.12 LOTSSPRCAT
22 FIRST J123243.3+481712 12 32 43.39 +48 17 12.12 13.42 FIRST
23 4C+48.35 12 32 36.79 +48 15 20.88 13.78 DIXON
24 ILT J123240.0+483440.8 12 32 40.01 +48 34 41.16 14.06 LOTSSPRCAT
25 FIRST J123245.6+481629 12 32 45.60 +48 16 28.92 14.15 FIRST
26 ILT J123040.4+483540.2 12 30 40.39 +48 35 39.84 14.26 LOTSSPRCAT
FIRST J123040.3+483540 12 30 40.30 +48 35 40.92 14.27 FIRST
27 FIRST J123250.0+481557 12 32 49.99 +48 15 57.96 15.05 FIRST
