Swift-XRT Survey of Fermi Unassociated Sources

These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.
Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

2FGL J1746.5-3238

Field

Detected Excesses

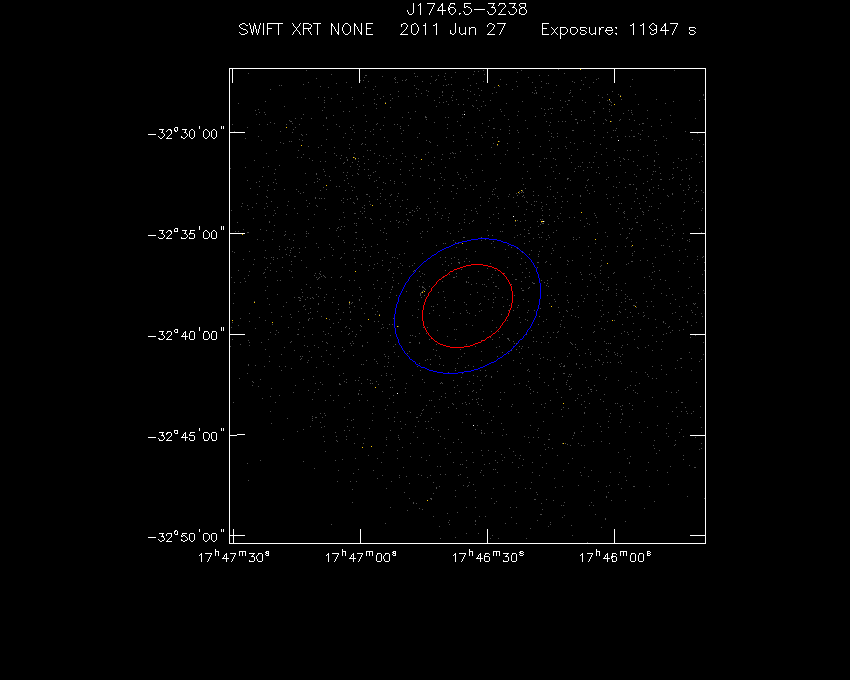

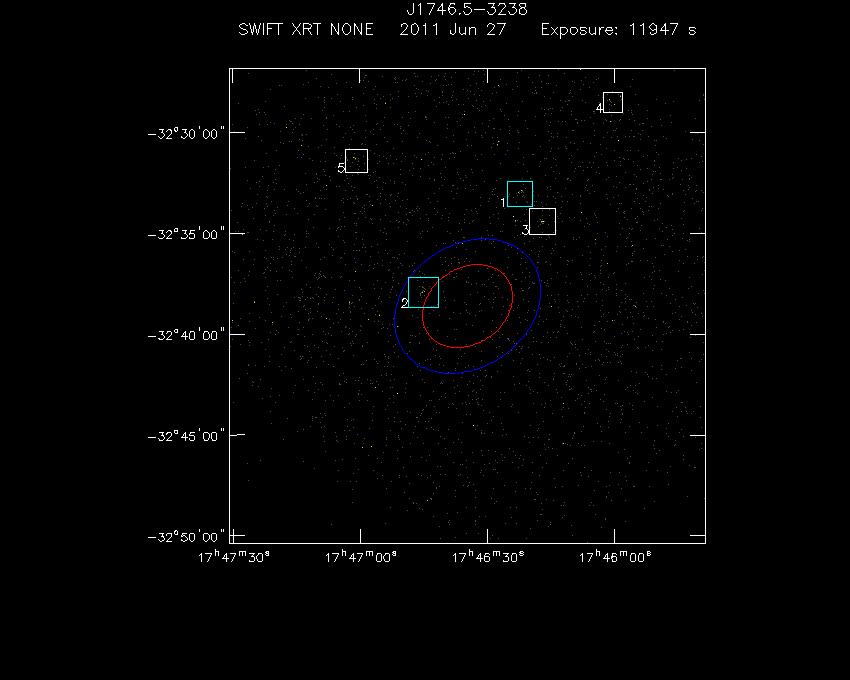

Swift-XRT image of the field for 2FGL J1746.5-3238 Swift-XRT detections in the field for 2FGL J1746.5-3238

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 17 46 22.23 -32 33 04.66 4.66 (3.1 ± 0.7) x 10-3 40 4.303 4.623
2 17 46 44.91 -32 37 57.35 4.66 (2.5 ± 0.6) x 10-3 44 4.339 4.106
3 17 46 16.97 -32 34 24.95 4.42 (2.5 ± 0.6) x 10-3 42 4.433 3.930
4 17 46 00.43 -32 28 29.93 4.57 (1.7 ± 0.5) x 10-3 31 3.267 3.260
5 17 47 00.74 -32 31 24.92 4.51 (1.6 ± 0.5) x 10-3 32 3.329 3.109

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 17 45 38.06 -32 45 27.71 6.21 (1.1 ± 0.4) x 10-3 13 2.663 2.807
2 17 46 33.33 -32 37 26.48 4.88 (9 ± 4) x 10-4 32 2.617 2.021

X-Ray and Gamma Ray Catalogs

More Catalogs

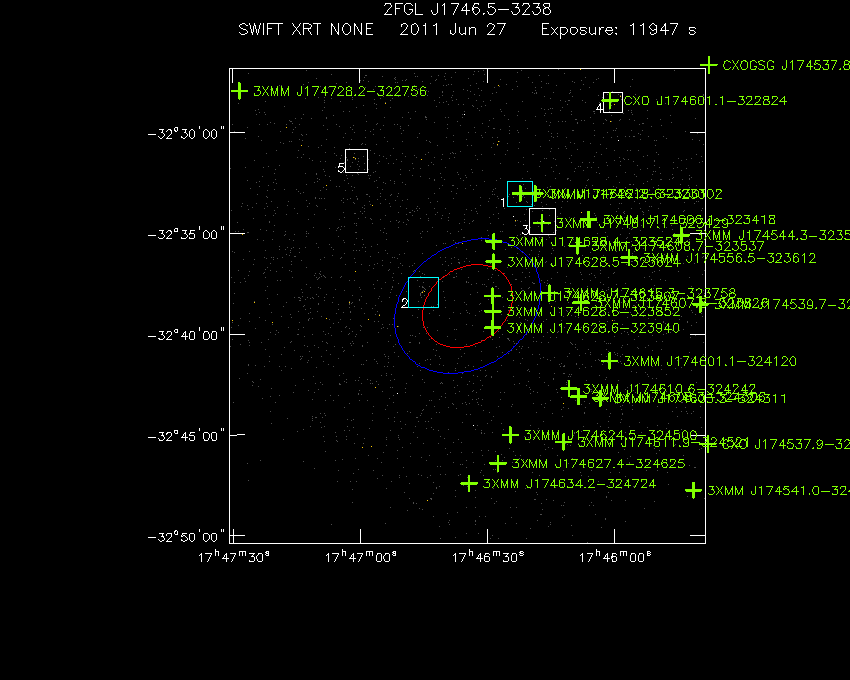

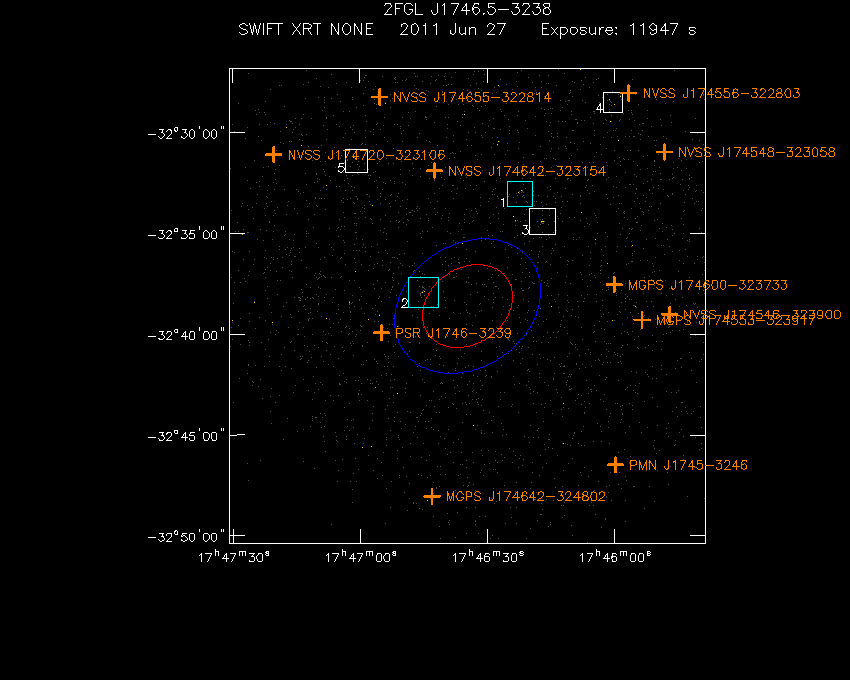

Swift-XRT image with known X-ray and gamma ray sources for 2FGL J1746.5-3238 Swift-XRT image with known radio, optical and UV sources for 2FGL J1746.5-3238

Known X-Ray and Gamma Ray Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Observatory/Database Table
1 3XMM J174628.6-323852 17 46 28.66 -32 38 52.44 1.29 XMM-NEWTON
2 3XMM J174628.7-323807 17 46 28.73 -32 38 07.44 1.34 XMM-NEWTON
3 3XMM J174628.6-323940 17 46 28.68 -32 39 41.04 1.65 XMM-NEWTON
4 3XMM J174628.5-323624 17 46 28.54 -32 36 24.48 2.55 XMM-NEWTON
5 3XMM J174628.4-323524 17 46 28.46 -32 35 24.36 3.46 XMM-NEWTON
6 3XMM J174615.3-323758 17 46 15.38 -32 37 58.44 4.11 XMM-NEWTON
7 3XMM J174617.1-323429 17 46 17.11 -32 34 29.64 5.53 XMM-NEWTON
8 3XMM J174607.8-323826 17 46 07.90 -32 38 26.52 5.64 XMM-NEWTON
9 3XMM J174622.2-323301 17 46 22.22 -32 33 01.44 6.17 XMM-NEWTON
10 3XMM J174608.7-323537 17 46 08.78 -32 35 37.68 6.21 XMM-NEWTON
11 3XMM J174610.6-324242 17 46 10.68 -32 42 42.48 6.50 XMM-NEWTON
12 3XMM J174618.6-323302 17 46 18.67 -32 33 02.16 6.52 XMM-NEWTON
13 3XMM J174624.5-324500 17 46 24.58 -32 45 00.36 6.73 XMM-NEWTON
14 3XMM J174608.3-324306 17 46 08.40 -32 43 06.60 7.12 XMM-NEWTON
15 3XMM J174606.1-323418 17 46 06.10 -32 34 18.48 7.40 XMM-NEWTON
16 3XMM J174601.1-324120 17 46 01.13 -32 41 20.04 7.56 XMM-NEWTON
3XMM J174559.7-324101 17 45 59.74 -32 41 00.96 7.73 XMM-NEWTON
17 3XMM J174627.4-324625 17 46 27.46 -32 46 24.96 7.95 XMM-NEWTON
18 3XMM J174603.3-324311 17 46 03.31 -32 43 11.28 8.03 XMM-NEWTON
19 3XMM J174611.9-324521 17 46 11.93 -32 45 21.24 8.26 XMM-NEWTON
20 3XMM J174556.5-323612 17 45 56.59 -32 36 12.96 8.37 XMM-NEWTON
21 3XMM J174634.2-324724 17 46 34.27 -32 47 24.72 8.79 XMM-NEWTON
22 3XMM J174544.3-323505 17 45 44.30 -32 35 05.64 11.17 XMM-NEWTON
23 3XMM J174539.7-323830 17 45 39.79 -32 38 30.84 11.55 XMM-NEWTON
3XMM J174539.7-323830 17 45 39.74 -32 38 29.76 11.56 XMM-NEWTON
3XMM J174601.4-322829 17 46 01.42 -32 28 29.64 12.31 XMM-NEWTON
24 CXO J174601.1-322824 17 46 01.10 -32 28 24.60 12.42 CHANDRA
25 CXO J174537.9-324526 17 45 37.94 -32 45 26.64 13.75 CHANDRA
3XMM J174537.8-324528 17 45 37.82 -32 45 28.08 13.78 XMM-NEWTON
26 3XMM J174541.0-324744 17 45 41.30 -32 47 44.52 14.51 XMM-NEWTON
27 3XMM J174728.2-322756 17 47 28.30 -32 27 56.16 15.55 XMM-NEWTON
28 CXOGSG J174537.8-322638 17 45 37.90 -32 26 38.76 16.92 CHANDRA
3XMM J174537.9-322637 17 45 37.99 -32 26 36.96 16.93 XMM-NEWTON
3XMM J174537.9-322637 17 45 37.87 -32 26 37.32 16.94 XMM-NEWTON

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
1 PSR J1746-3239 17 46 54.91 -32 39 56.16 4.47 ATNFPULSAR
MGPS J174642-323156 17 46 42.31 -32 31 55.92 6.87 MGPS2
2 NVSS J174642-323154 17 46 42.41 -32 31 54.12 6.90 NVSS
3 MGPS J174600-323733 17 46 00.10 -32 37 32.88 7.35 MGPS2
4 MGPS J174553-323917 17 45 53.50 -32 39 18.00 8.68 MGPS2
5 MGPS J174642-324802 17 46 43.01 -32 48 02.88 9.59 MGPS2
6 NVSS J174546-323900 17 45 46.99 -32 39 01.08 10.04 NVSS
MGPS J174546-323902 17 45 46.90 -32 39 02.88 10.06 MGPS2
7 PMN J1745-3246 17 45 59.71 -32 46 28.92 10.77 PMN
MGPS J174655-322816 17 46 55.20 -32 28 15.96 11.21 MGPS2
8 NVSS J174655-322814 17 46 55.30 -32 28 14.88 11.25 NVSS
TGSSADR J174655.5-322814 17 46 55.51 -32 28 14.88 11.26 GMRTAS150M
9 NVSS J174720-323106 17 47 20.21 -32 31 05.88 12.18 NVSS
MGPS J174547-323108 17 45 47.81 -32 31 09.12 12.37 MGPS2
10 NVSS J174548-323058 17 45 48.31 -32 30 57.96 12.40 NVSS
11 NVSS J174556-322803 17 45 56.71 -32 28 03.00 13.24 NVSS
