Swift-XRT Survey of Fermi Unassociated Sources


These results are part of the Swift program to follow-up Fermi unassociated sources in an attempt to find X-ray counterparts to the unidentified gamma-ray sources. As new observations are performed, these pages will be updated in nearly real time. Please use these results as a guide and proceed with caution when using them in a publication since they are the result of an automated analysis.

When using these data and results in publications, please reference M.C. Stroh & A.D. Falcone 2013, ApJS, 207, 28; arXiv: 1305.4949 for a description of many of the analysis techniques used to reduce these data (note: a more detailed paper describing the complete data set and analysis is forthcoming). Please contact Abe Falcone and Michael Stroh at unassociated@swift.psu.edu if you have any questions about the program or the analysis, or to simply to let us know that you've made use of these data.


Caution: For completeness, sources are listed if the "detection" exceeds 3 sigma. The significances and images are shown so you can make more stringent significance cuts, if desired.

1FGL J1746.7-3233

Field

Detected Excesses

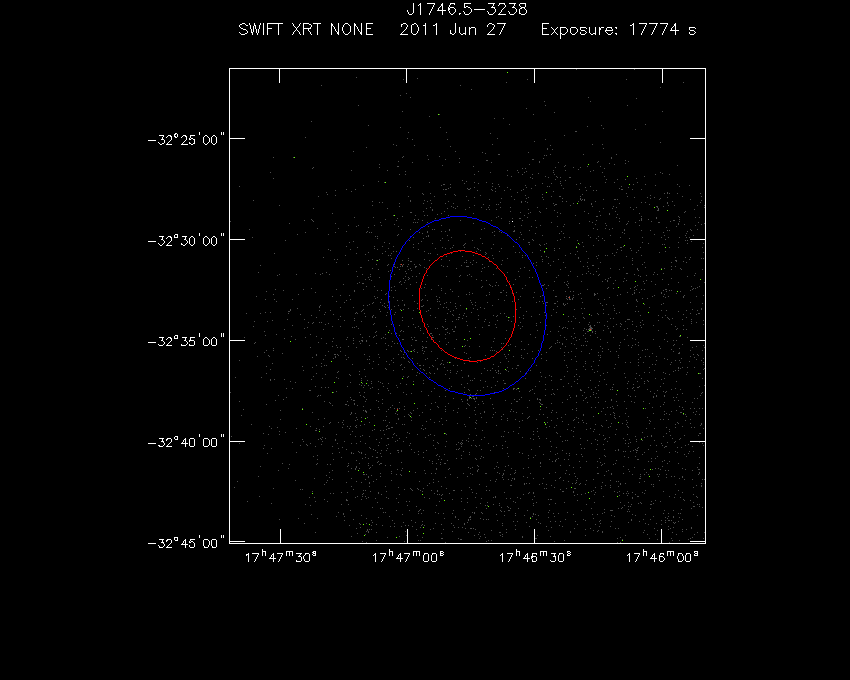

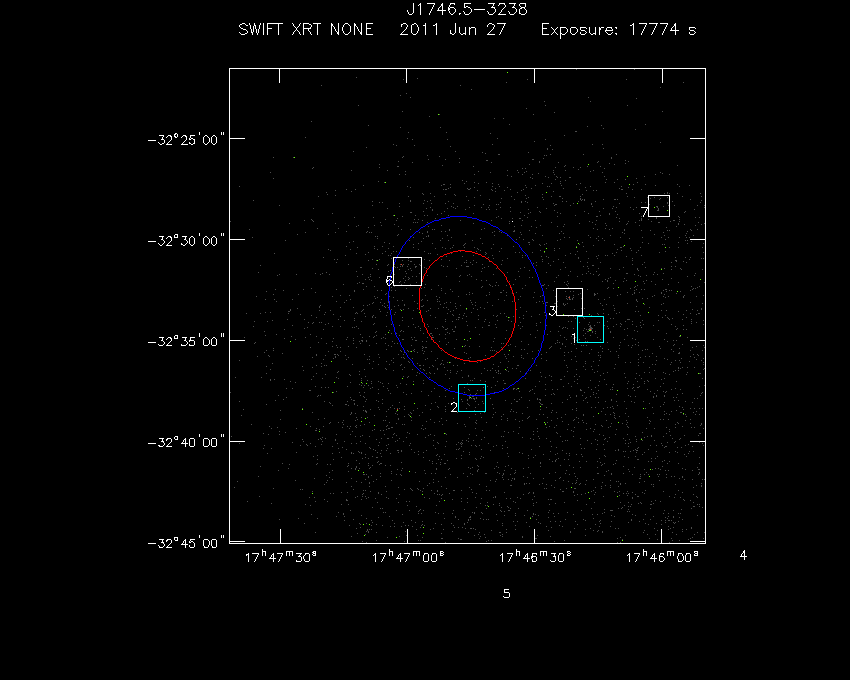

Swift-XRT image of the field for 1FGL J1746.7-3233 Swift-XRT detections in the field for 1FGL J1746.7-3233

Detected Excesses (SNR(Sosta) > 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 17 46 16.84 -32 34 27.42 4.22 (2.9 ± 0.6) x 10-3 60 5.353 5.221
2 17 46 44.68 -32 37 53.07 4.38 (2.2 ± 0.5) x 10-3 56 4.420 4.567
3 17 46 21.74 -32 33 06.28 4.32 (1.6 ± 0.4) x 10-3 59 3.796 3.679
4 17 45 37.90 -32 45 26.58 4.69 (1.6 ± 0.4) x 10-3 28 3.636 3.679
5 17 46 33.38 -32 47 19.86 4.33 (1.5 ± 0.4) x 10-3 38 4.275 3.613
6 17 46 59.93 -32 31 34.59 4.18 (1.3 ± 0.4) x 10-3 72 3.923 3.125

Rejected Excesses (Due to Overlaps or SNR(Sosta) < 3.0)

# R.A. (J2000) Dec. (J2000) Pos. Error (") Rate (cts/s) Counts SNR (Detect) SNR (Sosta)
1 17 46 00.59 -32 28 20.60 4.48 (1.0 ± 0.3) x 10-3 34 3.171 2.927
2 17 47 02.97 -32 38 37.05 4.37 (1.0 ± 0.4) x 10-3 42 2.898 2.838
3 17 47 10.90 -32 37 14.01 4.47 (1.0 ± 0.4) x 10-3 46 3.405 2.783
4 17 46 18.92 -32 28 07.12 4.74 (9 ± 3) x 10-4 26 2.847 2.778
5 17 47 17.08 -32 35 45.74 4.67 (8 ± 3) x 10-4 33 2.583 2.591
6 17 47 09.88 -32 44 17.44 4.63 (6 ± 3) x 10-4 30 2.477 2.042

X-Ray and Gamma Ray Catalogs

More Catalogs

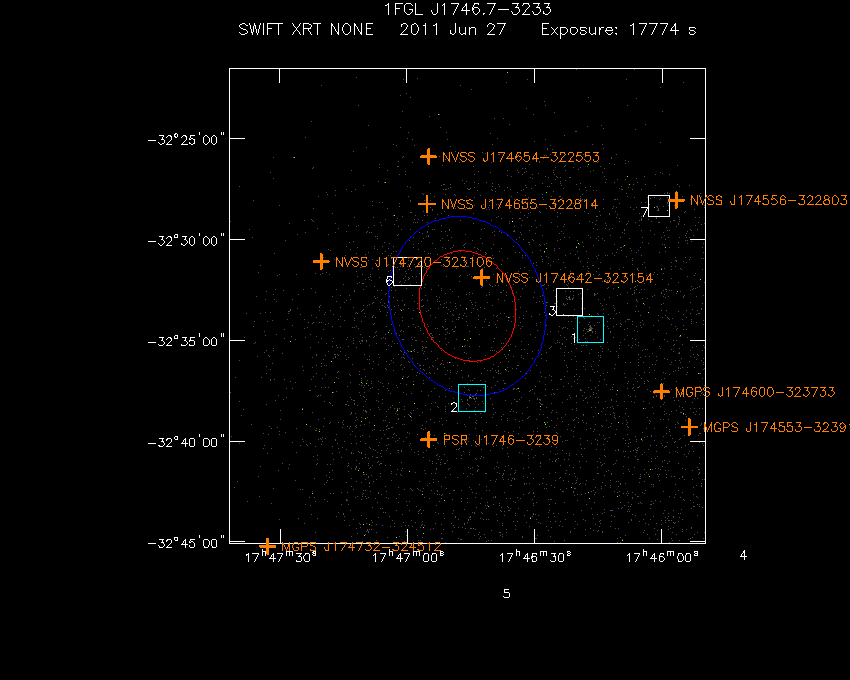

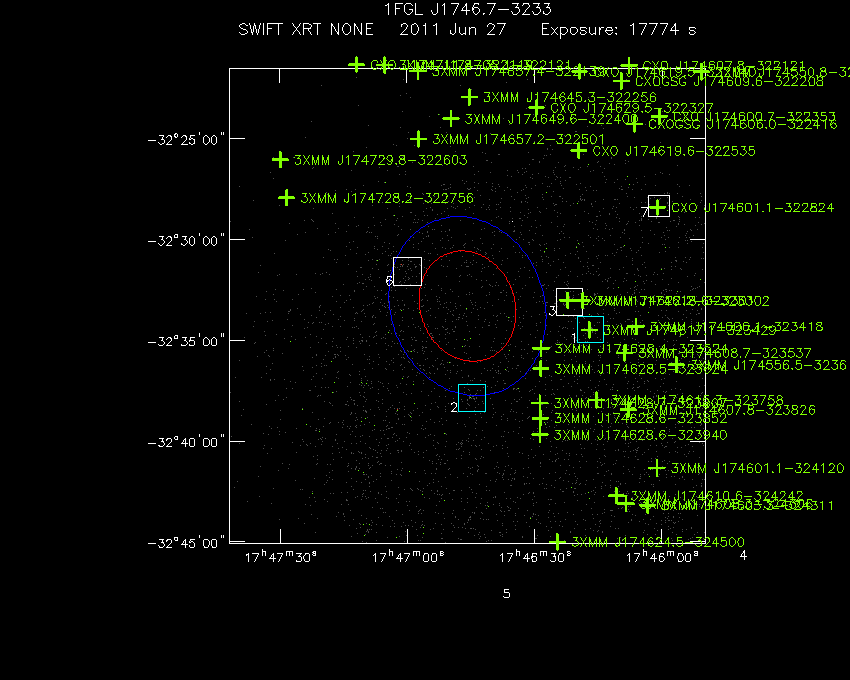

Swift-XRT image with known X-ray and gamma ray sources for 1FGL J1746.7-3233 Swift-XRT image with known radio, optical and UV sources for 1FGL J1746.7-3233


No known X-ray or gamma ray sources found.

Known Radio, Optical and UV Sources

# Source Name R.A. (J2000) Dec. (J2000) Offset (') Database Table
MGPS J174642-323156 17 46 42.31 -32 31 55.92 1.57 MGPS2
1 NVSS J174642-323154 17 46 42.41 -32 31 54.12 1.58 NVSS
2 HD 318345 17 46 28.82 -32 32 03.84 3.79 HDEC
3 HD 318344 17 46 54.72 -32 29 48.84 3.97 HDEC
4 HD 318347 17 46 45.24 -32 37 51.96 4.56 HDEC
PPM 749061 17 46 45.24 -32 37 51.96 4.56 PPM
318347 17 46 45.19 -32 37 53.04 4.57 WACKERLING
MGPS J174655-322816 17 46 55.20 -32 28 15.96 5.41 MGPS2
5 NVSS J174655-322814 17 46 55.30 -32 28 14.88 5.45 NVSS
6 CD-3213311 17 46 45.82 -32 27 21.60 5.95 ACRS
PPM 296780 17 46 45.79 -32 27 21.24 5.96 PPM
SAO 209244 17 46 45.84 -32 27 21.24 5.96 SAO
7 NVSS J174720-323106 17 47 20.21 -32 31 05.88 7.58 NVSS
8 NVSS J174654-322553 17 46 54.91 -32 25 54.12 7.67 NVSS
9 HIP 87030 17 46 57.36 -32 24 51.48 8.80 HIPPARCOS
PPM 296784 17 46 57.38 -32 24 51.48 8.80 PPM
CD-3213318 17 46 57.41 -32 24 51.48 8.81 ACRS
HD 161434 17 46 57.50 -32 24 50.40 8.82 HIC
SAO 209247 17 46 57.55 -32 24 50.04 8.83 SAO
10 HD 318343 17 47 09.65 -32 25 39.00 9.17 HDEC
11 HD 318346 17 45 58.13 -32 36 09.00 10.43 HDEC
12 MGPS J174600-323733 17 46 00.10 -32 37 32.88 10.51 MGPS2
13 NVSS J174556-322803 17 45 56.71 -32 28 03.00 11.60 NVSS
14 HIP 86953 17 46 06.26 -32 24 13.32 12.33 HIPPARCOS
HD 161275 17 46 06.34 -32 24 12.60 12.33 HIC
15 HD 318342 17 47 41.81 -32 29 36.24 12.38 HDEC
16 MGPS J174553-323917 17 45 53.50 -32 39 18.00 12.52 MGPS2
17 MGPS J174732-324512 17 47 32.90 -32 45 12.96 15.50 MGPS2
18 HD 318333 17 45 50.64 -32 22 23.52 15.96 HDEC
